Pendant control station PF39030002 CHARLIE TER

€81.51

pcs

Hose-end fitting 1/2'' x 11mm brass

€3.61

pcs

Washer metal rubber 1/4''

€0.27

pcs

Gasket AF CHEMACID DN25 PN10 × 3 mm


Availability: on sale

Dispatched within: 2-5 business days

Gross price: €4.02

incl. 23% TAX, excl. shipping costs

Regular price:

4.02

Net price: €3.27

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 11528B

Description

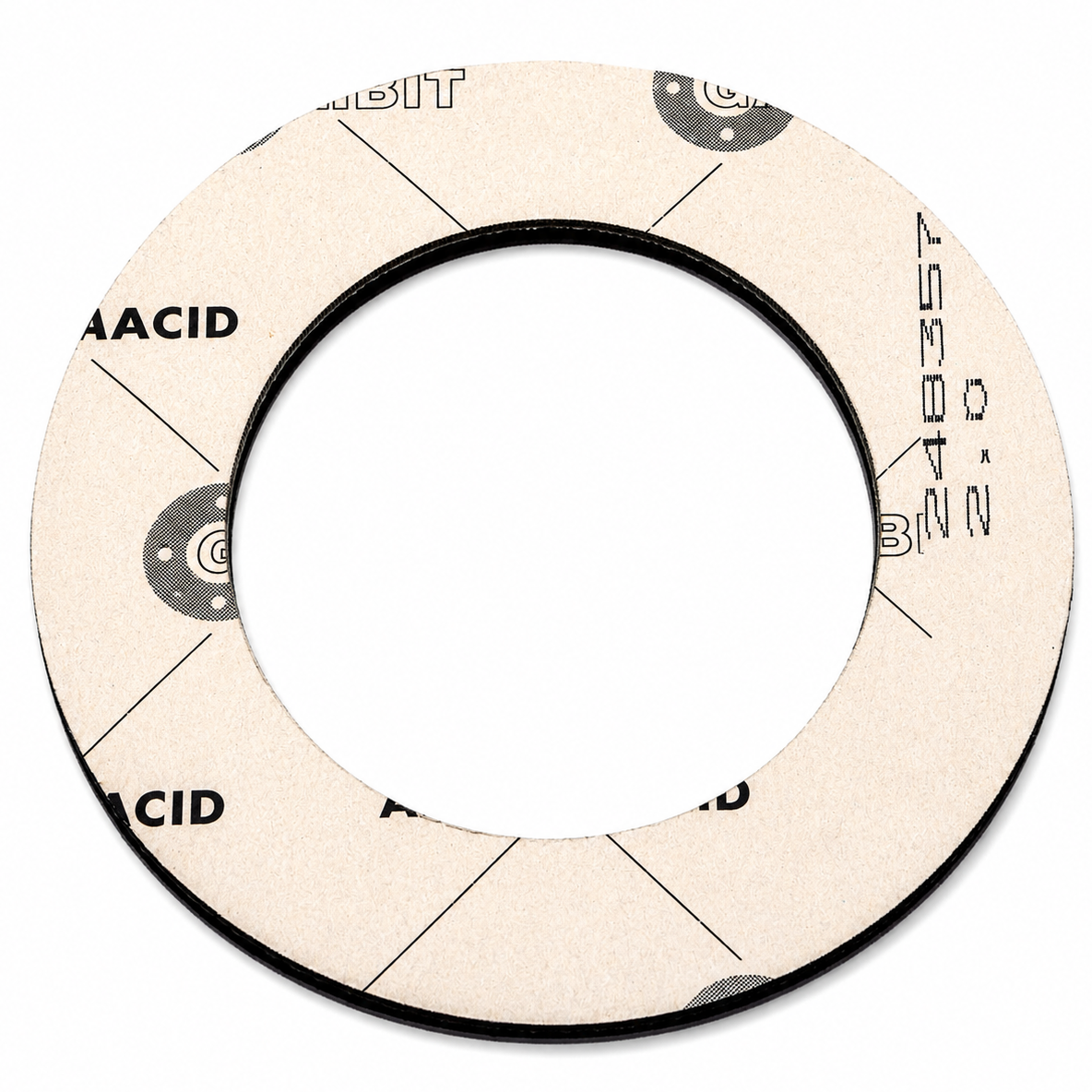

Gasket AF CHEMACID DN25 PN10 × 3 mm

Size: DN25
Thickness: 3 mm
Pressure rating: PN10
Material: AF CHEMACID
Applications: industrial installations, chemical industry, acids, alkalis

Custom-made gaskets available on request.

Information

GAMBIT AF-CHEMACID is a gasket sheet recommended for acids, alkalis, and chemical industry applications.

Maximum continuous operating temperature: 150°C
Maximum working pressure: 4 MPa

Recommended media

Recommended for: acids, alkalis, ethyl alcohol, methyl alcohol, ammonia, gasoline, dry chlorine, ethane, Freon 11 & 12, Freon 22, ethylene glycol, nitric acid 20%, nitric acid 40%, phosphoric acid, formic acid, acetic acid, sulphuric acid 20%, fuming sulphuric acid, sulphuric acid 65%, hydrochloric acid 20%, hydrochloric acid 36%, soap, potassium permanganate, kerosene, mineral hydraulic oil, silicone oil, air, water, seawater, ammonium hydroxide, potassium hydroxide, sodium hydroxide, calcium hydroxide.

Test under operating conditions before use with: acetone, chloroform, cyclohexanone, phenol, ethyl acetate, phosphate ester hydraulic oil, trichloroethylene.

Do not use with: aniline, benzene, wet chlorine.

Standard sheet sizes

Sheet size: 1500 × 1500 mm
Thicknesses: 0.3, 0.5, 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0 mm

Custom gasket cutting

Available according to:

EN 1514-1
EN 12560-1
ASME B16.20
DIN 2690
Customer technical drawings
TG flat gaskets for tongue-and-groove flanges (PN-86/H-74374/03)
SR flat gaskets for male-and-female flanges (PN-86/H-74374/04)
IBC flat gaskets for raised-face flanges (PN-86/H-74374/02)
Large segmented gaskets (puzzle type)
Lead time: 2–5 days

How to install the gasket

Check that the gasket is the correct size and material.
Inspect the gasket for damage.
Check that the flanges are not distorted.
Clean the flange faces and fastening components (bolts, nuts, and washers).
Align the flanges and bolt holes.
Carefully insert and centre the gasket between the flanges.
Do not use sealing compounds.
Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

We offer a wide range of gaskets and O-rings. If you are looking for a different material or size that is not listed in our store, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.

Learn more about gaskets here >>
