Gasket KLINGERSIL C-4300 DN300 PN10

Uszczelka-DN80-PN10-40-KLINGERSIL-C-4300--300-stop.-C-kolnierzowa-plaska-IBC-bez-otworow-DIN-28091-2-C4300.png

Availability: on sale

Dispatched within: 4-10 business days

Gross price: €21.05

incl. 23% TAX, excl. shipping costs

Regular price:

21.05

Net price: €17.11

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 11610B

Description

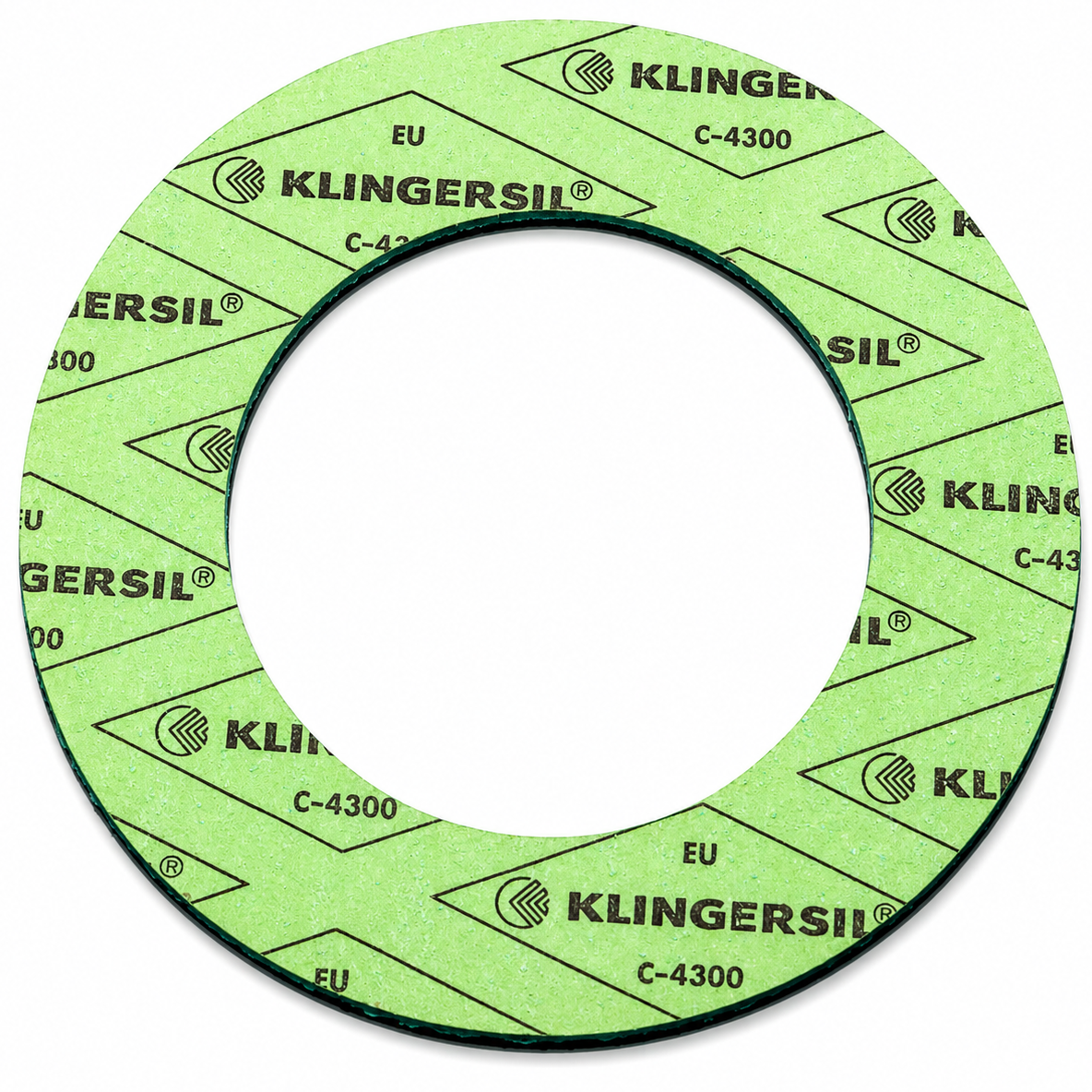

Gasket KLINGERSIL C-4300 DN300 PN10

Size: DN300
Pressure rating: PN10
Material: KLINGERSIL C-4300
Maximum operating temperature: +300°C
Suitable media: hot water, oils, steam, hydrocarbons, and chemical compounds such as methyl alcohol, ammonia, benzene, gasoline, wet chlorine, ethane, ethylene, Freon 12, Freon 22, ethylene glycol

Information

KLINGERSIL C-4300 gasket is a universal industrial sealing material. Its composition provides excellent compression resistance, while the gasket sheet features a low-adhesion surface, making installation and removal easier.

Recommended media

Recommended for: hot water, oils, steam, hydrocarbons, methyl alcohol, ammonia, benzene, gasoline, wet chlorine, ethane, ethylene, Freon 12, Freon 22, ethylene glycol.

Do not use with: aniline, cyclohexane, phenol, nitric acid (20%).

Test under operating conditions before use with: acetone, dry chlorine, chloroform, cresol.

Standard sheet sizes

Sheet sizes: 1000 × 1500 mm, 2000 × 1500 mm
Thicknesses: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Manufactured according to: DIN 2690 / DIN EN 1514-1
Low-adhesion surface

Custom gasket cutting

Available according to:

EN 1514-1
EN 12560-1
ASME B16.20
DIN 2690
Customer technical drawings
TG flat gaskets for tongue-and-groove flanges (PN-86/H-74374/03)
SR flat gaskets for male-and-female flanges (PN-86/H-74374/04)
IBC flat gaskets for raised-face flanges (PN-86/H-74374/02)
Full dimensional range, including custom shapes
Large segmented gaskets (puzzle type)
Lead time: 2–5 days

How to install the gasket

Check that the gasket is the correct size and material.
Inspect the gasket for damage.
Check that the flanges are not distorted.
Clean the flange faces and fastening components (bolts, nuts, and washers).
Align the flanges and bolt holes.
Carefully insert and centre the gasket between the flanges.
Do not use sealing compounds.
Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

If you are unsure which gasket to choose, please contact us. Call +48 63 261 42 02 for technical advice.

We offer a wide range of gaskets and O-rings. If you are looking for a different material or size that is not listed in our store, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.

Learn more about gaskets here >>
