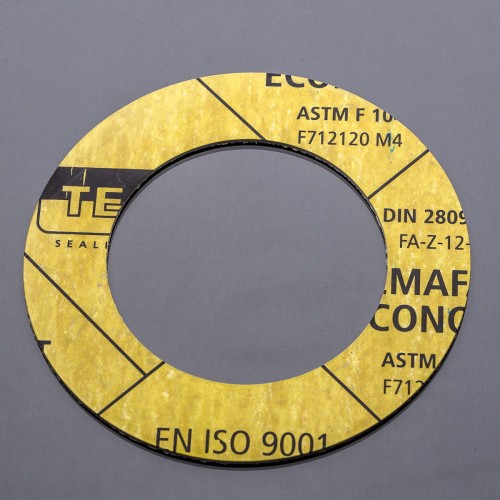

Gasket DN20 PN16 TEMAFAST ECONOMY

Availability: on sale

Dispatched within: 24 hours

Gross price: €0.47

incl. 23% TAX, excl. shipping costs

Regular price:

0.47

Net price: €0.39

excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 10740BL

Description

Gasket DN20 PN16 TEMAFAST ECONOMY

size: DN20
pressure rating: PN16
thickness: 2 mm
material: TEMAFAST asbestos-free. The sheet is manufactured from a blend of organic fibers bonded with NBR/SBR rubber according to DIN 28091-2, ASTM F104.
maximum short-term operating temperature: 210 °C
maximum continuous operating temperature: 140 °C (with steam: 120 °C)
media: cold water, hot water, steam, alcohol, salt solutions, weak acids and bases
applications: the TEMAFAST gasket is used in industrial installations. It offers wide applicability in industries with low operational parameters.

Other Name: Gasket DN20 PN16 TEMAFAST Flat Asbestos-Free Yellow IBC Without Holes

Information

TEMAFAST Gasket asbestos-free - the gasket is made from a blend of organic fibers bonded with NBR/SBR rubber according to DIN 28091-2, ASTM F104.

maximum short-term operating temperature: 210 °C
maximum continuous operating temperature: 140 °C
maximum continuous operating temperature with steam: 120 °C
available on request: with or without holes (IBC)
media: cold water, hot water, steam, alcohol, salt solutions, weak acids and bases

applications: the TEMAFAST gasket is used in industrial installations. It offers extensive applicability in various industries under low operational parameters.

Applications of TEMAFAST Gaskets

TEMAFAST gaskets, thanks to their resistance to chemical substances, temperature, and pressure are utilized in various industries, including chemical industry, energy industry, food industry, automotive industry, petrochemical industry, HVAC systems, household appliances. Examples of devices using TEMAFAST gaskets, chemical reactors, pressure vessels, steam boilers, turbines, packaging machines, food processing machines, internal combustion engines, automatic transmissions, transfer pumps, ball valves and butterfly valves, refrigerators, dishwashers and washing machines ,air conditioners and fans, heat exchangers, assembly machines

Custom Manufacturing gaskets can be made to order:

According to standards: EN1514-1, EN 12560-1, ASME B16.20, DIN 2690
According to customer technical documentation
TG Gaskets – flat gaskets for flanges with protrusions and grooves (PN-86/H-74374/03)
SR Gaskets – flat gaskets for flanges with lips and recesses (PN-86/H-74374/04)
IBC Gaskets – flat gaskets for flanges with thickened edges (PN-86/H-74374/02)
Full dimensional range, including gaskets in any shapes
Large segmented gaskets (interlocking design)
Lead Time: 2-5 days

How to Install the Gasket:

Check that the gasket is the correct size and made from the appropriate material.
Inspect the gasket for any damage.
Ensure that the flanges are not warped.
Remove any impurities from the surfaces of the flanges and fastening elements such as screws, nuts, and washers.
Align the flanges and bolt holes.
Carefully insert the gasket between the flanges, centering it properly.
Do not use sealing compounds.
Connect the flanges, ensuring the gasket is not excessively compressed or damaged.

Need Help Choosing the Right Seal?Call us for consultation at 632614202.
