Teflon PTFE gasket DN50 PN10
Regular price:
Regular price:
product unavailable
add to wish list
Description

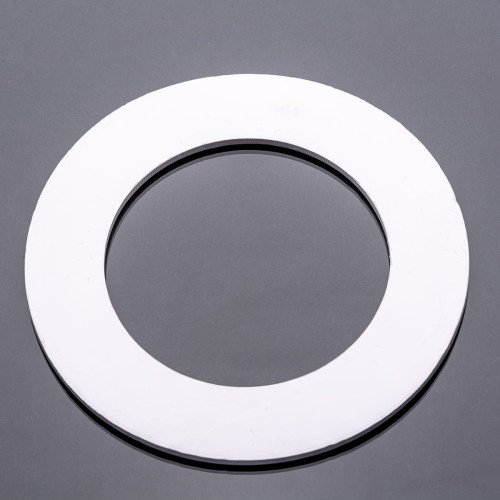

Teflon PTFE gasket DN50 PN10
- size: DN50 (61x107x2mm)
- pressure: PN10
- material: teflon PTFE
- maximum temp. of temporary operation: 315*C
- maximum temp. of continuous operation: -200 +260*C
- high thermal resistance
- lack of moisture absorption
- non-combustible asbestos-free material
Other name: Teflon PTFE gasket DN50 PN10 customized with or without IBC openings white pad high thermal resistance lack of moisture absorption
Information
Teflon PTFE gasket DN50 PN10 - offers many interesting chemical and thermal properties not available for other thermoplastics. They include, among others, high chemical resistance, which is achieved due to high binding energy for atoms of carbon and fluorine. It maintains chemical resistance even at higher temperatures.
Except for the applications in the food and chemical industry, due to the insulating power of high frequencies, it is suitable for electrotechnical applications.
- it is almost insensitive to the action of solvents. Fluorine and some of its compounds are the exceptions.
PTFE seals are used in harsh and demanding environments.
Properties:
- maximum temp. of temporary operation: 315*C
- maximum temp. of continuous operation: -200 +260*C
- high thermal resistance
- lack of moisture absorption
- agent: great resistance to chemicals, cold water, hot water, steam, alcohol, salt solutions, weak acids, and bases
Made on request: with or without IBC openings
Application: industrial plants, hydraulics, chemical industry, food industry. PTFE gaskets are used in harsh and demanding environments.
Possibility to cut the plate upon customer order:
- acc. to standard EN1514-1, EN 12560-1, ASME B16.20, DIN 2690
- acc. to manufacturer’s technical documentation
- TG gaskets – flat gaskets for flanges with splines and grooves PN-86/H-74374/03
- SR gaskets – flat gaskets for flanges with splines and keys PN-86/H-74374/04
- IBC gaskets – flat gaskets for flanges with rough rebates PN-86/H-74374/02
- whole dimensional range, including gaskets of any shape
- large-sized segmental gaskets (puzzle joining)
More about gaskets you may find here>>
We offer a wide range of gaskets. If you have any questions, please contact us. Call us at 63/2614202 or send an inquiry to the e-mail address: biuro@polberis.pl, we will prepare a price offer for you.
If you want to know how much you will pay for transport to your country, write us an email: biuro@polberis.pl. We will send you an offer. If you have a European VAT number and don't want to pay TAX, write to us for an offer. Please free feel to contact us for any information
