Gasket AF-200G GAMBIT DN50 PN10

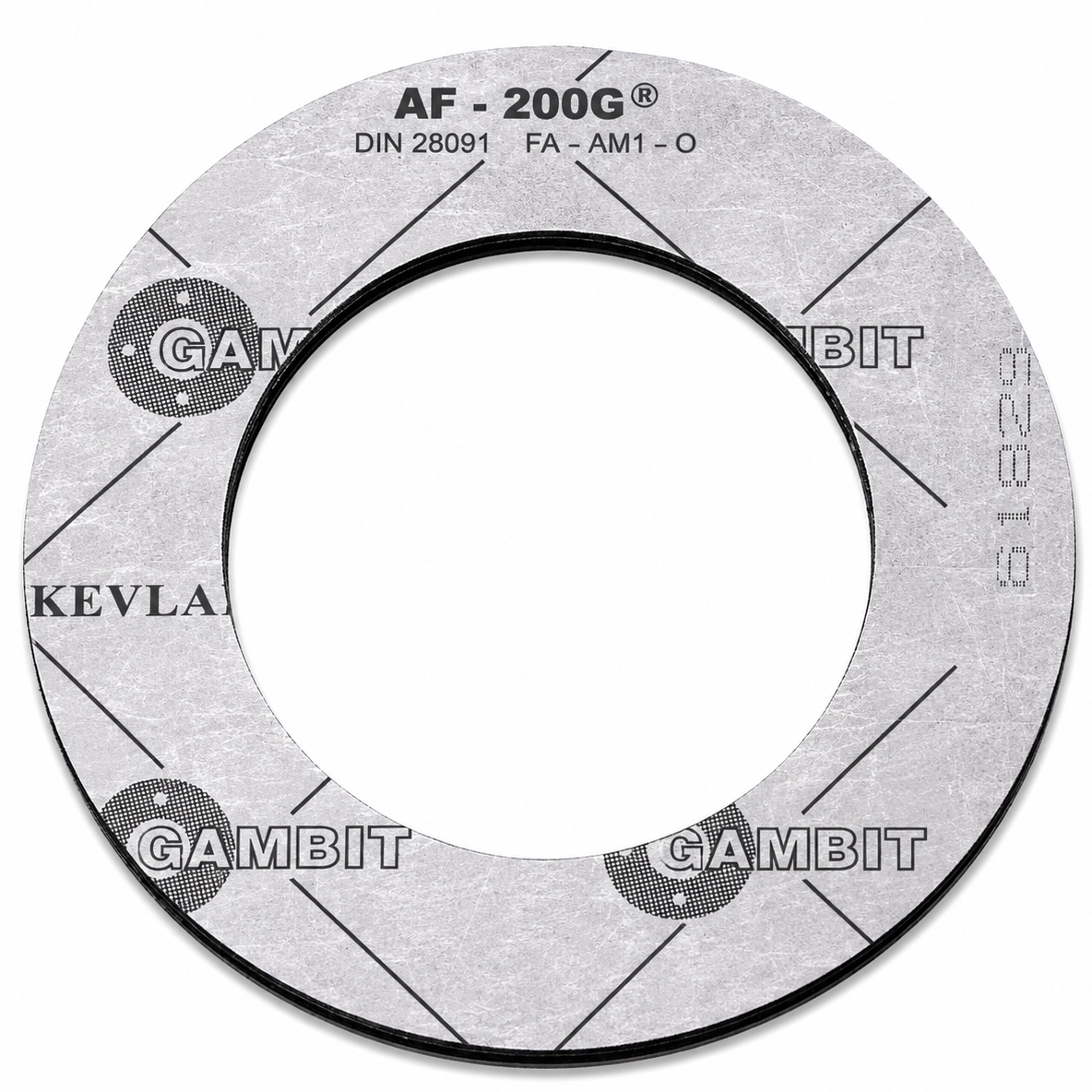

Uszczelka DN50 PN10 x3mm AF-200G GAMBIT +380 stop. C uszczelka płaska AF200G.png

Availability: on sale

Dispatched within: 2-5 business days

Gross price: €4.09

incl. 23% TAX, excl. shipping costs

Regular price:

4.09

Net price: €3.33

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 10740AE

Description

Gasket AF-200G GAMBIT DN50 PN10

Size: DN50
Pressure rating: PN10
Material: AF-200G GAMBIT
Maximum intermittent operating temperature: 380°C
Maximum continuous operating temperature: 320°C
Maximum continuous operating temperature in steam: 250°C
Suitable media: steam, water, fuels, oils
Applications: industrial installations, hydraulic systems. Recommended for steam systems. Resistant to water, oils, and fuels.

Information

GAMBIT AF-200G is a flexible oil-resistant gasket material, primarily recommended for steam applications. It is also resistant to water, fuels, and oils.

Maximum continuous operating temperature: 320°C
Maximum continuous operating temperature in steam: 250°C
Maximum working pressure: 8 MPa

Recommended media

Recommended for: steam, water, fuels, oils, ethyl alcohol, methyl alcohol, ammonia, benzene, gasoline, dry chlorine, ethane, Freon 11 & 12, ethylene glycol, phosphoric acid, formic acid, acetic acid, sulphuric acid (20%), hydrochloric acid (20%), soap, kerosene, mineral hydraulic oil, silicone oil, air, trichloroethylene, seawater, ammonium hydroxide, potassium hydroxide, sodium hydroxide, calcium hydroxide.

Test under operating conditions before use with: acetone, wet chlorine, chloroform, cyclohexanone, Freon 22, sulphuric acid (65%), hydrochloric acid (36%), potassium permanganate, ethyl acetate, phosphate ester hydraulic oil.

Do not use with: aniline, phenol, nitric acid (20%), nitric acid (40%), fuming sulphuric acid.

Standard sheet sizes

Sheet size: 1500 × 1500 mm
Thicknesses: 0.3 mm, 0.5 mm, 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm

Custom gasket cutting

Available according to:

EN 1514-1
EN 12560-1
ASME B16.20
DIN 2690
Customer technical drawings
TG flat gaskets for tongue-and-groove flanges (PN-86/H-74374/03)
SR flat gaskets for male-and-female flanges (PN-86/H-74374/04)
IBC flat gaskets for raised-face flanges (PN-86/H-74374/02)
Full dimensional range, including custom shapes
Large segmented gaskets (puzzle type)
Lead time: 2–5 days

How to install the gasket

Check that the gasket is the correct size and material.
Inspect the gasket for damage.
Check that the flanges are not distorted.
Clean the flange faces and fastening components (bolts, nuts, and washers).
Align the flanges and bolt holes.
Carefully insert and centre the gasket between the flanges.
Do not use sealing compounds.
Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

If you are unsure which gasket to choose, please contact us. Call +48 63 261 42 02 for technical advice.

We offer a wide range of gaskets and O-rings. If you are looking for a different material or size that is not listed in our store, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.

Learn more about gaskets here >>
