Gasket TEMAFAST Special DN80 PN10–40

Availability: on sale
Dispatched within: 24 hours
Gross price: €7.11
incl. 23% TAX, excl. shipping costs

Regular price:

7.11
Net price: €5.78
excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list
Pin It

Description

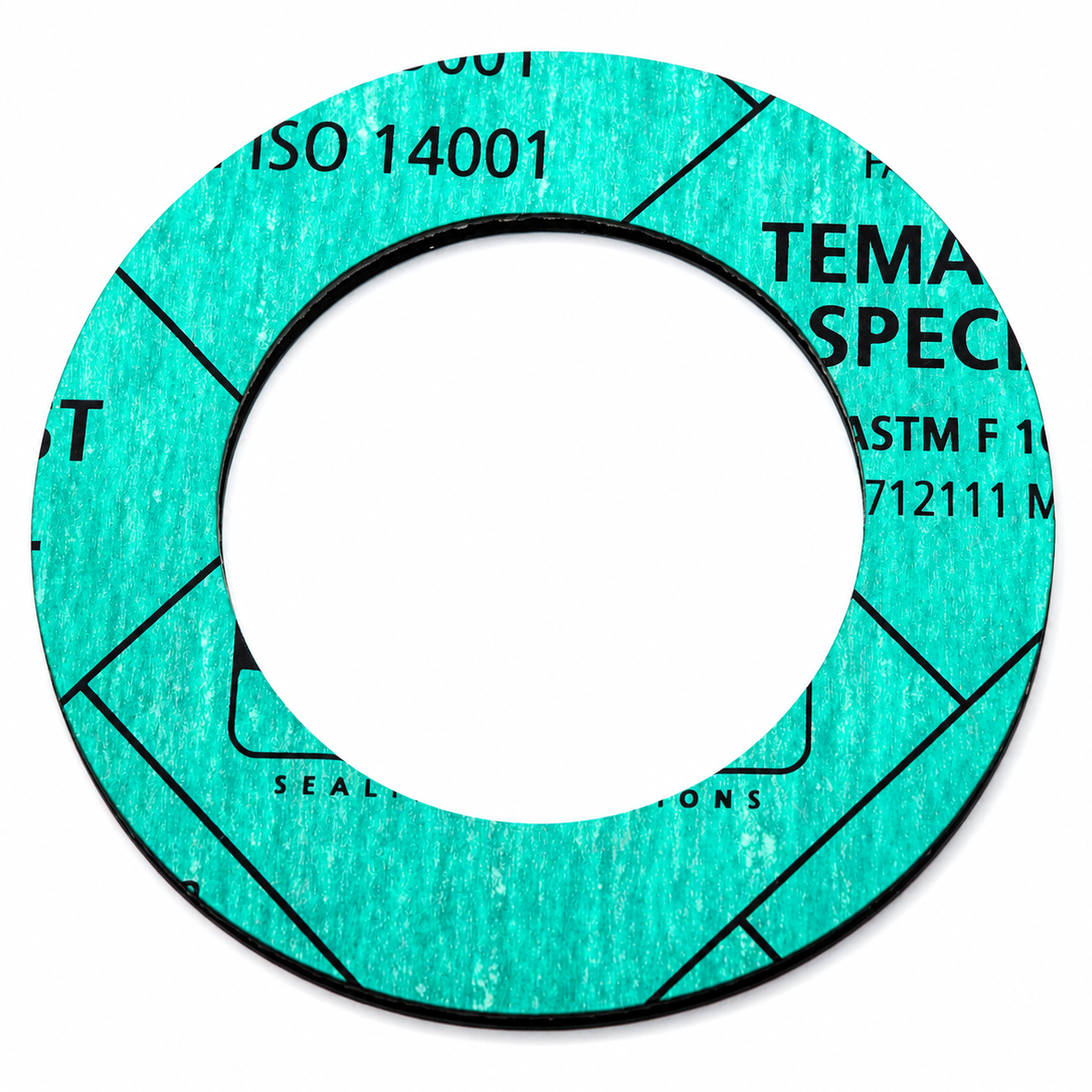

Gasket TEMAFAST Special DN80 PN10–40

  • Size: DN80

  • Pressure rating: PN10–40

  • Material: TEMAFAST Special

  • Grade: FA-MA-1-0

  • Maximum intermittent operating temperature: 250°C

  • Maximum continuous operating temperature: 220°C

  • Maximum continuous operating temperature with steam: 180°C

  • Applications: universal gasket sheet for industrial use under low and medium operating conditions

Information

TEMAFAST Special gasket is a universal gasket sheet designed for a wide range of industrial applications operating under low and medium pressure and temperature conditions.

  • Maximum intermittent operating temperature: 250°C

  • Maximum continuous operating temperature: 220°C

  • Maximum continuous operating temperature with steam: 180°C

  • Maximum working pressure: 6 MPa

  • Colour: Light green

Designation according to DIN 28091-2: FA-MA-1-0

Designation according to ASTM F104: F712111M4

Custom gasket cutting

Available according to:

  • EN 1514-1

  • EN 12560-1

  • ASME B16.20

  • DIN 2690

  • Customer technical drawings

  • TG flat gaskets for tongue-and-groove flanges (PN-86/H-74374/03)

  • SR flat gaskets for male-and-female flanges (PN-86/H-74374/04)

  • IBC flat gaskets for raised-face flanges (PN-86/H-74374/02)

  • Full dimensional range, including custom shapes

  • Large segmented gaskets (puzzle type)

  • Lead time: 2–5 days

How to install the gasket

  • Check that the gasket is the correct size and material.

  • Inspect the gasket for damage.

  • Check that the flanges are not distorted.

  • Clean the flange faces and fastening components (bolts, nuts, and washers).

  • Align the flanges and bolt holes.

  • Carefully insert and centre the gasket between the flanges.

  • Do not use sealing compounds.

  • Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

If you are unsure which gasket to choose, please contact us. Call +48 63 261 42 02 for technical advice.

We offer a wide range of gaskets and O-rings. If you are looking for a different material or size that is not listed in our store, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.

Learn more about gaskets here >>
