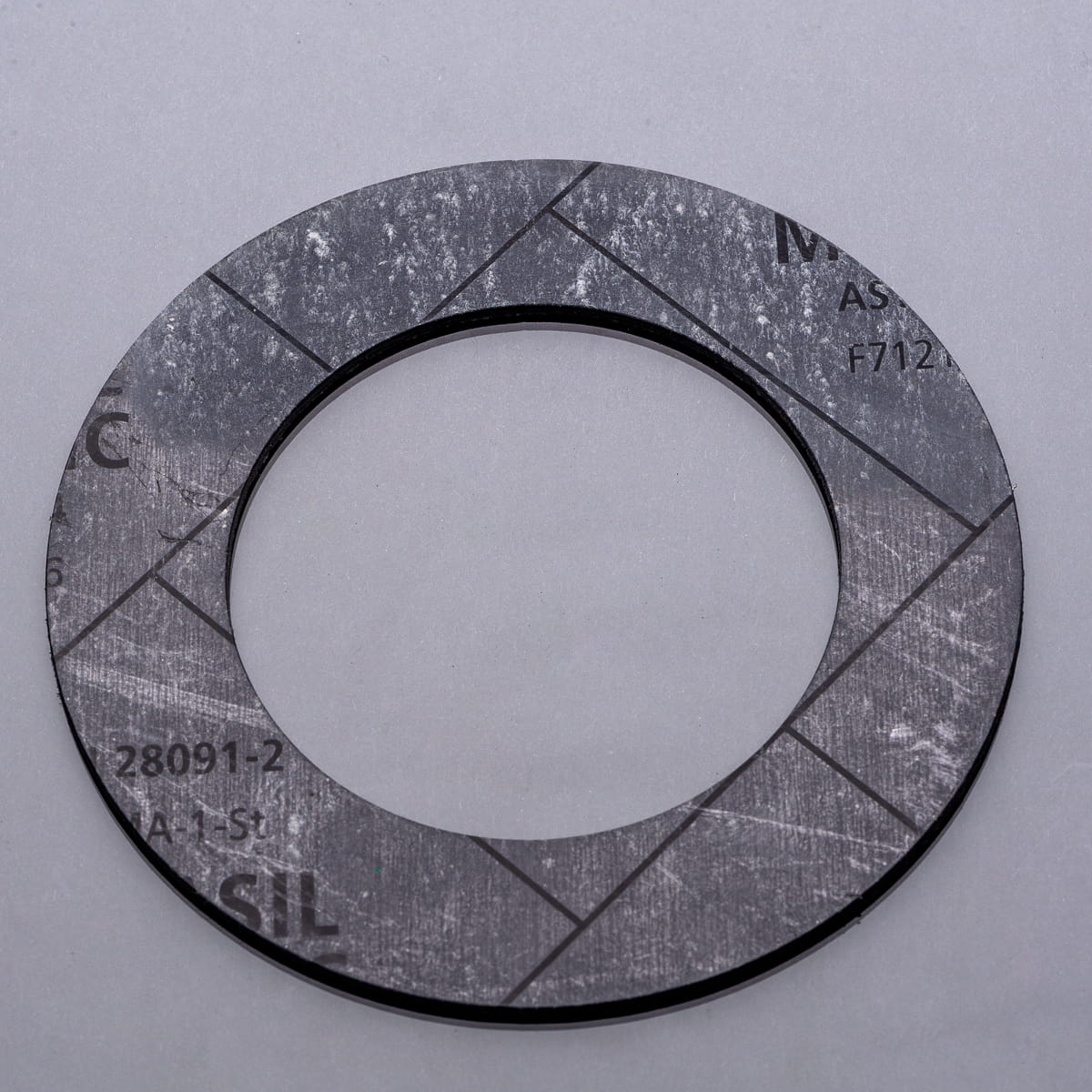

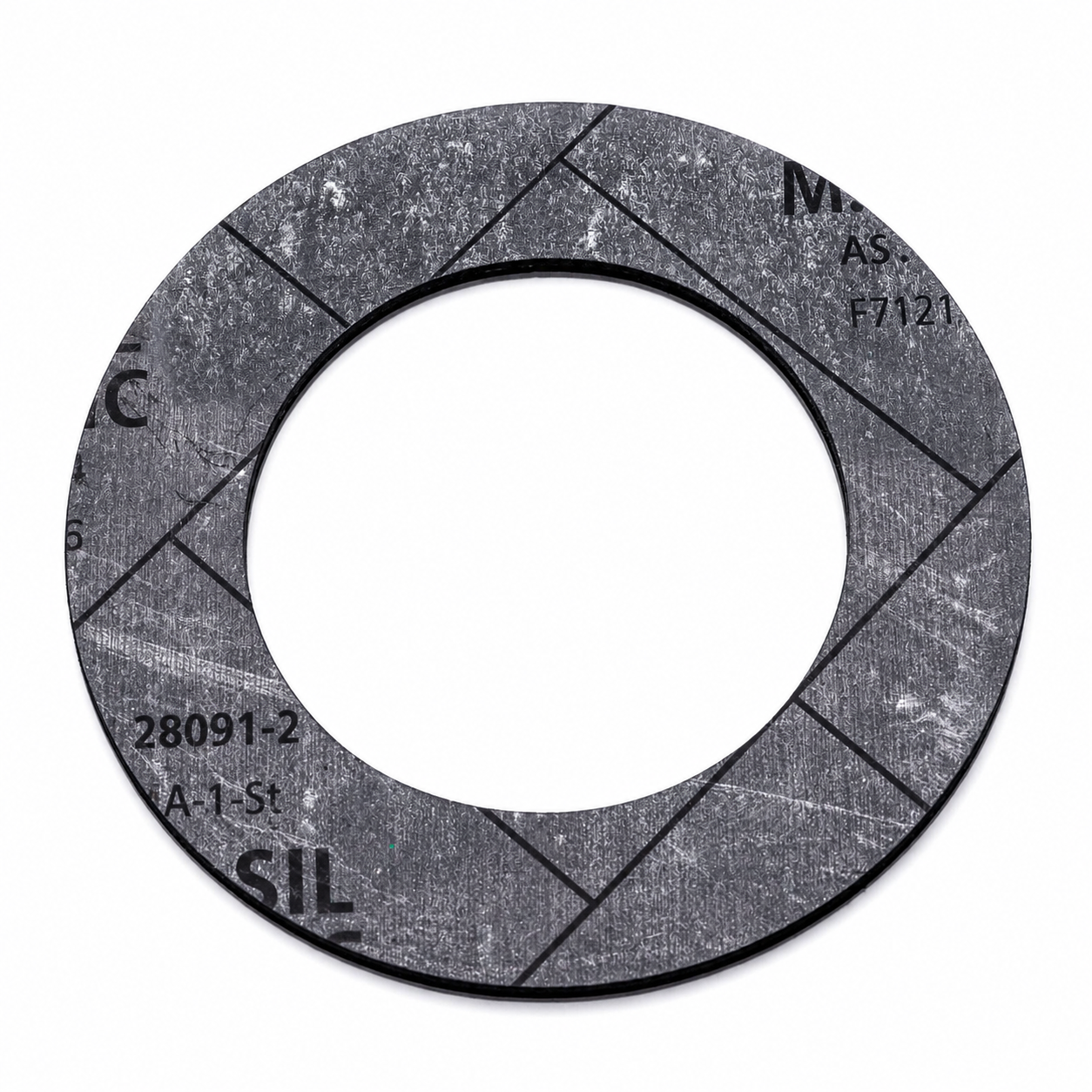

Gasket TEMASIL M DN80 PN10–40

Availability: on sale

Dispatched within: 24 hours

Gross price: €7.11

incl. 23% TAX, excl. shipping costs

Regular price:

7.11

Net price: €5.78

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 11618A

Description

Gasket TEMASIL M DN80 PN10–40

Size: DN80
Pressure rating: PN10–40
Material: TEMASIL M
Flat gasket without bolt holes
Maximum continuous operating temperature: +250°C
Maximum intermittent operating temperature: +400°C
Maximum operating temperature in steam: +200°C
Maximum working pressure: 12 MPa
Suitable media: water, steam, gas, oil, alcohol, gasoline, basic chemicals
Applications: industrial installations, petrochemical industry, oil industry, machinery, food processing, steam systems, chemical and processing industries

Information

TEMASIL M is a universal gasket sheet reinforced with a metal mesh. It is primarily intended for use in the petrochemical, chemical, food, and oil industries.

Maximum continuous operating temperature: +250°C
Maximum intermittent operating temperature: +400°C
Maximum operating temperature in steam: +200°C
Maximum working pressure: 12 MPa

Recommended media

Recommended for: oil, gasoline, kerosene, steam, water, alcohols, acetylene, ammonia, nitrogen, benzene, sugar, potassium cyanide, cyclohexanol, carbon dioxide, diethyl ether, ethylene, ammonium phosphide, butyl phthalate, natural gas, glycerine, ethylene glycol, dry chlorine, barium chloride, aluminium chloride, sodium chloride, dry hydrogen chloride, iso-octane, potassium iodide, xylene, boric acid, formic acid (10%), tartaric acid, mineral hydraulic oil, diesel fuel, engine oil, transformer oil, saturated steam, air, crude oil, copper sulphate, sodium sulphate, sodium hydrosulphide, turpentine, toluene, sodium carbonate, sodium hydrocarbons, calcium hydroxide.

Use according to operating conditions: acetone, carbon tetrachloride, cyclohexanone, chloroform, hydrochloric acid (20%), sodium hydroxide.

Not suitable for: phenol, methylene chloride, nitric acid (20%), sulphuric acid (65%).

Custom gasket cutting

Available according to:

EN 1514-1
EN 12560-1
ASME B16.20
DIN 2690
Customer technical drawings
TG flat gaskets for tongue-and-groove flanges (PN-86/H-74374/03)
SR flat gaskets for male-and-female flanges (PN-86/H-74374/04)
IBC flat gaskets for raised-face flanges (PN-86/H-74374/02)
Full dimensional range, including custom shapes
Large segmented gaskets (puzzle type)
Lead time: 2–5 days

How to install the gasket

Check that the gasket is the correct size and material.
Inspect the gasket for damage.
Check that the flanges are not distorted.
Clean the flange faces and fastening components (bolts, nuts, and washers).
Align the flanges and bolt holes.
Carefully insert and centre the gasket between the flanges.
Do not use sealing compounds.
Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

If you are unsure which gasket to choose, please contact us. Call +48 63 261 42 02 for technical advice.

We offer a wide range of gaskets and O-rings. If you are looking for a different material or size that is not listed in our store, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.
