Gasket TEMACARB DN80 PN10–40

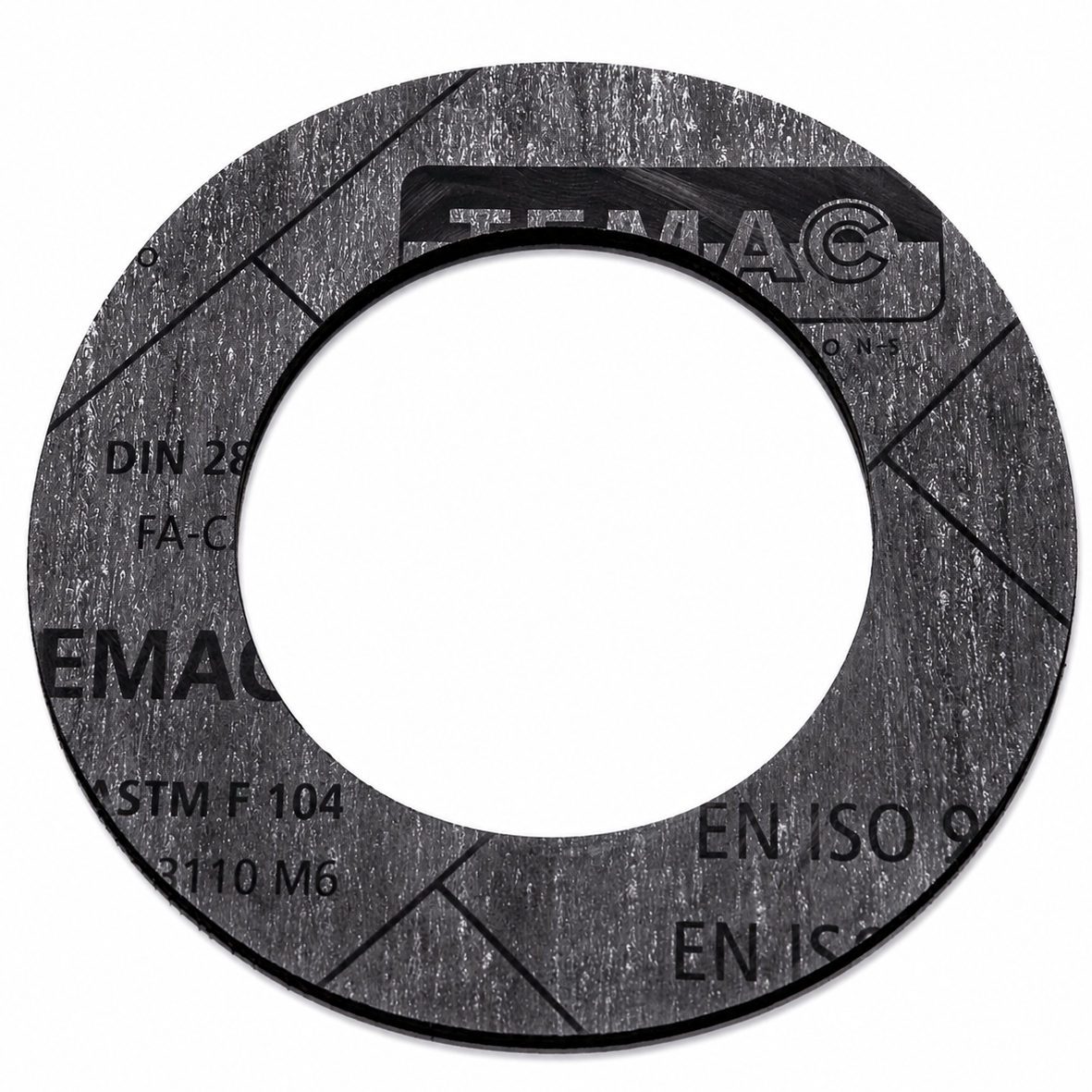

Uszczelka-DN80-PN10-40-TEMACARB-TEMAC--250-stop.-C-kolnierzowa-plaska-IBC-bez-otworow-DIN-28091-2.png

Availability: on sale

Dispatched within: 2-5 business days

Gross price: €7.71

incl. 23% TAX, excl. shipping costs

Regular price:

7.71

Net price: €6.27

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 11613A

Description

Gasket TEMACARB DN80 PN10–40

Size: DN80
Pressure rating: PN10–40
Material: TEMACARB (TEMAC)
Maximum intermittent operating temperature: 450°C
Maximum continuous operating temperature: 250°C
Maximum continuous operating temperature in steam: 250°C
Suitable media: superheated steam, oils, liquid fuels, hot water, alkaline media, coolants
Applications: installations with high operating requirements

Information

TEMACARB gasket is designed for steam and superheated steam installations. It is recommended for applications involving higher pressures and elevated temperatures.

Maximum intermittent operating temperature: 450°C
Maximum continuous operating temperature: 250°C
Maximum continuous operating temperature in steam: 250°C
Maximum working pressure: 10 MPa

Recommended media

Recommended for: steam, superheated steam, oils, liquid fuels, alkaline media, coolants, acetylene, ammonia, nitrogen, benzene, gasoline, sugar, potassium cyanide, cyclohexanol, carbon dioxide, diethyl ether, ethylene, ammonium phosphide, butyl phthalate, natural gas, glycerine, ethylene glycol, dry chlorine, barium chloride, aluminium chloride, sodium chloride, dry hydrogen chloride, iso-octane, potassium iodide, xylene, boric acid, formic acid (10%), tartaric acid, kerosene, mineral hydraulic oil, diesel fuel, engine oil, transformer oil, saturated steam, air, crude oil, copper sulphate, sodium sulphate, sodium hydrosulphide, turpentine, toluene, sodium carbonate, sodium hydrocarbons, water, calcium hydroxide.

Use according to operating conditions: acetone, cyclohexanone, carbon tetrachloride, chloroform, hydrochloric acid (20%), sodium hydroxide.

Not suitable for: phenol, methylene chloride, sulphuric acid (65%), nitric acid (20%).

Custom gasket cutting

Available according to:

EN 1514-1
EN 12560-1
ASME B16.20
DIN 2690
Customer technical drawings
TG flat gaskets for tongue-and-groove flanges (PN-86/H-74374/03)
SR flat gaskets for male-and-female flanges (PN-86/H-74374/04)
IBC flat gaskets for raised-face flanges (PN-86/H-74374/02)
Full dimensional range, including custom shapes
Large segmented gaskets (puzzle type)
Lead time: 2–5 days

How to install the gasket

Check that the gasket is the correct size and material.
Inspect the gasket for damage.
Check that the flanges are not distorted.
Clean the flange faces and fastening components (bolts, nuts, and washers).
Align the flanges and bolt holes.
Carefully insert and centre the gasket between the flanges.
Do not use sealing compounds.
Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

If you are unsure which gasket to choose, please contact us. Call +48 63 261 42 02 for technical advice.

We offer a wide range of gaskets and O-rings. If you are looking for a different material or size that is not listed in our store, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.
