Gasket AF-400 GAMBIT DN80 PN10–40

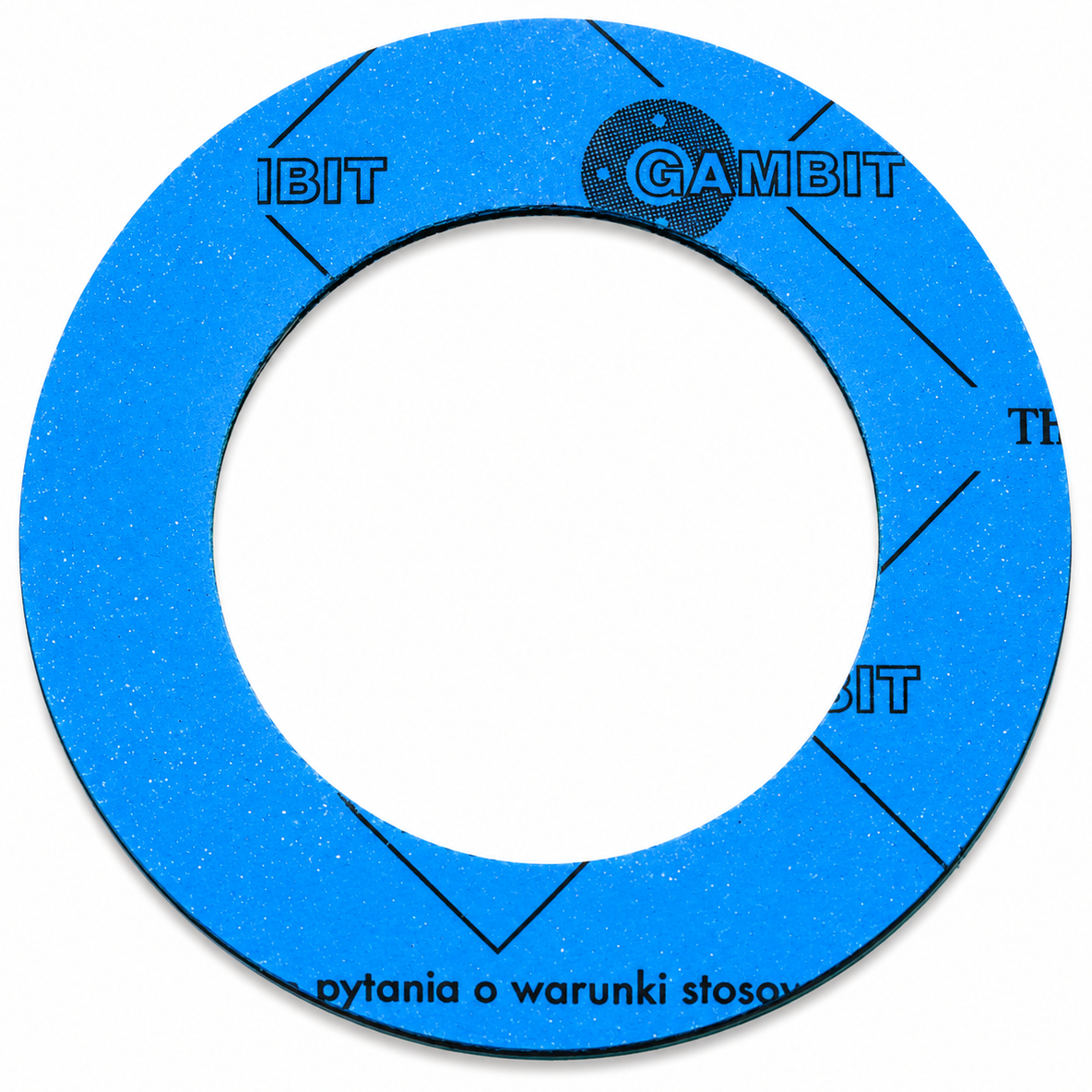

Uszczelka DN80 PN10-40 AF-400 GAMBIT +400 stop. C uszczelka płaska AF400.png

Availability: on sale

Dispatched within: 4-10 business days

Gross price: €7.71

incl. 23% TAX, excl. shipping costs

Regular price:

7.71

Net price: €6.27

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 11608A

Description

Gasket AF-400 GAMBIT DN80 PN10–40

Size: DN80
Pressure rating: PN10–40
Material: AF-400 GAMBIT
Maximum intermittent operating temperature: 400°C
Maximum continuous operating temperature: 350°C
Maximum continuous operating temperature in steam: 260°C
Suitable media: water, steam, oils, fuels, salt solutions

Information

AF-400 GAMBIT is a high-quality gasket sheet with a wide range of industrial applications. It is resistant to water, steam, oils, fuels, and salt solutions. It is commonly used in natural gas transmission systems.

Maximum intermittent operating temperature: 400°C
Maximum continuous operating temperature: 350°C
Maximum continuous operating temperature in steam: 260°C
Maximum working pressure: 12 MPa

Recommended media

Recommended for: water, steam, fuels, natural gas, salt solutions, ethyl alcohol, methyl alcohol, ammonia, benzene, gasoline, dry chlorine, ethane, Freon 11 & 12, Freon 22, ethylene glycol, phosphoric acid, formic acid, acetic acid, sulphuric acid (20%), fuming sulphuric acid, hydrochloric acid (20%), soap, potassium permanganate, kerosene, mineral hydraulic oil, silicone oil, air, trichloroethylene, seawater, ammonium hydroxide, potassium hydroxide, sodium hydroxide, calcium hydroxide.

Test under operating conditions before use with: acetone, wet chlorine, chloroform, cyclohexanone, phenol, nitric acid (20%), nitric acid (40%), sulphuric acid (65%), hydrochloric acid (36%), ethyl acetate, phosphate ester hydraulic oil.

Do not use with: aniline.

Standard sheet sizes

Sheet size: 1500 × 1500 mm
Thicknesses: 0.3 mm, 0.5 mm, 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm

Custom gasket cutting

Available according to:

EN 1514-1
EN 12560-1
ASME B16.20
DIN 2690
Customer technical drawings
TG flat gaskets for tongue-and-groove flanges (PN-86/H-74374/03)
SR flat gaskets for male-and-female flanges (PN-86/H-74374/04)
IBC flat gaskets for raised-face flanges (PN-86/H-74374/02)
Full dimensional range, including custom shapes
Large segmented gaskets (puzzle type)
Lead time: 2–5 days

How to install the gasket

Check that the gasket is the correct size and material.
Inspect the gasket for damage.
Check that the flanges are not distorted.
Clean the flange faces and fastening components (bolts, nuts, and washers).
Align the flanges and bolt holes.
Carefully insert and centre the gasket between the flanges.
Do not use sealing compounds.
Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

If you are unsure which gasket to choose, please contact us. Call +48 63 261 42 02 for technical advice.

We offer a wide range of gaskets and O-rings. If you are looking for a different material or size that is not listed in our store, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.
