Extension 1''x3/4'' galvanized cast iron reduction
Regular price:
Regular price:
product unavailable
add to wish list
Description

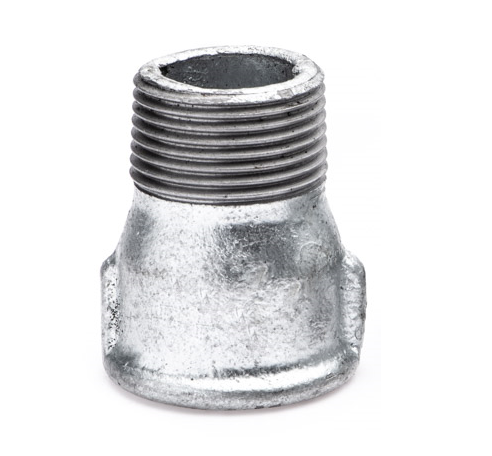

Extension 1''x3/4'' galvanized cast iron reduction
- internal thread: 1'' (thread diameter is 30.3 ÷ 30.8mm)
- external thread: 3/4'' (thread diameter is 26.1 ÷ 26.4mm)
- material: cast iron
- coating: zinc
- other symbol: 246 / M4
- application: water installations, industry, central heating

Other name: Extension 1''x3/4'' galvanized cast iron reduction adapter reduction socket internal and external threads standard EN10242 extension reduction
Information
Galvanized iron fittings are generally used in all industries and in central heating installations. Their main advantage is their price and general availability. They are used in installations with small requirements, for cold water and hot water.
Fittings are made of malleable cast iron. Their surface is protected by hot-dip galvanizing.
- Maximum operating pressure: 25 bar at operating temperatures from -20°C to 120°C
- Maximum working pressure: 20-25 bar at operating temperatures from -20°C to 300°C
Extension 1''x3/4'' galvanized cast iron reduction is made in accordance with EN10242
The surface is coated with hot-dip galvanizing which protects against corrosion and weathering.
The galvanized cast iron fittings have R conical external threads, and Rp cylindrical internal threads, according to ISO 7/1.
Rating: the connectors have a bumped up size.
- Avaliable sizes: 1/8'' - 1/4'' - 3/8'' - 1/2'' - 3/4'' - 1'' - 1 1/4'' - 1 1/2'' - 2'' - 2 1/2'' - 3'' - 4''
- Galvanized iron fittings do not come in metric sizes.
The group of galvanized cast iron fittings includes: elbows, reduction elbows, tees, reduction tees, reductions, short bends, long bends, couplers, reduction couplers, plugs, plugs with rim, plugs without rim, T9 plugs, screw fittings with female threads, nipple screw fittings, screw fittings with gasket, conical screw fittings, straight nipples, reduction nipples.
We also offer cast iron fittings without zinc plating (uncovered)
We offer a wide range of cast iron fittings. If you have any questions, contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl
More information about our products can be found here>>
If you want to know how much you will pay for transport to your country, write us an emai onl: biuro@polberis.pl. We will send you an offer. If you have a European VAT number and don't want to pay TAX, tell us. Write to us for an offer. Please feel free to contact us for any information.
