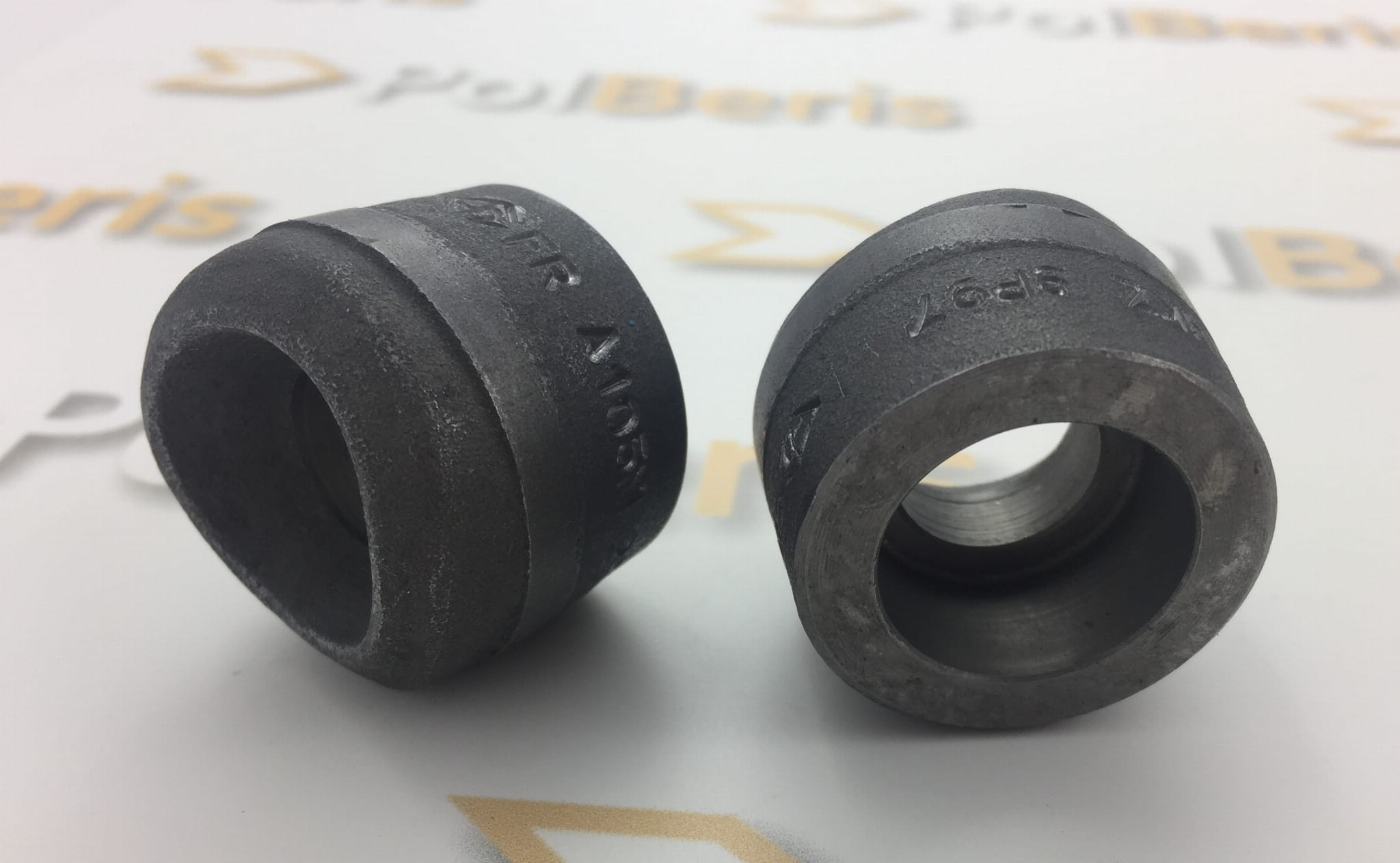

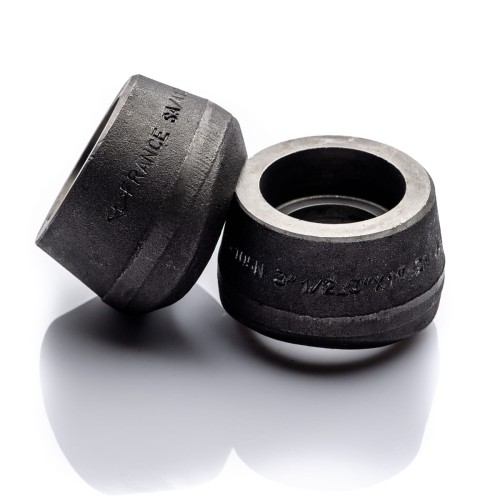

SOCKOLET 3/4'' x 1 1/4'' - 1 1/2'' SW A105 cl.3000 OUTLET

SOCKOLET 3/4'' x 1.1/4''-1.1/2'' SW 3000 A105 SW-OUTLET

Availability: on sale

Dispatched within: 14 days

Gross price: €7.63

incl. 23% TAX, excl. shipping costs

Regular price:

7.63

Net price: €6.20

excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 10587I

Description

SOCKOLET 3/4'' x 1 1/4'' - 1 1/2'' SW A105 cl.3000 OUTLET

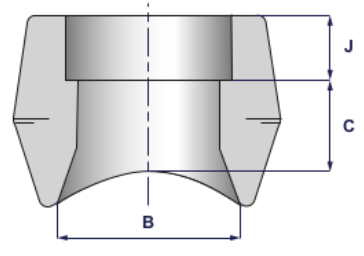

size: 3/4'' x 1 1/4'' - 1 1/2''
allows to connect pipe 3/4'' with pipe from 1 1/4'' to 1 1/2''
material: A105
pressure class: 3000 lbs
carbon steel for welding
dimensions acc. to standard MSS SP 97
application: industry, metallurgical engineering, refineries, boilers, tanks, systems with high requirements
certificate 3.1 at the request of the customer (free of charge)
origin: European Union

Other name: SOCKOLET 3/4'' x 1 1/4'' - 1 1/2'' SW A105 cl.3000 OUTLET branch steel fitting connector carbon steel A105 pressure 3000 SW socket weld

Information

SOCKOLET 3/4'' x 1 1/4'' - 1 1/2'' SW A105 cl.3000 OUTLET - steel branch fitting SW-OUTLET belongs to the group of “high-pressure fittings” where the pipe is welded in the socket (inlet). Socket welded with a pipe form tight structure of the system. Socked Weld (SW) system ensures safety, durability and resistance to rupture of the system. SW fittings allow easy choice of the pressure of the system. Each fitting is stamped with size, grade, melt and pressure rating. All SW fittings have 3.1 certificates.

Available in version:

material: carbon steel SA 105 / carbon steel for low temperatures (to -50 degrees). A350 LF2 CL.1
material: stainless steel 304 / SA A182 / F304/L / TP304 / TP304L / A312 / stainless steel 316 / SA A182 / F316L / F321 / F347
threaded
socked weld(SW)
thread – SW
product with 3.1 certificates
origin: European Union

Our offer includes also sockolet in the following sizes:: 1/8’’ – ¼’’ – 3/8’’ – ½’’- ¾’’ – 1’’ – 1 ¼’’ – 1 ½’’ – 2’’ – 2 ½’’ – 3’’ - 4''

Application: refineries, metallurgical engineering, sea industry, high-pressure systems, systems with high requirements, for high-temperature A105, for low-temperature LF2, boilers, pressure tanks, hydraulic systems, external systems, for crude oil ad gas industry.

Marking: sockolet is marked with a size, pressure rating, grade, melt number and, not always, type of thread. Markings are made according to the applicable standards.

Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.

Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR

More information about Sockolet and olets you may find here >>

Our offer includes also weldolets in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
