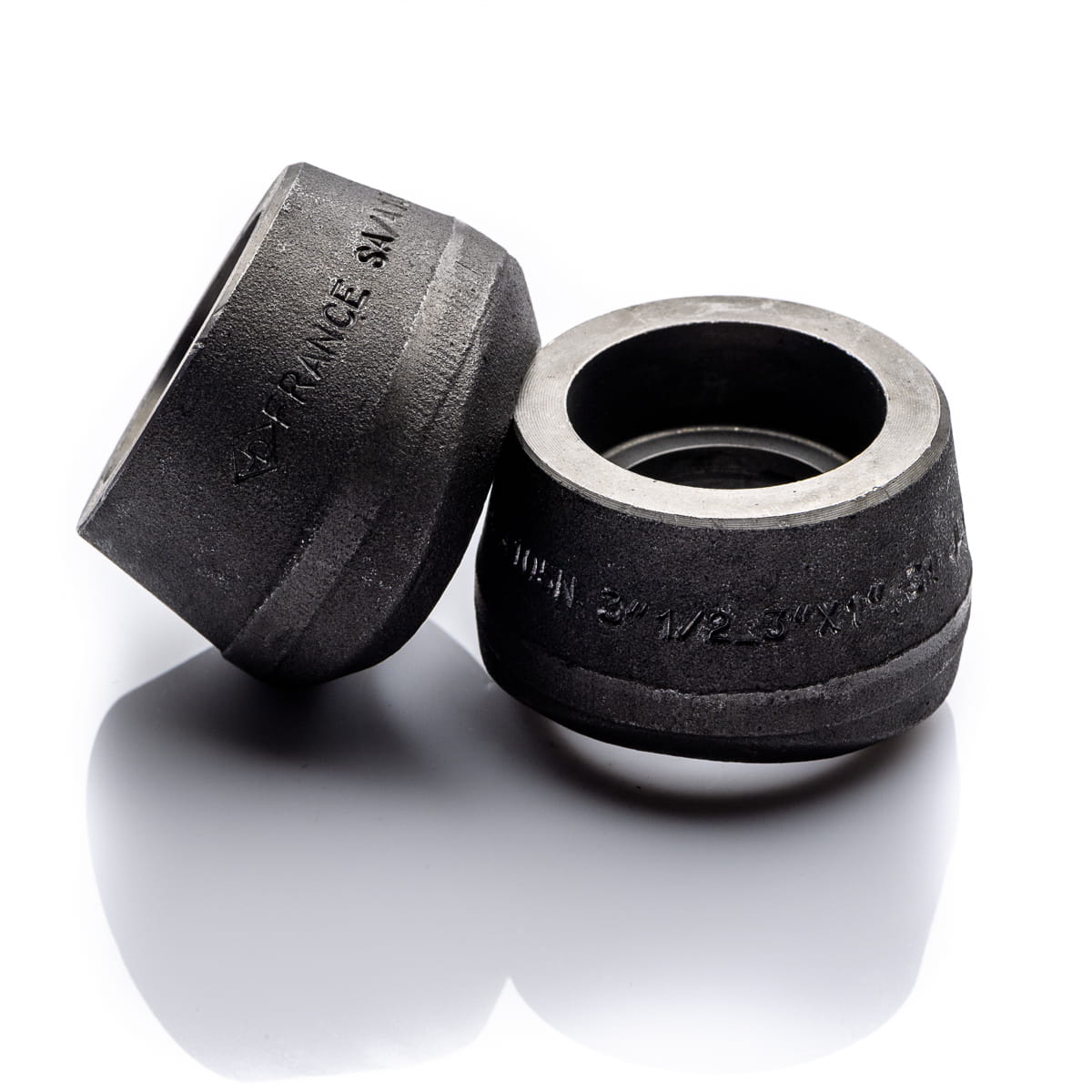

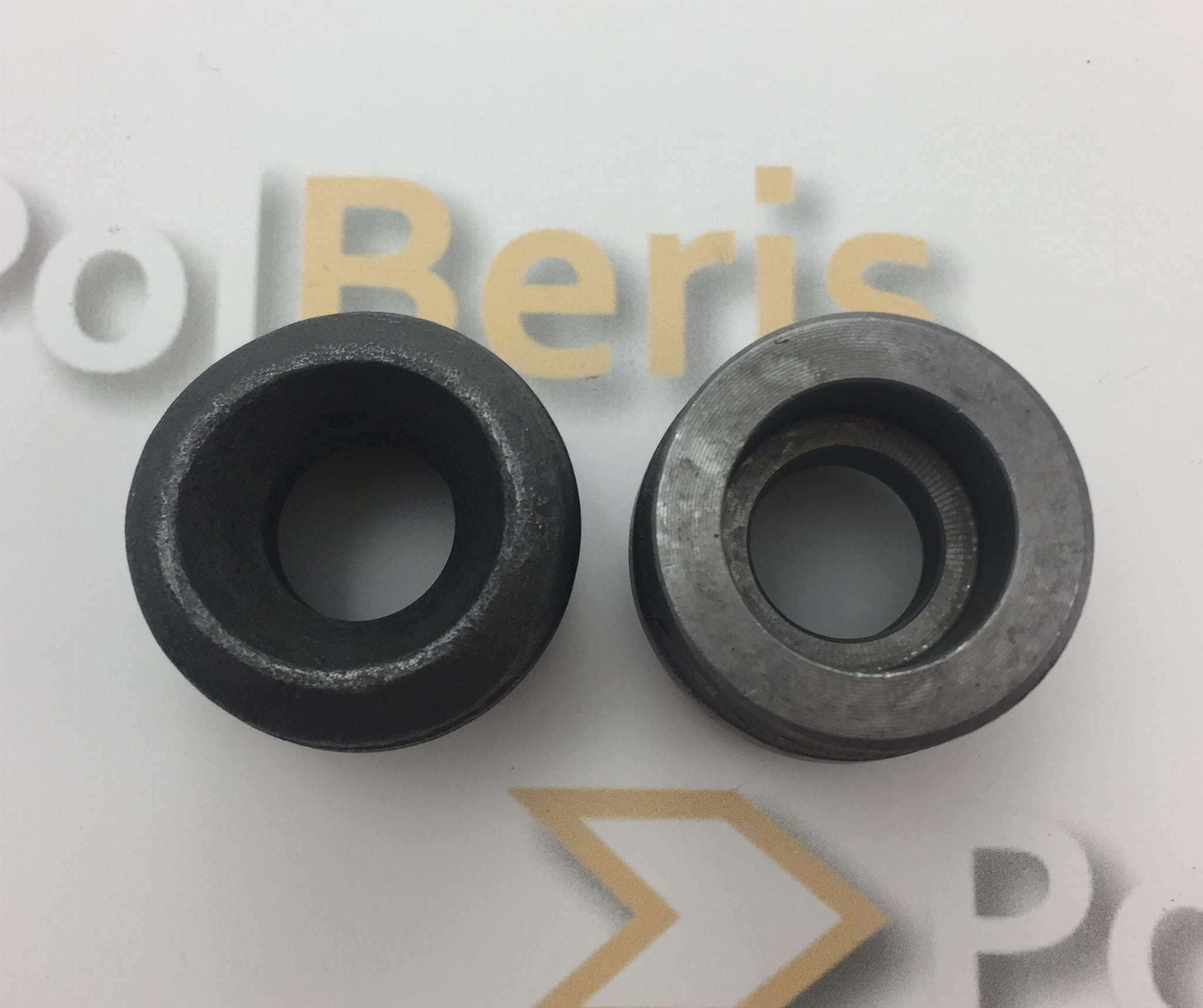

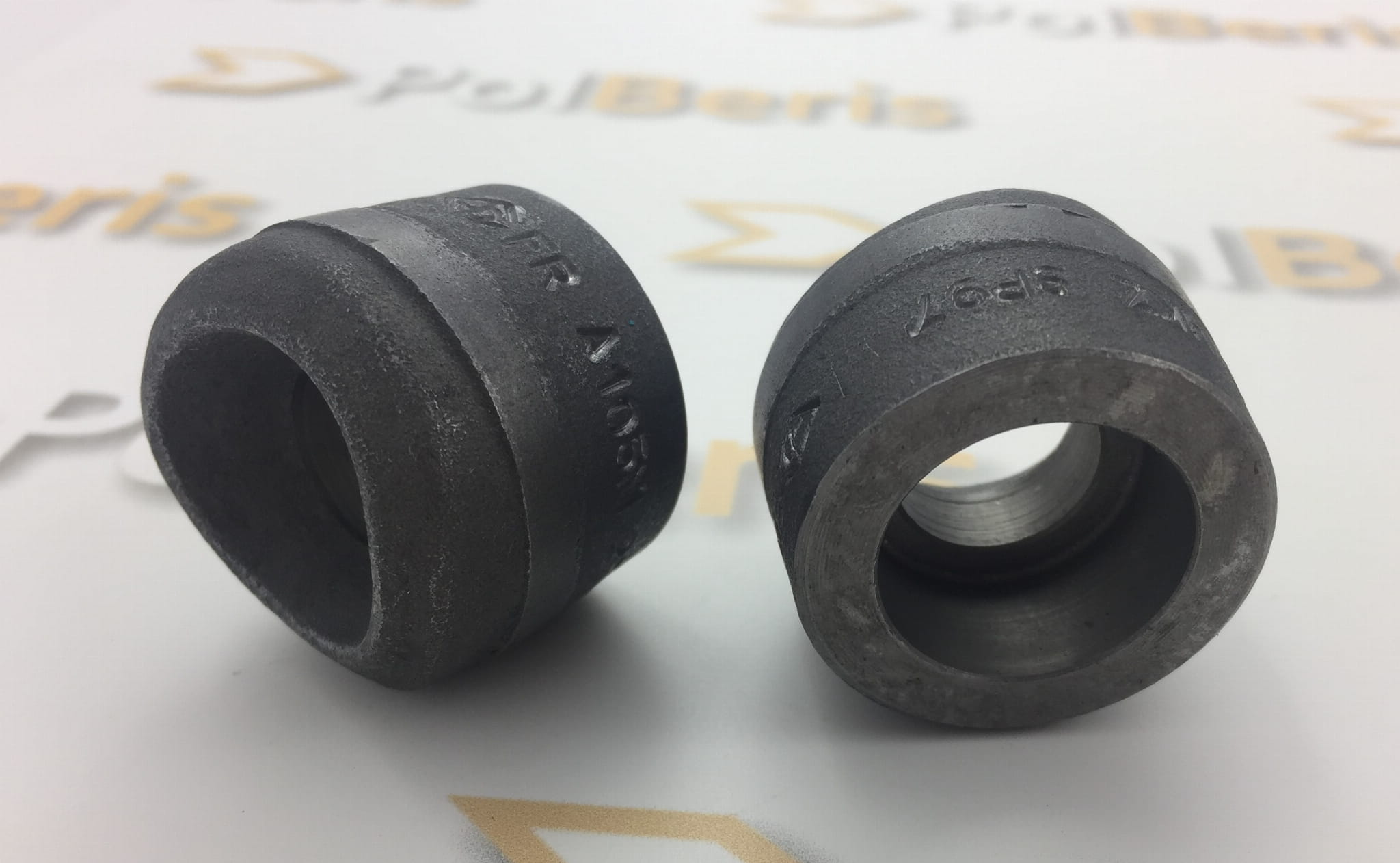

SOCKOLET 3/4''x2''-36'' SW A350 LF2 kl.3000

• Size: 3/4'' x 2''–36''
• Connection: Allows connection of a 3/4'' pipe to a header pipe from 2'' to 36''
• Material Grade: A350 LF2 (equivalent to P355GH)
• Impact Test: At -46°C
• Pressure Class: 3000 lbs
• Properties: Excellent for welding
• Standard: MSS SP 97
• Applications: Pressure systems, boilers, marine industry, heavy industry, tanks, outdoor installations, low-temperature environments
• Certification: 3.1 certificate available on request (free of charge)
• Origin: European Union

Also Known As: Sockolet 3/4'' x 2''–36'' SW A350 LF2 class 3000, socket weld branch fitting, steel olet, high-pressure SW outlet

Information

The 3/4'' x 2''–36'' SW A350 LF2 sockolet is a socket weld branch fitting (SW outlet) belonging to the group of high-pressure fittings. In this system, the pipe is inserted into a socket (recess) and welded, creating a tight and durable pipeline structure. The Socket Weld (SW) system ensures safety, durability, and a permanent connection.

SW fittings allow easy pressure selection for installations. Each fitting is marked with size, material grade, heat number, and pressure class. All socket weld fittings are supplied with 3.1 certification.

Available Options

• Material: carbon steel SA105 / low-temperature carbon steel A350 LF2 CL.1 (down to -50°C)

• Material: stainless steel 304 / 316 (SA A182, F304/L, F316L, F321, F347, etc.)

• Threaded

• Socket weld (SW)

• Threaded + SW

Available Sizes: 1/8’’ – 1/4’’ – 3/8’’ – 1/2’’ – 3/4’’ – 1’’ – 1 1/4’’ – 1 1/2’’ – 2’’ – 2 1/2’’ – 3’’ – 4’’

Applications

Refineries, metallurgy, marine industry, high-pressure installations, demanding industrial systems, high-temperature (A105) and low-temperature (LF2) environments, boilers, pressure vessels, hydraulic systems, outdoor installations, oil & gas industry.

Marking:
Each sockolet is stamped with size, pressure class, material grade, and heat number, and sometimes thread type. Marking complies with applicable standards.

Material Information – A105 Steel:
A105 is a carbon steel widely used in piping components, flanges, and fittings. It is intended for operation at ambient and elevated temperatures in pressure systems. It offers good machinability and weldability.

Equivalent Grades: 1.0460, C22.8, P245GH, P265GH, P285GH, S235JR

More information about Sockolet and olets you may find here >>
