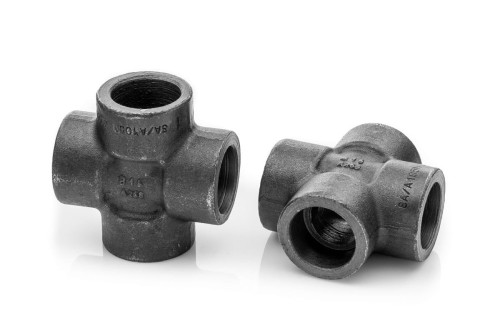

Cross 1" Socket Weld A105 Class 3000

• Size: 1" (fits DN25 pipe, 33.7 mm)
• Type: socket weld (SW) – no thread, for welding
• Pressure Class: 3000 lbs (206 bar)
• Material: A105 carbon steel (P245GH, P280GH), high-temperature, high-pressure
• Applications: metallurgy, marine industry, energy, boilers, turbines, pressure vessels, industrial installations
• Weldable Steel: excellent for welding
• Standards: socket weld fittings per ANSI B16.11
• Certificate: 3.1 available on request (free)
• Origin: European Union






Also known as: 1" socket weld cross A105 class 3000, high-pressure welding cross, SW, 1.4301, straight-through stainless steel cross

Information

The 1" Socket Weld Cross A105 Class 3000 is part of the high-pressure SW fittings group, where the pipe is inserted into a socket and welded. The welded socket creates a tight, durable, and leak-proof installation. The SW system ensures safety, durability, and stability. During welding, the pipe stays in the socket, allowing better handling and stronger welds capable of withstanding high pressure. Each fitting is marked with size, material grade, heat number, and pressure class. All SW fittings have 3.1 certificates.

Steel Grade A105 is a widely used carbon steel for pipelines, flanges, and fittings. It is suitable for ambient and higher temperatures, pressure applications, and is fully weldable. It is used in socket fittings, elbows, tees, couplings, unions, flanges, and connectors.

Applications: oil and gas transport, petrochemical plants, power stations, ships, central heating systems, and other industrial pipelines.

Properties comparable to: 1.0460, C22.8, P245GH, P265GH

More information about bushings and reductions you may find here >>

Our offer includes also crosses and fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
