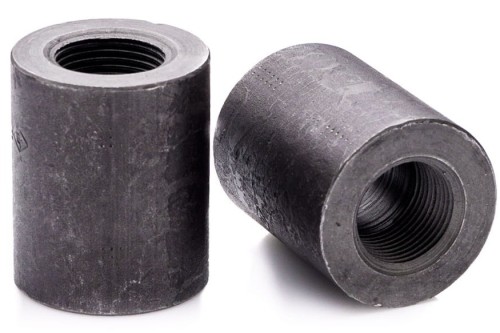

Coupling 1/4'' NPT A105 Class 6000 Steel

• Thread: 1/4''
• Thread Type: NPT
• Pressure Class: 6000 (413 bar)
• Material: A105 carbon steel (for high pressure, equivalent to P245GH, P265GH, P285GH)
• Weldability: weldable steel
• Dimension D: 25mm
• Dimension W: 35mm
• Type: female threaded on both sides
• Applications: industry, production of exported machinery, pressure installations, hydraulics
• Certification: 3.1 certificate available on request (free of charge)
• Origin: European Union

Also Known As: Coupling 1/4'' NPT A105 Class 6000 steel, threaded fitting, high-pressure fitting, adapter, tapered NPT thread coupling, straight weldable fitting, carbon steel coupling

Information

The 1/4'' NPT A105 Class 6000 steel coupling belongs to the group of threaded “high-pressure fittings”. Couplings are available in all inch sizes. Each coupling is stamped with size, grade, melt number, and pressure class. It guarantees safety and durability of installations. All threaded fittings have 3.1 certificates.

A105 steel grade is a carbon steel commonly used in pipelines, flanges, and fittings. This grade is designed for operation at ambient and elevated temperatures, as well as for pressure installations. It has good machinability, typical for low-alloy steel, and is weldable.

Applications: oil and gas transport, petrochemical plants, power plants, pressure vessels, and similar installations.

Comparable grades: 1.0460, C22.8, P245GH, P265GH, P285GH, S235JR

Additional Information:

• Grade on certificate: A105 (P280GH, P245GH according to EN10222-2)

• Marking on coupling: size, class, grade, melt number

• Certification: PED 97/23/CE & PED 2014/68/UE

• Manufacturing: according to ASME/18 – ASTM/14 SA/A105 Sect II Part A

• The thread is not made through the entire coupling (not possible with NPT thread)
