Seal 1/2'' FPM ED/WD
Regular price:
Regular price:
product unavailable
add to wish list
Description
-

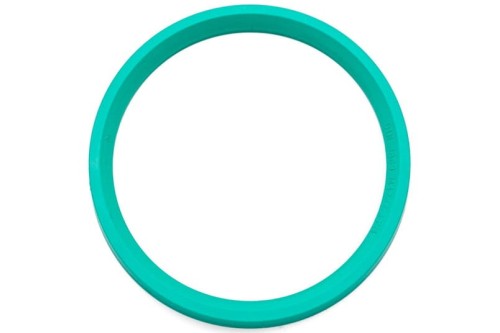

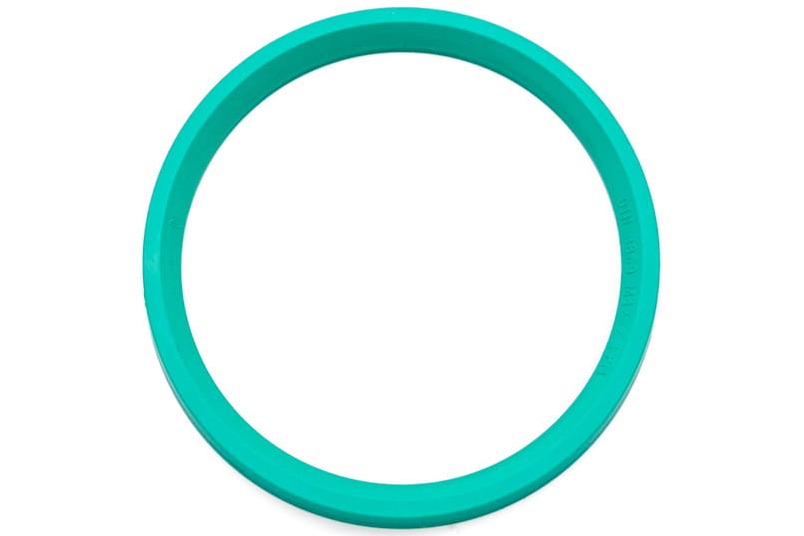

Seal 1/2'' FPM ED/WD
- Suitable for: G 1/2'' thread
- Outside diameter (Da): 23.9 mm
- Inside diameter (di): 18.5 mm
- Thickness (S): 1.5 mm
- R1/2 soft
- Material: FPM
Alternative Name: Seal 1/2'' FPM ED/WD, hydraulic fitting seal, ED seal, WD seal, soft seal, original hydraulic fitting seal, profiled seal, adapter seal, reducing fitting seal, nipple seal, coupling seal.
Information
ED/WD Seal 1/2'' FPM.
ED/WD Seal 1/2'' FPM, also known as an ED or WD seal, is a precision seal for G1/2'' (R1/2) threads. Manufactured from FPM, it provides excellent resistance to oils, fuels, and high temperatures. Its soft construction ensures quick fitting and reliable sealing on external threaded connections. It is ideal for hydraulic systems, the automotive industry, and equipment requiring durable sealing.
ED and WD seals are designed for hydraulic fittings, nipples, and adapters. Most hydraulic fittings are originally manufactured with a groove for this type of seal. The seal can be replaced by carefully lifting it out. It ensures a reliable leak-tight connection.
We also offer ED and WD seals in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or send your enquiry to biuro@polberis.pl. We will prepare a quotation for you.
ED/WD Seal 1/2'' FPM is also available in other sizes from our product range.
Learn more about ED and WD seals here >>
