Square Head Plug 3/4" NPT A105 cl.3000
Regular price:
Regular price:
product unavailable
add to wish list
![Pin It](http://pinterest.com/pin/create/button/?url=https://sklep.polberis.pl/en_US/p/Square-Head-Plug-34-NPT-A105-cl.3000/12632&media=//sklep.polberis.pl/userdata/public/gfx/24123/Korek-bez-obrzeza-34-NPT-A105-kl.3000-.jpg&description=Square Head Plug 3/4" NPT A105 cl.3000 "Pin It")
Description

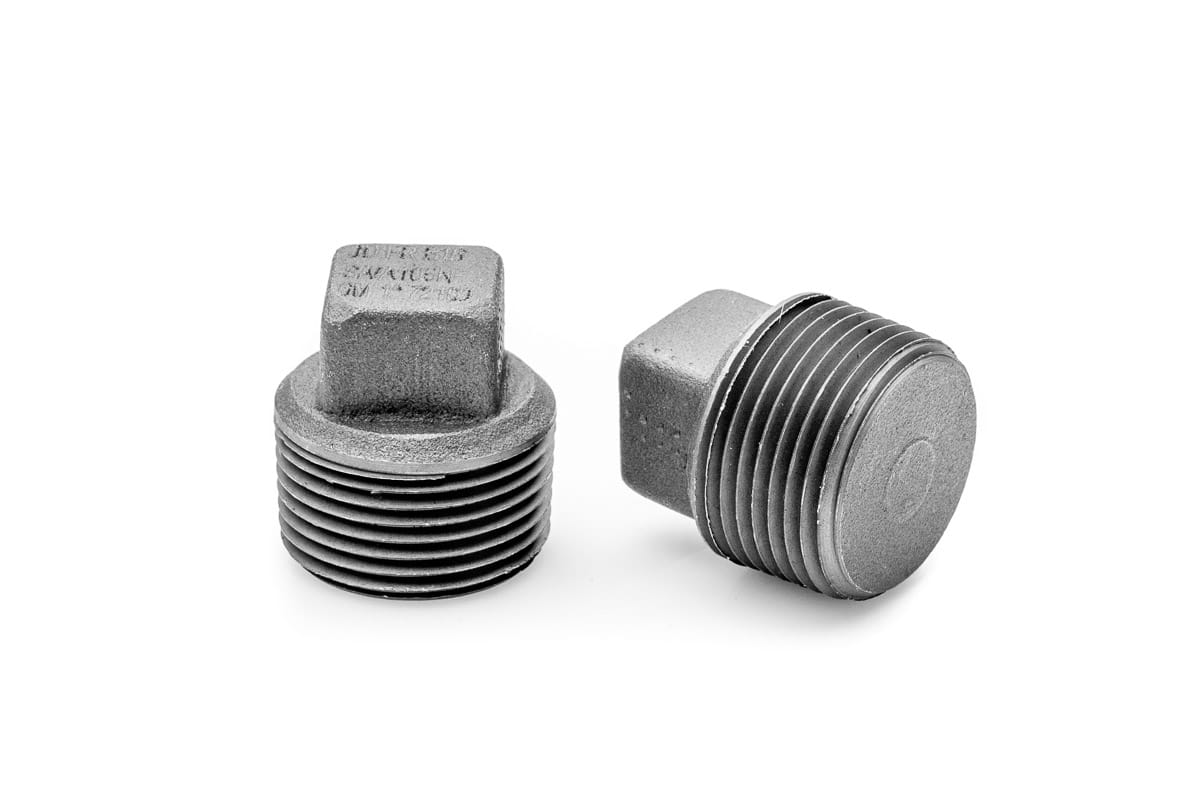

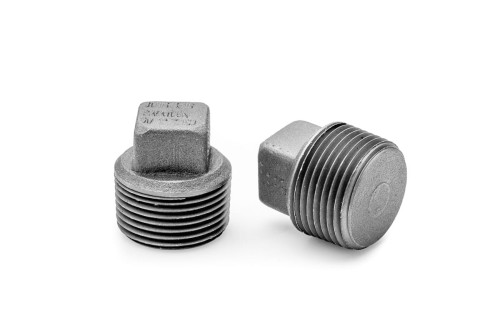

Square Head Plug 3/4'' NPT A105 cl.3000
- size: 3/4'' (thread diameter: 20,7÷21,1mm)
- thread type: NPT (tapered)
- execution acc. to the standard: ANSI B 16.11
- pressure rating: 3000 lbs (206,9 bar) / 6000 lbs
- plug without rim
- application: closure of system; for the execution of pressure testing, systems with high requirements, boilers, ships, heavy industry, tanks
- material: carbon steel ASTM A105
- high-pressure plug
- certificate 3.1 at the request of the customer (free of charge)
- origin: European Union
Other name: plug with a square for wrench without rim, thread on length, steel threaded square plug NPT 3/6000 A105 P265GH P285GH round Square Head Plug without rim
Information:
Steel grade A105 – is carbon steel very often used for components of the pipelines and fittings, e.g. nipple 1.1/2” NPT hexagonal, cl. 3000 A105. This grade of carbon steel is used for pressure systems for ambient and higher temperatures. It has good machining properties as in the case of each low-alloyed steel. A105 grade is well weldable steel.
Application: grade used for transport of crude oil and gas, in petrochemical plants, power plants, pressure tanks etc.
Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH
Marking: each plug is stamped with size, grade, melt and pressure rating. Sometimes also with the type of thread (execution and marking is in compliance with the applicable standards).
The plugs ensure the safety and durability of the system.
Advantages: an easy selection of thread and steel grade
Disadvantages: unavailable in metric dimensions
More information about pluges and caps you may find here >>
Our offer includes also pluges in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.
Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.
