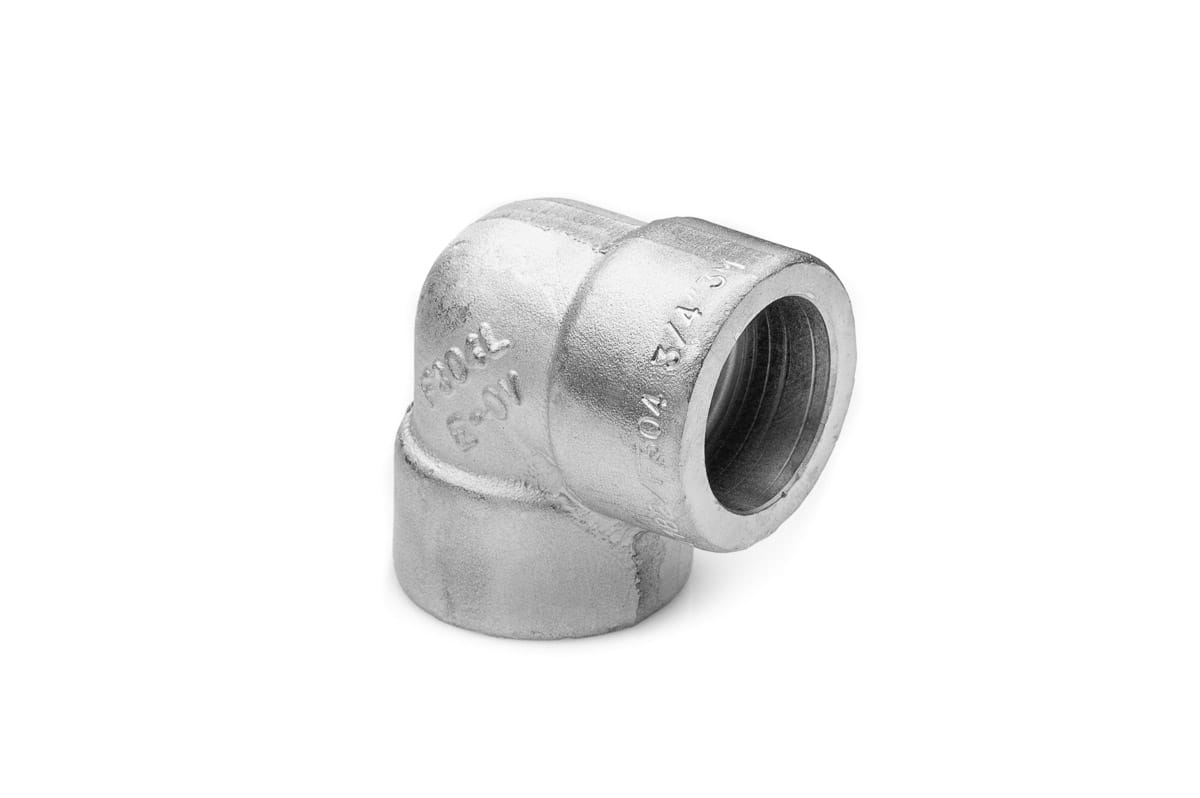

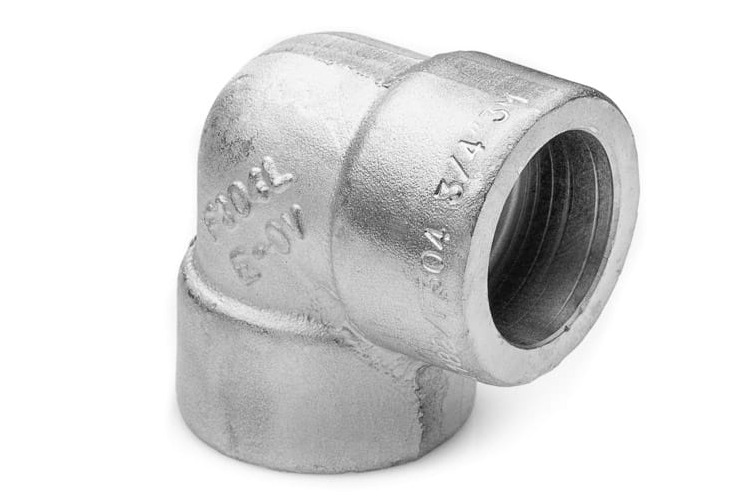

Socket Weld Elbow 3/4" 304L Class 6000 90°

• Size: 3/4"

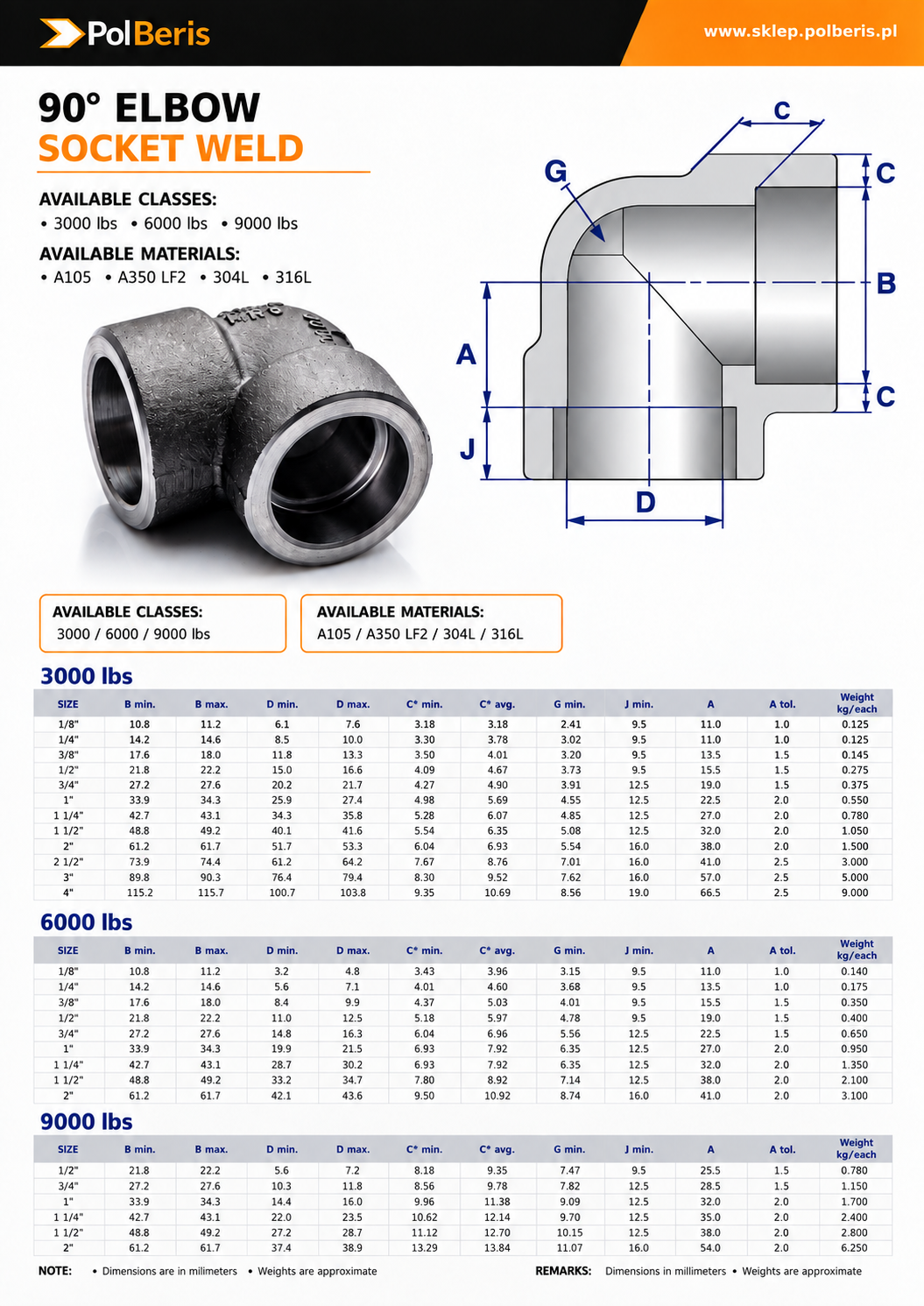

• Socket dimension B: min. 27.2 mm – max. 27.6 mm
• Angle: 90°
• Type: Socket Weld (SW)
• Pressure class: Class 6000 (413 bar)
• Material: 304 / 304L stainless steel
• Socket weld elbow with recessed socket
• Applications: High-pressure industrial piping systems, high-temperature installations, refineries, marine industry, food industry, steel plants, demanding industrial installations, ships, hydraulic systems
• Manufactured according to ANSI B16.11
• 3.1 material certificate available on request (free of charge)
• Origin: European Union

Alternative Name: Socket Weld Elbow 3/4" 304L Class 6000 90°, socket weld elbow, SW elbow, recessed socket elbow, forged socket weld fitting, 90-degree socket weld elbow, stainless steel socket fitting.

Information

Socket Weld (SW) fittings belong to the group of high-pressure forged fittings, where the pipe is welded into a recessed socket. The welded socket creates a strong, leak-tight connection, ensuring maximum safety, durability, and reliability.

The Socket Weld (SW) system makes it easy to select the correct pressure class for the installation. Every fitting is permanently marked with its size, material grade, heat number, and pressure class. All Socket Weld fittings are available with a 3.1 material certificate.

Advantages of Socket Weld fittings

• The pipe does not require beveling before welding.
• No special preparation is required before installation.
• An excellent alternative to threaded fittings.

Limitations

• Not recommended for radioactive installations.

Available Sizes

1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 3 1/2", and 4".

304 / 304L stainless steel is the standard corrosion-resistant stainless steel grade (SS304L). It is the most versatile and widely used stainless steel, offering excellent corrosion resistance together with outstanding forming and welding properties.

Typical applications include chemical processing, food industry, architecture, and automotive industries.

Also known as: 1.4301, 1.4306, 1.4307, AISI304L, 0H18N9.

Material

• 304 / 304L stainless steel
• Corrosion resistant
• Excellent weldability

Advantages

• High-pressure design
• Excellent weldability
• High temperature resistance
• Corrosion resistant
• Non-magnetic stainless steel
• Excellent ductility
• High impact resistance
• Good mechanical strength
• Wide operating temperature range
• Manufactured according to ANSI B16.11

Applications

High-pressure industrial piping systems, chemical plants, food processing, refineries, marine industry, shipbuilding, hydraulic systems, steelworks, and general process engineering.

We also offer Socket Weld fittings in many other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Learn more about Socket Weld fittings here >>
