Neck Flange DN20 PN63 26.9mm P250GH
Regular price:
Regular price:
product unavailable
add to wish list
Description

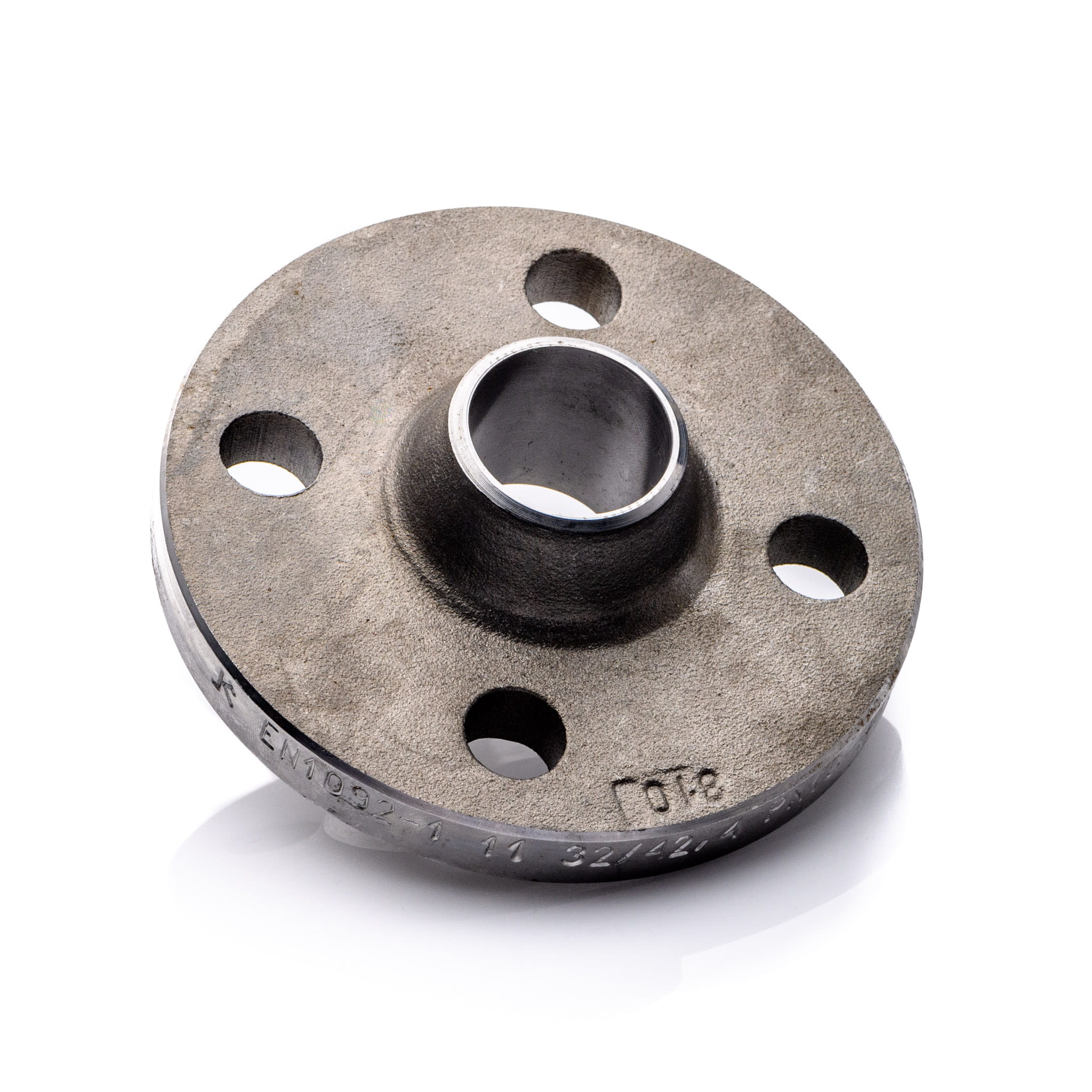

Neck Flange DN20 PN63 26.9mm P250GH
- Size: DN20
- Pressure Rating: PN63–100
- Type: 11 B2
- For Pipe Diameter: 26.9 mm
- Wall Thickness: 2.6 mm
- Steel Grade: P250GH
- Material: weldable carbon steel
- Standard: EN1092-1
- Certificate: 3.1 available on request
- Applications: industrial piping installations
Also known as: Neck Flange DN20 PN63–100 26.9mm P250GH, steel weld neck flange P250GH EN1092-1, industrial piping flange
Information
The Neck Flange DN20 PN63 26.9mm P250GH is a carbon steel weldable flange designed for high-temperature industrial applications (up to 480°C). P250GH is widely used for manufacturing fittings and flanges, without requiring special heat treatment.
Advantages of P250GH Steel: excellent weldability, suitable for cold and hot forming, durable in industrial conditions.
More about flanges and steel ring can be found here>>
We also offer flanges and steel rings in other dimensions. If you have any questions, contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
Technical data
| Manufacturing Standard | EN & DIN Standards |
| Flange Type | Welding Neck (WN) |
| Steel Grade | P245GH ~ P250GH |
| Material | Carbon Steel |
| Size | DN20 ~ 3/4'' ~ 26,9mm |
