Description

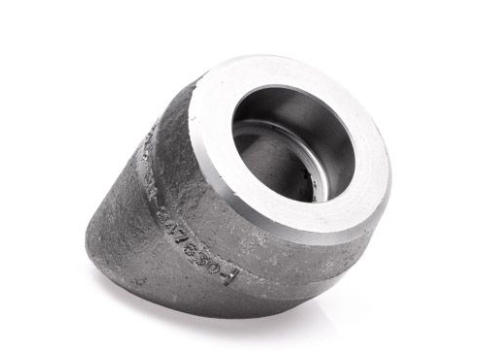

ELBOLET 3/4''x1 1/4''-36'' SW A105 cl. 3000

  • size: 3/4'' (for connecting 3/4'' pipe, i.e. 33.7mm - the inlet has an opening of 37mm)
  • elbolet (taper) is used to weld a 3/4'' pipe to a pipe with a diameter from 1 1/4'' to 36''
  • angle: 45 degrees
  • elbolet for welding
  • grade: A105
  • pressure class: 3000lbs (i.e. 206bar)
  • boiler steel branch
  • steel for welding
  • dimensions according to MSS SP 97
  • application: high pressure industrial installations, up to high temperature
  • 3.1 certificate on request (free of charge)
  • origin: European Union



Other name: ELBOLET 3/4''x1 1/4''-36'' SW A105 kl. 3000 elbolet welding shaper with latrolet thread letrolet screwbranches olet P265GH P245GH elbolet 3/4'' to 1 1/4''-36'' SW A105 cl. 3000

Information


ELBOLET 3/4''x1 1/4''-36'' SW A105 cl. 3000 belongs to the group of steel taps (Olet) type: veldolet, thredolet, sockolet, boss, couplet, latrolet is an alternative way of connecting pipes. Olets are pre-shaped to the curvature of the lead pipe so they can be easily welded to the pipe and make a branch. They provide good flow and optimal stress distribution. Taps are typically used in high-pressure and high-temperature applications.

Other options available:

  • pressure class: 3000
  • pressure class: 6000
  • socked Weld (SW) elbows
  • threaded elbows: thread NPT, BSPP, BSPT
  • material: carbon steel SA 105, carbon steel for low temperature (up to -50 stop). A350 LF2 CL.1
  • material: stainless steel 304 / SA A182 / F304/L / TP304 / TP304L / A312, stainless steel 316 / SA A182 / F316L / F321 / F347

Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.

Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.

Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR

Marking: each fitting is stamped with size, grade, melt and pressure class.

You can find more about pressure fittings here>>

Our offer includes also fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
