Reduction WELDOLET 3/4''x10'' XXS SCH160 BW A105

Availability: last items

Dispatched within: 24 hours

Gross price: €43.87

incl. 23% TAX, excl. shipping costs

Regular price:

43.87

Net price: €35.66

excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 13081A

Description

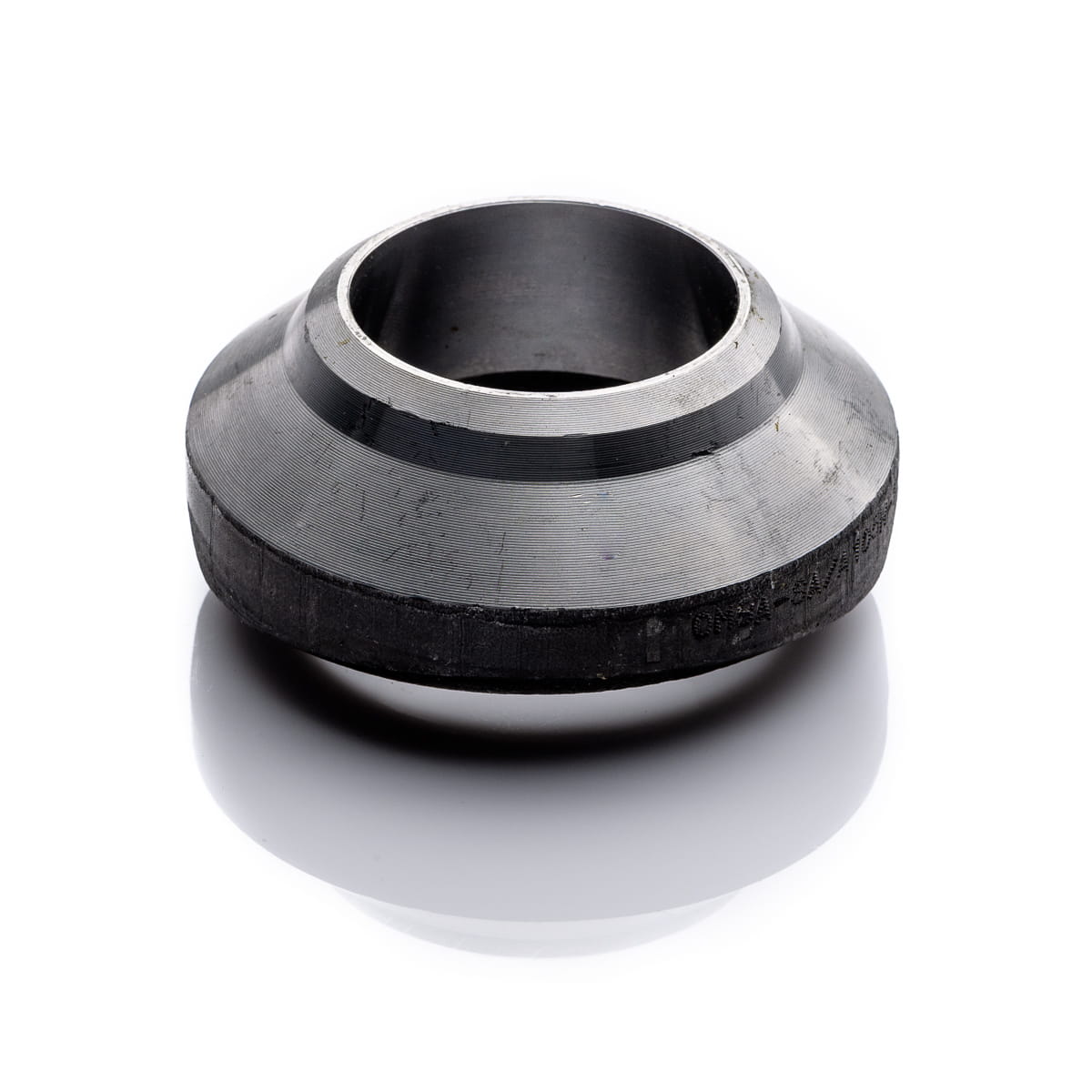

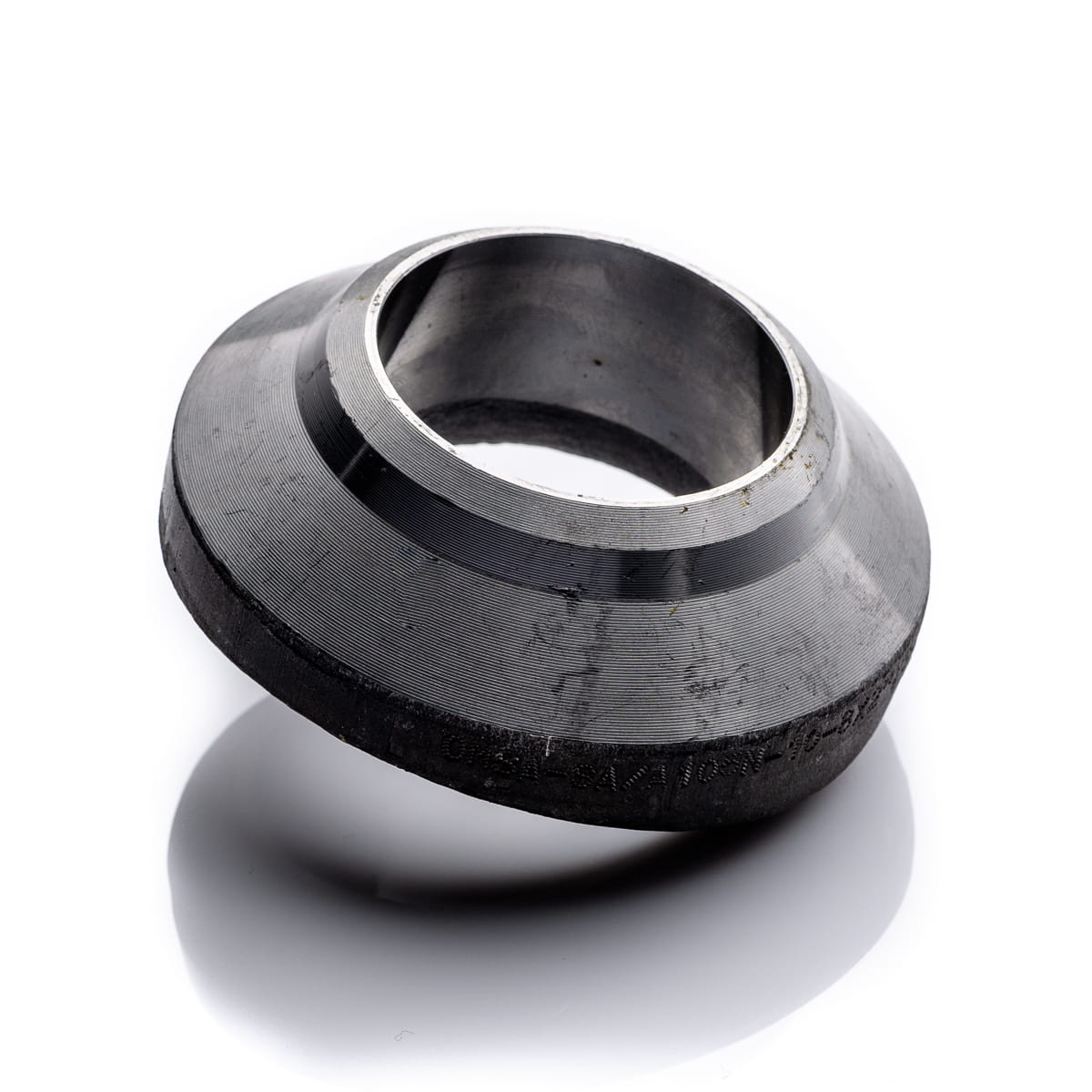

Reduction WELDOLET 3/4''x10'' XXS SCH160 BW A105

code PolBeris: 13081A

size: 3/4''x10"
type: A105
wall thickness XXS / SCH160
steel for welding
dimensions acc. MSS SP 97
application: high-pressure industrial installations
certificate 3.1 on request (free of charge)
origin: European Union

weldolet bw A105 XS WELDOLET STAL WĘGLOWA

dimension A = 31,8

dimension B = 15,5

Other name: Reduction WELDOLET 3/4''x10'' XXS SCH160 BW A105 branch fitting for welding, service pipe, fitting for welding, bevelled and threaded butt weld BW

Information

Steel branch fittings ( Olet ) type: weldolet, thredolet, sockolet, boss, couplet, latrolet are an alternative method of pipes joining. Olet fittings are pre-formed for the curvature of the guide pipes. They ensure good flow and optimal distribution of stresses. Branch fittings are usually applied in high-pressure and high-temperature systems.

Available in version:

material: carbon steel SA 105 / carbon steel for low temperatures (to -50 degrees). A350 LF2 CL.1
material: stainless steel 304 / SA A182 / F304/L / TP304 / TP304L / A312 / stainless steel 316 / SA A182 / F316L / F321 / F347
threaded
socked weld(SW)
thread – SW
product with 3.1 certificates
origin: European Union

Application: refineries, metallurgical engineering, sea industry, high-pressure systems, systems with high requirements, for high-temperature A105, for low-temperature LF2, boilers, pressure tanks, hydraulic systems, external systems, for crude oil ad gas industry.

Marking: couplets are marked with a size, pressure rating, grade, melt number and, not always, type of thread. Markings are made according to the applicable standards.

More information about Weldolet and olets you may find here >>

Our offer includes also weldolets in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
