Flange 3/4'' NPT 150lbs RF A105
Regular price:
Regular price:
product unavailable
add to wish list
Description

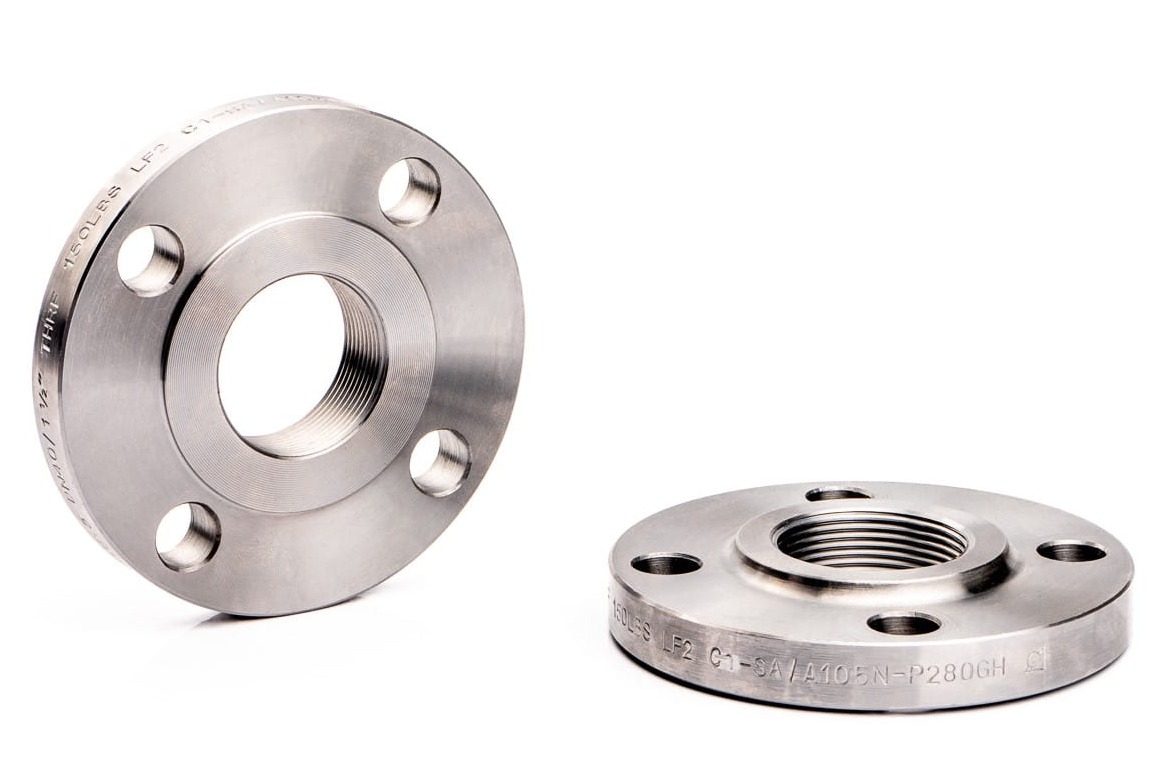

Flange 3/4'' NPT 150lbs RF A105
- size: 3/4''
- thread type: NPT
- threaded flange
- pressure: 150lbs
- flange: RF
- execution according to B16 standard
- steel grade: A105
- steel flange
- certificate 3.1 on request (free of charge)
- application: industrial installations
Other name: Flange 3/4'' NPT 150lbs RF A105 threaded flange SA/A105 ANSI 150 RF 3/4'' NPT boiler steel welding flange steel flange
What is the purpose of NPT threaded flange?
NPT threaded flanges allow for easy construction of installations and quick screwing of other components without the need for welding. They are commonly used in industrial, petrochemical, and gas transmission installations. Threaded flanges are also used in various machines and devices where high-strength connections are required.
What properties does steel grade A105 have?
Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel.
Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.
Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR
More about flanges and steel ring can be found here>>
We also offer flanges and steel rings in other dimensions. If you have any questions, contact us. Call 0048 632614202 or send an inquiry to e-mail: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
