Socket Weld Cap 1/2'' SW 316L Class 6000

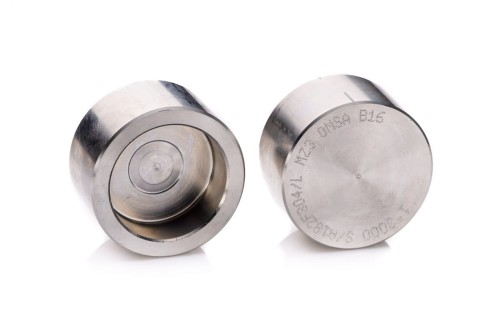

Zaślepka 1/2'' socket weld 316L kl.6000.jpg

Availability: on sale

Dispatched within: 14 days

Gross price: €14.38

incl. 23% TAX, excl. shipping costs

Regular price:

14.38

Net price: €11.69

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 11240M

Description

Socket Weld Cap 1/2'' SW 316L Class 6000

Size: 1/2''
Material: 316L stainless steel (1.4404)
Pressure class: Class 6000 (413 bar)
Connection: Socket Weld (SW)
Weld cap for pipe
Suitable for welding
Excellent corrosion resistance
3.1 material certificate available on request (free of charge)
Origin: European Union

Alternative Name: Socket Weld Cap 1/2'' SW 316L Class 6000, socket weld pipe cap, SW end cap, stainless steel weld cap, forged socket weld cap, socket weld fitting, welding cap, pressure cap.

Information

Socket Weld Cap 1/2'' SW 316L Class 6000 is designed to permanently seal the end of a pipe in high-pressure Socket Weld (SW) piping systems. The pipe is inserted into the socket and welded, creating a permanent, leak-tight connection suitable for demanding industrial applications.

Socket Weld fittings belong to the group of high-pressure forged fittings. Their socket design provides excellent mechanical strength, reliable sealing, and long service life. Every fitting is permanently marked with its size, material grade, heat number, and pressure class for complete traceability.

Material

Material: 316L stainless steel (1.4404)
Excellent corrosion resistance
Excellent weldability
Suitable for aggressive media
Non-magnetic
Wide operating temperature range
3.1 material certificate available on request (free of charge)
Origin: European Union

Equivalent grades: DIN 1.4401, 1.4404, SS316, SS316L, AISI 316, AISI 316L, X2CrNiMo17-12-2.

Advantages

High corrosion resistance
Excellent weldability
Suitable for high-pressure applications
Leak-tight welded connection
Long service life
High mechanical strength
Manufactured for Class 6000 (413 bar) systems

Applications

Industrial pressure piping systems, high-specification process installations, boilers, marine industry, heavy industry, heat exchangers, pharmaceutical equipment, dairy processing plants, breweries, food processing industry, and offshore applications.

We also offer Socket Weld fittings in many other sizes and materials. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Learn more about Socket Weld fittings here >>
