Socket Weld Tee 1/2'' 304L Class 3000
Regular price:
Regular price:
product unavailable
add to wish list
Description

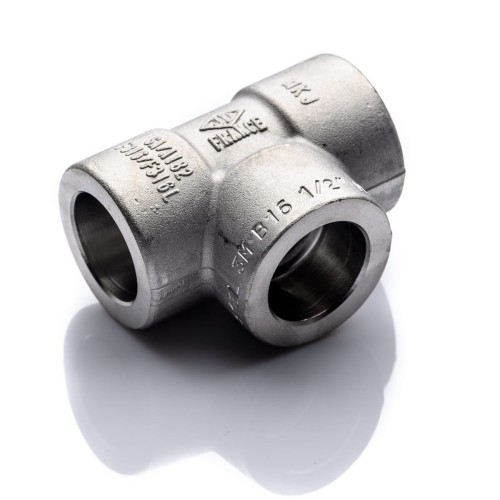

Socket Weld Tee 1/2'' 304L Class 3000
- Size: 1/2''
- Suitable for pipe: 1/2'' (21.3 mm) DN15
- Material: Stainless Steel 304L
- Pressure class: 3000 lbs (206 bar)
- High-pressure tee
- Manufactured according to: ANSI B16.11
- Good weldability
- Applications: industry, steel industry, refineries, boilers, tanks, ships, marine industry, machinery, installations with high requirements
- Properties: for high pressure, for high temperature
- 3.1 material certificate available on request (free of charge)
- Origin: European Union

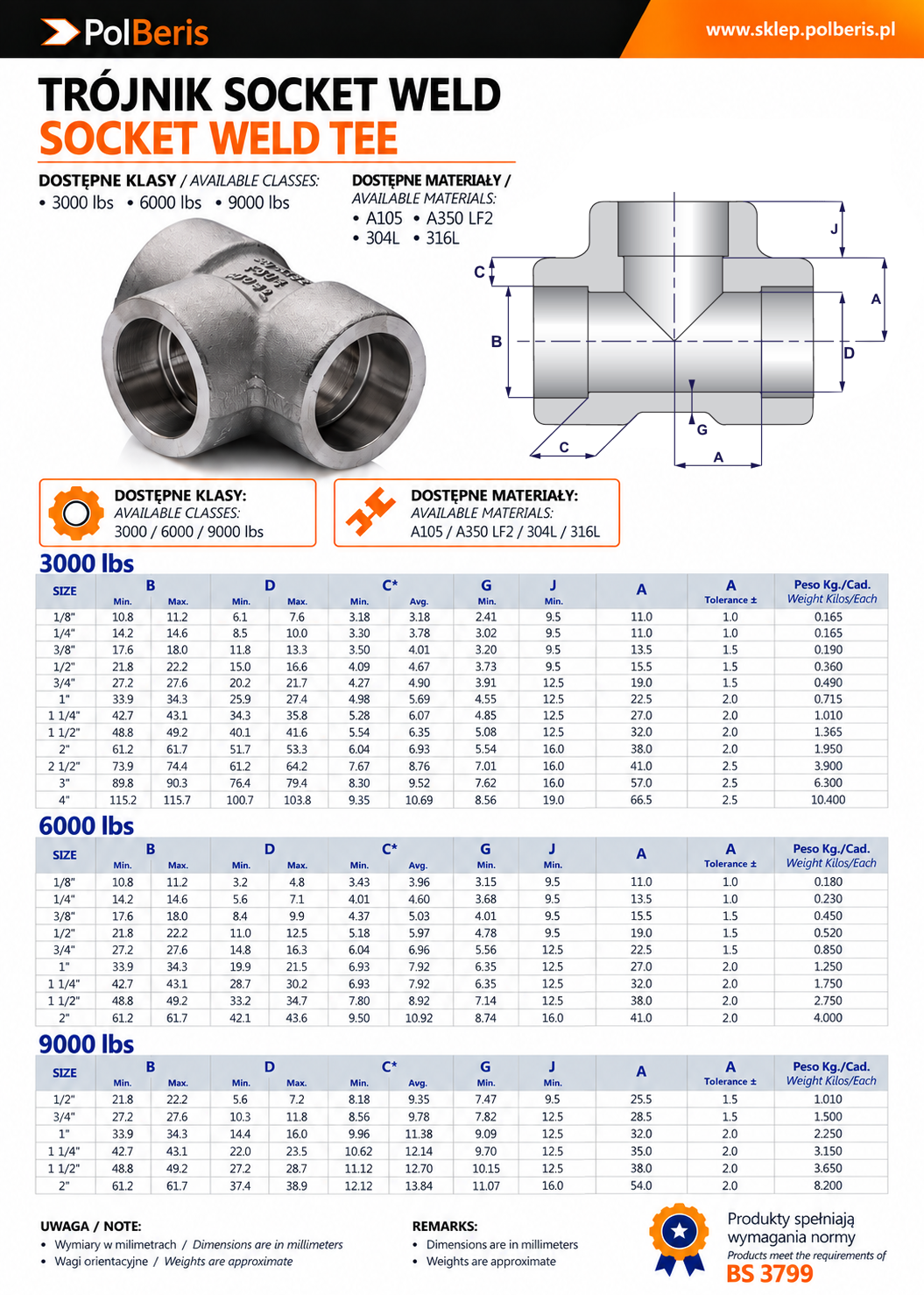

B = 1/2'' (21.8–22.2 mm)
Alternative Name: Socket Weld Tee 1/2'' 304L Class 3000, SW tee fitting, socket weld tee, socket fitting, DN15 tee, 21.3 mm stainless steel welding tee.
Information
Socket Weld Tee 1/2'' 304L Class 3000 belongs to the group of high-pressure Socket Weld (SW) fittings, where the pipe is welded into the socket (recess). The socket welded to the pipe creates a tight installation structure. The Socket Weld (SW) system guarantees safety, durability, and a permanent installation. This welding method is highly appreciated by welders. During welding, the pipe is inserted into the socket and does not slip, providing greater convenience. The weld withstands higher pressure. Thanks to Socket Weld fittings, the installation pressure can be easily selected. Each fitting is marked with its size, material grade, heat number, and pressure class. All Socket Weld fittings are supplied with 3.1 material certificates.
Learn more about socket weld fittings here >>
Other sizes are also available on request. Please contact us. Call +48 63 261 42 02 or send your enquiry to biuro@polberis.pl. We will prepare a quotation for you.
Socket Weld Tee 1/2'' 304L Class 3000 is also available in other sizes from our product range.
