Coupling 1/2" socket weld 304L cl.3000
Regular price:
Regular price:
product unavailable
add to wish list
![Pin It](http://pinterest.com/pin/create/button/?url=https://sklep.polberis.pl/en_US/p/Coupling-12-socket-weld-304L-cl.3000/11822&media=//sklep.polberis.pl/userdata/public/gfx/27062/Mufa-12-socked-weld-304L-kl.3000.jpg&description=Coupling 1/2" socket weld 304L cl.3000 "Pin It")
Description

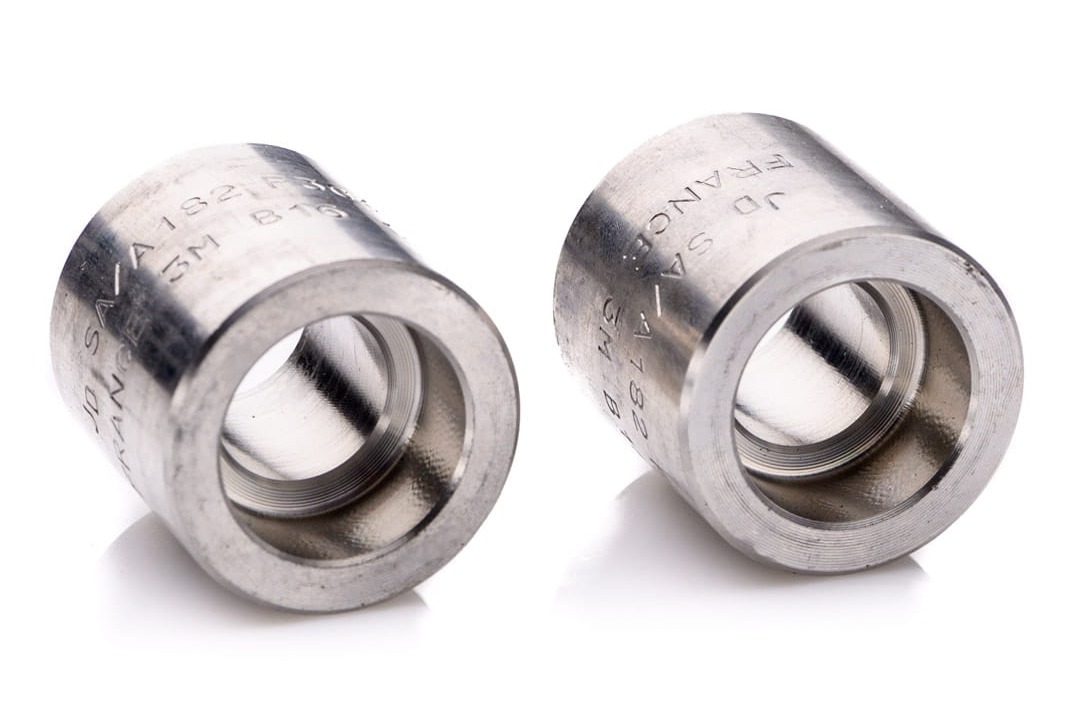

Coupling 1/2" socket weld 304L cl.3000
- size: 1/2''
- size B is: 21,8mm-22,2mm
- coupling fits pipe DN15 = 21,3 mm
- pressure class: 3000lbs (206bar)
- socket fittings for welding to ANSI B16.11 standard
- material: 304L stainless steel (other name 1.4301)
- weldable steel
- SW coupler application: boilers, high pressure installations, high temperature installations, refineries, marine industry, metallurgy
- 3.1 attestation on request (free of charge)
- origin: European Union
Other name: Coupling 1/2'' socket weld 304L cl.3000 SW coupling socket weld for welding high pressure stainless steel socket cup coupling fitting for pipe 304L 3000
Informacje
Coupling 1/2'' socket weld 304L cl.3000 - belongs to the group of Socket Weld SW where the pipe is welded in the socket (inlet). Socket welded with a pipe form tight structure of the system. Socket Weld (SW) system ensures safety, durability and resistance to rupture of the system. Such welding is well praised by the welders. During welding, the pipe is inserted into the socket and does not move what ensures better freedom. The weld resists bigger pressures. SW fittings allow easy selection of the pressure of the system. Each fitting is stamped with size, grade, melt and pressure rating. All SW fittings have 3.1 certificates.
Advantages: pipe does not require bevelling for welding. Socket Weld fittings do not require special preparations, they are an alternative for threaded union pieces.
Other sizes available: 1/8’’ – ¼’’ - 3/8’’ - ½’’- ¾’’ – 1’’ – 1 ¼’’ – 1 ½’’ – 2’’ – 2 ½’’ – 3’’ – 3 ½’’ - 4’’
Steel grade 304/304L – it is standard stainless steel (SS 304L). The most versatile and most often used, available in a wide range of products. Has excellent forming and welding properties.
Application: corrosive conditions, chemical industry, food industry, architecture, automotive industry
Other name: 1.4301 1.4306 1.4307 AISI304L
More information about socket weld fittings you will find here>>
Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
