Butt weld elbow 60,3x3,2mm P265GH

Availability: on sale

Dispatched within: 24 hours

Gross price: €6.06

incl. 23% TAX, excl. shipping costs

Regular price:

6.06

Net price: €4.93

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 9713

Description

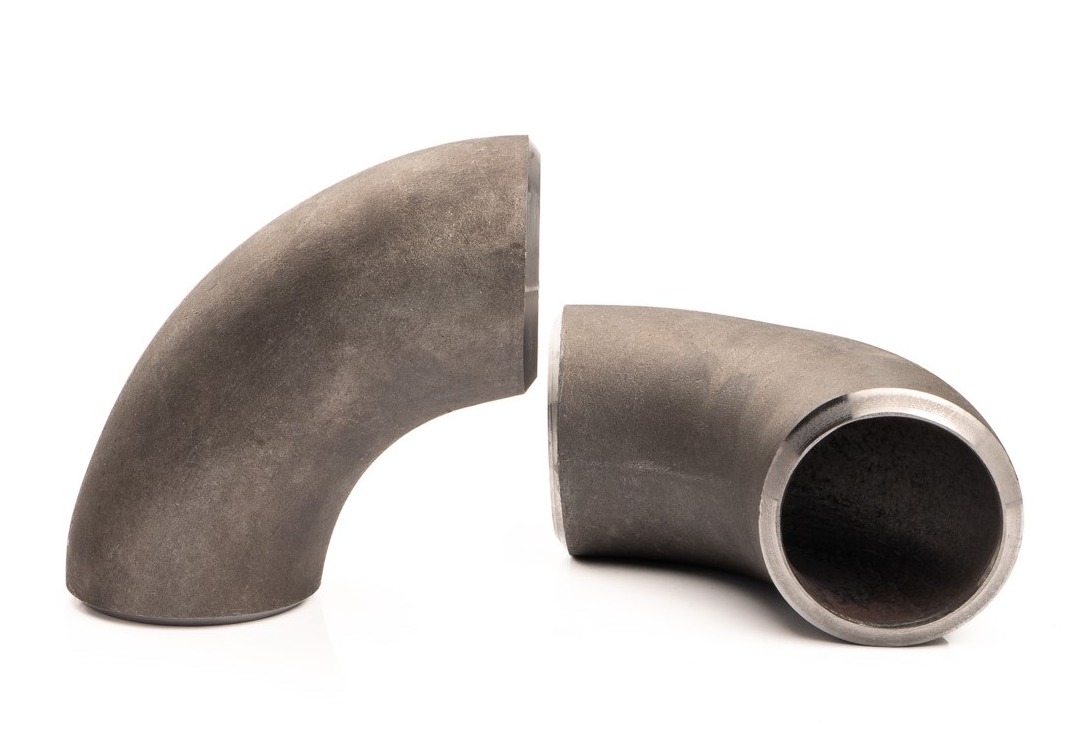

Butt weld elbow 60,3x3,2mm P265GH

Product Specifications:

outer wall dimension: 60,3mm
wall thickness: 3,2mm
grade: P265GH steel
according to DIN2605 standard
seamless elbow
3D radius R=76
black steel for welding
precision workmanship
certification 3.1 on request
application: industry, agriculture, construction, railings

Applications of Butt Weld Elbows

Butt Weld Elbows are essential components in piping systems used for:

Fluid Transfer: Ideal for transporting hot liquids and gases in oil and gas industries.
Pressure Applications: Suitable for pressure vessels and boiler systems.
Construction Needs: Perfect for constructing railings and structural supports.

Professionals in various industries utilize Butt Weld Elbows, notably:

Petrochemical Industry
Chemical Production
Oil and Gas
Construction
Agriculture

These industries rely on the durability and high performance of the P265GH butt weld elbows to ensure the reliability of their piping systems.

Other name: Butt weld elbow 60,3x3,2mm P265GH DIN2605 b/s 3D weldable steel elbow carbon steel S235GH P235GH hatch 2'' DN50

Advantages of P265GH Carbon Steel

P265GH carbon steel is primarily a weldable steel grade that is suitable for working at elevated temperatures. It is undoubtedly widely used in the petrochemical, chemical and oil and gas industries. It is used for pressure vessels and boiler vessels, and for pipes that transport hot liquids. It is a standard European steel

Certainly, the advantages of this grade of steel include: good weldability, good cold and hot forming properties

P265GH is recognized for its suitability in high-temperature applications. Key benefits include:

Excellent Weldability: This steel grade is designed for easy and effective welding, facilitating quick installation.
Good Cold and Hot Forming Properties: P265GH can be easily formed into various shapes, accommodating different industrial requirements.

Get in Touch for High-Quality Butt Weld Elbows

More information about elbows here>>

If you’re in need of Butt Weld Elbows 60.3x3.2mm P265GH, contact us today! We offer precision-engineered products tailored to meet your specifications. Our offer includes also elbows in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Bend Angle	90 Degrees
Radius	3D
Steel Grade	P265GH ~ P285GH
Material	Carbon Steel
Size	DN50 ~ 2'' ~ 57mm ~ 60,3mm
