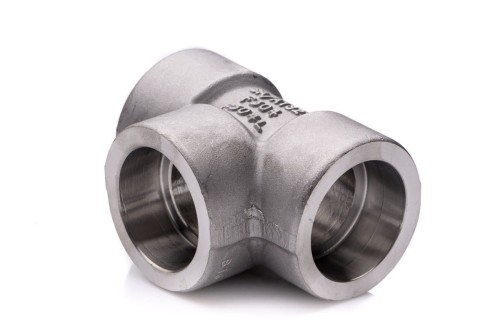

Socket Weld Tee 2" 304L Class 3000

Trójnik 2'' socket weld 304L kl.3000.jpg

Availability: on sale

Dispatched within: 14 days

Gross price: €122.69

incl. 23% TAX, excl. shipping costs

Regular price:

122.69

Net price: €99.75

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 9855PU

Description

Socket Weld Tee 2" 304L Class 3000

Size: 2"
Fits pipe: 2" (60.3 mm, DN50)
Material: 304L stainless steel (1.4301)
Pressure class: Class 3000 (206 bar)
High-pressure socket weld tee
Manufactured according to ANSI B16.11
Excellent weldability
Applications: Industry, steelworks, refineries, boilers, pressure vessels, ships, marine industry, machinery, and high-demand piping systems
Properties: Suitable for high-pressure and high-temperature applications
3.1 material certificate available on request (free of charge)
Origin: European Union

trójnik socket weld 3000 304l dn50 tee

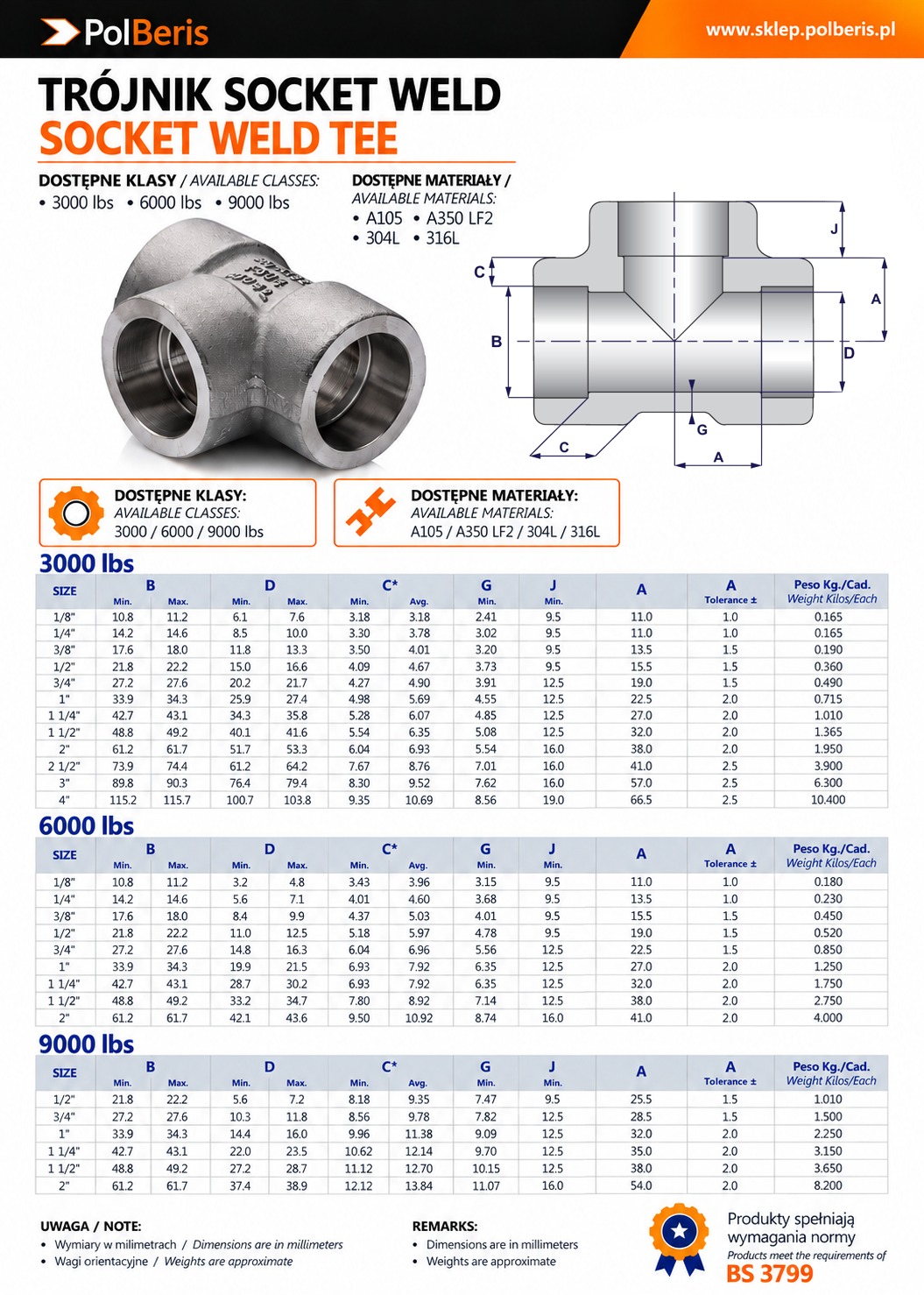

B = 2" (61.2–61.7 mm)

Alternative Name: Socket Weld Tee 2" 304L Class 3000, SW welding tee, socket weld fitting, forged socket weld tee, heavy wall socket weld tee, stainless steel socket tee, reducing socket tee.

Information

The 2" Socket Weld Tee 304L Class 3000 belongs to the family of high-pressure Socket Weld (SW) fittings, where the pipe is welded into a recessed socket. The socket and pipe form a strong, leak-tight joint, providing exceptional safety, durability, and reliability.

The Socket Weld (SW) system is highly appreciated by welders because the pipe is inserted into the socket before welding, preventing movement during assembly and making welding easier. Socket weld joints are designed to withstand higher pressures than many conventional welded connections. Each fitting is permanently marked with its size, material grade, heat number, and pressure class. All SW fittings are available with a 3.1 material certificate.

304 / 304L stainless steel is the standard corrosion-resistant stainless steel grade (SS304L). It is the most versatile and widely used stainless steel, offering excellent corrosion resistance together with outstanding forming and welding properties.

Typical applications include chemical processing, food industry, architecture, and automotive industries.

Also known as: 1.4301, 1.4306, 1.4307, AISI304L, 0H18N9, X5CrNi18-10, A2.

Material

304L stainless steel (1.4301)
Corrosion resistant
Excellent weldability

Advantages

High-pressure design
Excellent weldability
Heavy wall forged construction
High temperature resistance
Corrosion resistant
Non-magnetic stainless steel
Excellent ductility
High mechanical strength
Wide operating temperature range
Manufactured according to ANSI B16.11

Applications

Chemical industry, food processing, steel plants, refineries, boilers, pressure vessels, marine industry, shipbuilding, machinery, and industrial high-pressure piping systems.

We also offer Socket Weld fittings in many other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Learn more about Socket Weld fittings here >>
