Sockolet 1/2" x 2'' - 2 1/2'' 316L cl. 3000

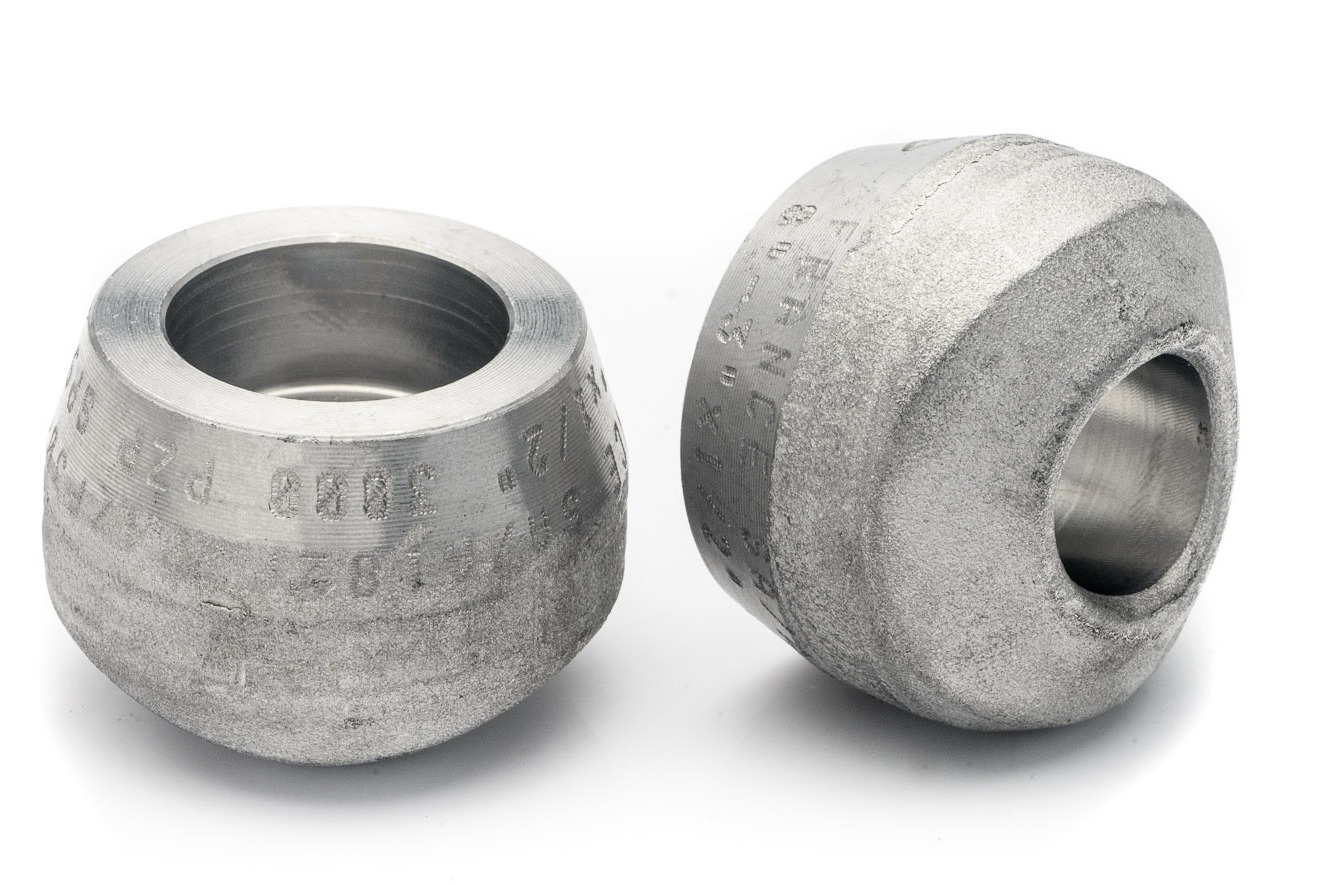

Sockolet SW 12''x 3''-8'' 304L kl. 3000.jpg

Availability: on sale

Dispatched within: 14 days

Gross price: €43.13

incl. 23% TAX, excl. shipping costs

Regular price:

43.13

Net price: €35.07

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 10581B

Description

Sockolet 1/2" x 2'' - 2 1/2'' 316L cl. 3000

size: 1/2'' x 2'' - 21/2''
allows to join pipe 1/2'' with pipe from 2'' to 2 1/2''
material: stainless steel 316L (1.4404)
steel for welding klasa ciśnieniowa: 3000 lbs (tj. 206bar)
dimensions acc. to MSS SP 97
zastosowanie sockoletów: instalacje przemysłowe wysokociśnieniowe, do wysokiej temperatury
atestation 3..1 on request (free of charge)
origin: European Union

Other name: Sockolet 1/2" x 2'' - 2 1/2'' 316L cl. 3000 sockolet fitting welding branch steel sockolet screwbranches stainless steel 1.4404

Information

Sockolet 1/2" x 2'' - 2 1/2'' 316L cl. 3000 - SW-OUTLET steel fitting belongs to the group of "high-pressure fittings", where the pipe is welded in a groove (pocket). The pocket is welded to the pipe to form an airtight installation structure. The Socket Weld (SW) system guarantees the safety, durability and inseparability of the installation. With SW fittings, we can easily select the installation pressure. Each fitting is stamped with size, grade, melt and pressure class. All SW fittings are certified 3.1.

Available options:

material: carbon steel SA 105 / carbon steel for low temperatures (to -50°). A350 LF2 CL.1
material: stainless steel 304 / SA A182 / F304/L / TP304 / TP304L / A312 / 316 / SA A182 / F316L / F321 / F347
threaded
socket weld (SW)
thread– SW
products with certification 3.1
origin: European Union

Available sizes: 1/8’’ – ¼’’ – 3/8’’ – ½’’- ¾’’ – 1’’ – 1 ¼’’ – 1 ½’’ – 2’’ – 2 ½’’ – 3’’ - 4''

Application: refineries, metallurgy, marine industry, high pressure installations, high requirements installations, for high temperature A105, for low temperature LF2, boilers, pressure vessels, hydraulic installations, outdoor installations, oil and gas industry.

Marking: sockolet has stamped size, pressure class, grade, melt number and not always thread type. Markings are made in accordance with applicable standards.

Steel grade 316 / 316L - is undoubtedly a very popular stainless steel with high corrosion resistance. It has excellent welding and forming properties. It is noteworthy that steel grade 316 and 316L are of better quality than steel grade 304.

Other name: DIN 1.4401 1.4404 SS 316 AISI316 AISI316L SS316 SS316L

Advantages of 316 / 316L grade: non-magnetic steel, excellent ductility, excellent impact strength, excellent weldability, good strength, wide operating temperature range

More about threadolets, weldolets, sockolets etc you may find here>>

Our offer includes also weldolets in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Branch Fitting Type	Sockolet
Material	Stainless Steel
Size	1/2''
Connection Type	Weld End
