Socket Weld Coupling 2" 316L Class 3000 ANSI B16.11

• Size: 2"

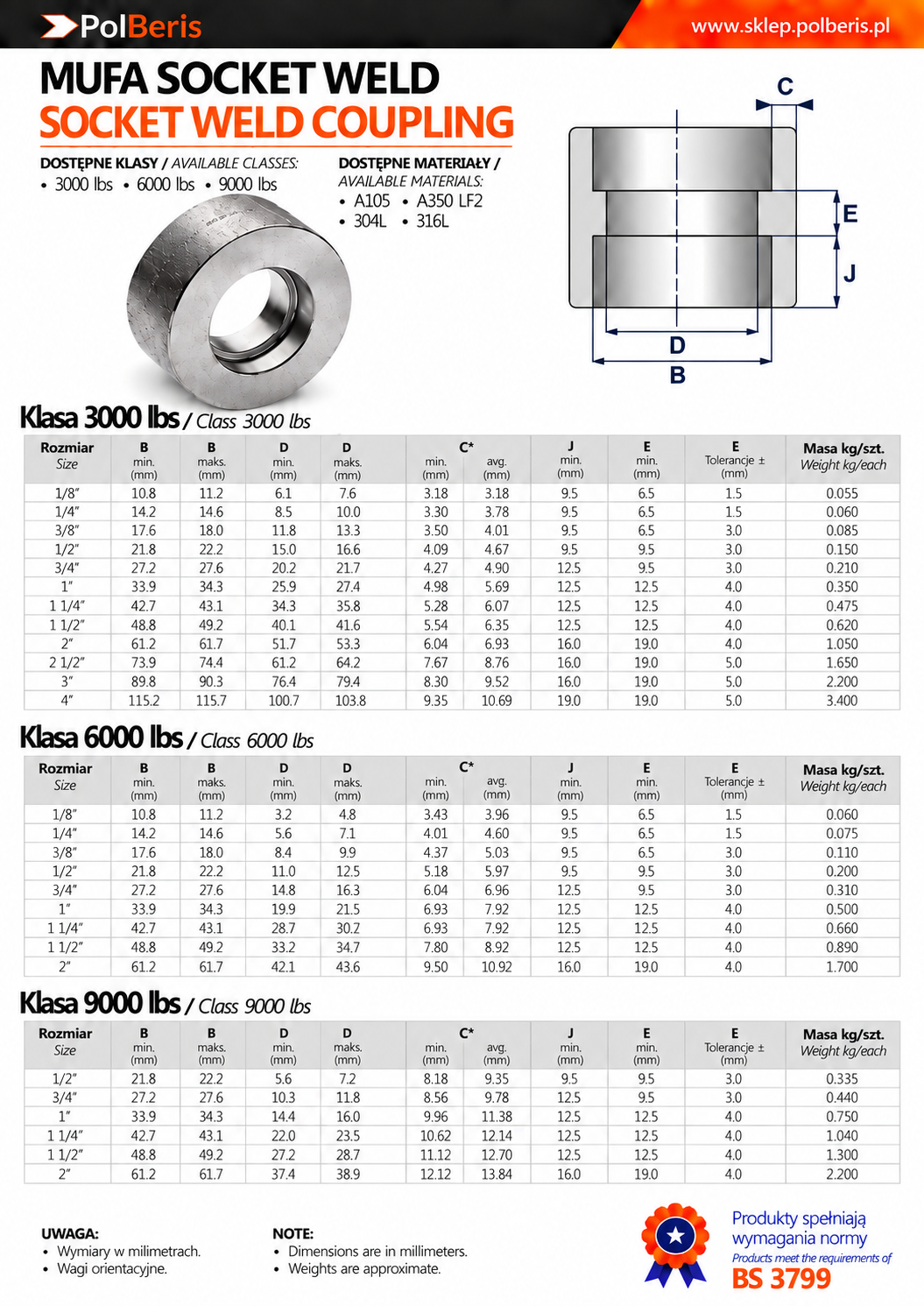

• Dimension B: 61.2–61.7 mm
• Suitable for pipe: DN50 (60.30 mm)
• Pressure class: Class 3000 (206 bar)
• Socket Weld fitting manufactured to ANSI B16.11
• Material grade: 316L stainless steel (1.4404)
• Suitable for welding
• Applications: Boilers, high-pressure systems, high-temperature installations, refineries, marine industry, steelworks
• 3.1 material certificate available on request (free of charge)
• Origin: European Union

Alternative Name

Socket Weld Coupling 2" 316L Class 3000 ANSI B16.11, Stainless Steel Socket Weld Coupling, SW Coupling, Weld Socket Coupling, Stainless Steel Weld Fitting, Pipe Coupling SW

Information

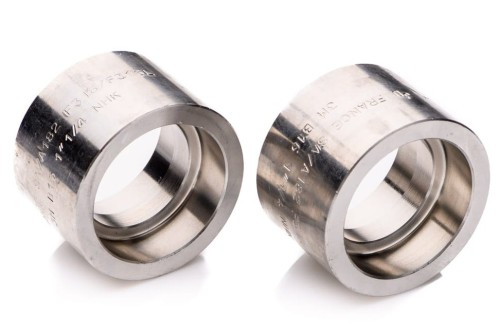

The 2" Socket Weld Coupling 316L Class 3000 ANSI B16.11 belongs to the group of high-pressure Socket Weld fittings, where the pipe is inserted into the socket before welding. The welded socket creates a strong, leak-tight connection. The Socket Weld (SW) system provides safety, durability, and permanent pipe joints. SW fittings also make it easy to select the correct pressure class for the installation.

Each fitting is permanently marked with its size, material grade, heat number, and pressure class. All Socket Weld fittings are available with a 3.1 material certificate.

Advantages

• Pipe end preparation without beveling
• No special preparation required before welding
• Alternative to threaded fittings
• Permanent and leak-tight connection
• Suitable for high-pressure applications

Marking

Each fitting is permanently marked with:

• Size
• Material grade
• Heat number
• Pressure class
• Thread type (where applicable)

Manufacturing and marking comply with the applicable standards.

Material

316 / 316L stainless steel is one of the most widely used corrosion-resistant stainless steels. It offers excellent weldability and formability.

Alternative material designations: DIN 1.4401, DIN 1.4404, SS316, SS316L, AISI 316, AISI 316L.

Applications of 316 / 316L Stainless Steel

• Heat exchangers
• Pharmaceutical equipment
• Dairy industry
• Brewing industry
• Marine fittings
• Coastal architecture
• Food processing industry

Advantages of 316 / 316L Stainless Steel

• Non-magnetic stainless steel
• Excellent ductility
• Excellent impact strength
• Outstanding weldability
• Good mechanical strength
• Wide operating temperature range

Available Sizes

1/8" • 1/4" • 3/8" • 1/2" • 3/4" • 1" • 1-1/4" • 1-1/2" • 2" • 2-1/2" • 3" • 3-1/2" • 4"

We also offer Socket Weld couplings in other sizes on request. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.
