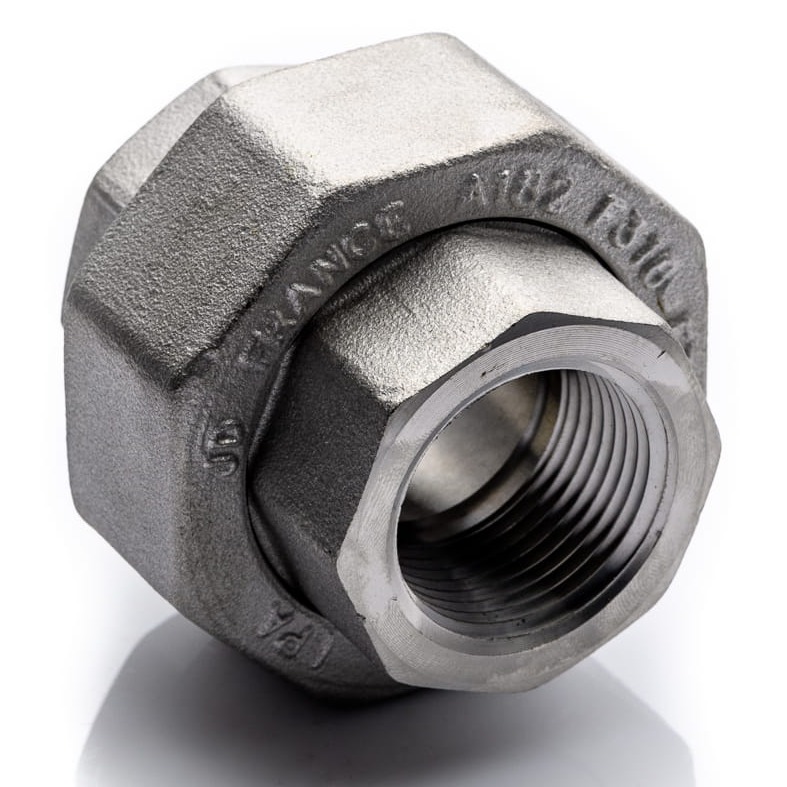

Union 1/2'' NPT 316L cl.3000

Śrubunek 1/2'' NPT 316L kl.3000 holender stożkowy wysokociśnieniowy gwinty wewnętrzne UNION A182A 182m-17 f316l PED FF.jpg

Availability: last items

Dispatched within: 24 hours

Gross price: €48.20

incl. 23% TAX, excl. shipping costs

Regular price:

48.20

Net price: €39.18

excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 10504K

Description

Union 1/2'' NPT 316L cl.3000

size: 1/2'' (thread diameter is 18,3 ÷ 18,7mm)
thread: NPT (conical)
material: acid-resistant 316L stainless steel (1.4404)
pressure class: 3000Psi (206bar)
application: industry, metallurgy, refineries, boilers, tanks
characteristics: for high pressure, for high temperature
3.1 certificate on request (free of charge)
data on the certificate: ASTM A182/A 182M-17 F316L/ASME SA 182/SA 182M Sect II Part A Ed.2017 NF EN10272 (BARS) NF EN10222-5 (Forgings) 1.4404 PED 2014/68/EU

A [mm] = 27,69

C [mm] = 3,73

D [mm] = od 17,06 do 17,86

G [mm] = 3,68

H [mm] = 14,00

L [mm] = 49,02

Other name: Union 1/2'' NPT 316L cl.3000 double-sided fitting nipple threaded union 1/2'' NPT MF FM A182 316L cl.3000 conical high-pressure fitting UNION A182/A 182m-17 F316L F/M

Information

Union 1/2'' NPT 316L cl.3000 - is a two-part fitting used for quick connection and disconnection of plumbing systems. In the middle it has a conical seal, praised by plumbers, because it does not require additional seals.

Steel grade 316 / 316L - is a very popular stainless steel with high corrosion resistance. It has excellent welding and forming properties.

Advantages of grade 316 / 316L: non-magnetic steel, excellent ductility, excellent impact strength, excellent weldability, good strength, wide operating temperature range.

Other name: DIN 1.4401 1.4404 SS 316 AISI316 AISI316L SS316 SS316L.

Application: pharmaceutical equipment, dairy equipment, brewing industry, marine fittings, coastal architecture, food industry, industrial machinery, agricultural machinery, automotive.

More information about unions can be found here>>

Our offer includes a wide range of high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
