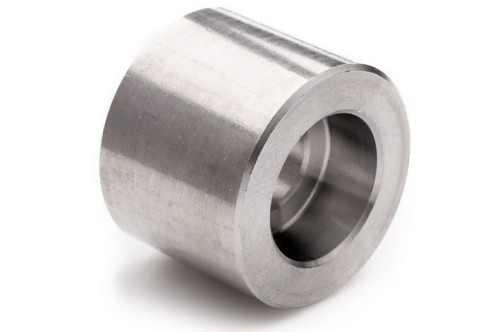

The 1/2" SW × 1/4" BSP Reducing Socket Weld Coupling 304L Class 3000 belongs to the group of high-pressure Socket Weld fittings, where the pipe is inserted into the socket before welding. The welded socket creates a strong, leak-tight connection. The Socket Weld (SW) system ensures safety, durability, and permanent pipe joints. SW fittings make it easy to select the correct pressure class for the installation.

Each fitting is permanently marked with its size, material grade, heat number, and pressure class. All Socket Weld fittings are available with a 3.1 material certificate.

Advantages

• Pipe end preparation without beveling
• No special preparation required before welding
• Alternative to threaded fittings
• Permanent and leak-tight connection
• Suitable for high-pressure applications

Marking

Each fitting is permanently marked with:

• Size
• Material grade
• Heat number
• Pressure class
• Thread type (where applicable)

Manufacturing and marking comply with the applicable standards.

Material

304L stainless steel offers excellent corrosion resistance, outstanding weldability, and good mechanical properties. It is widely used in industrial piping systems and welded installations.

Alternative material designations: DIN 1.4307, AISI 304L, SS304L.

Applications

• Industrial pressure systems
• Steel industry
• Marine industry
• Refineries
• Process piping
• General industrial installations

Available Sizes

1/8" • 1/4" • 3/8" • 1/2" • 3/4" • 1" • 1-1/4" • 1-1/2" • 2" • 2-1/2" • 3" • 3-1/2" • 4"

We also offer Socket Weld fittings in many other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.
