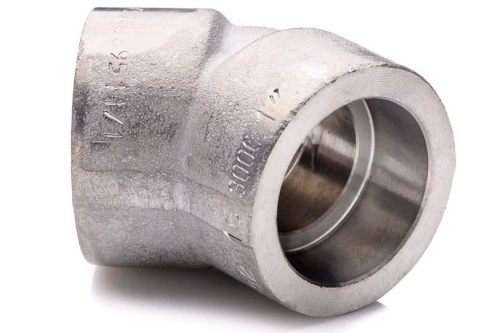

Elbow 1/2" Socket Weld 316L Class 3000 45°

• size: 1/2"

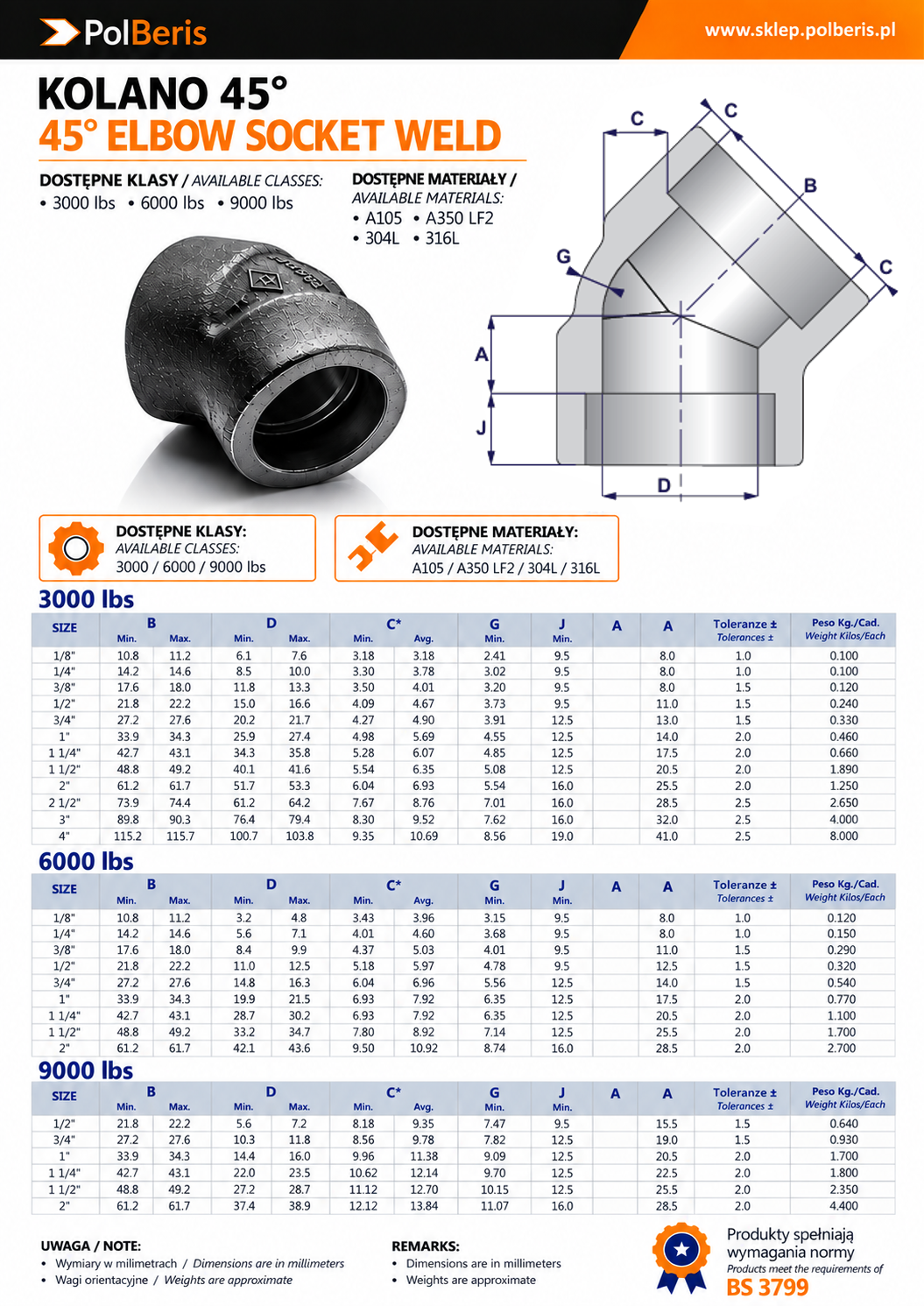

• dimension B = min. 21.8mm – max. 22.2mm
• angle: 45°
• type: Socket Weld (SW)
• pressure class: 3000 lbs (206 bar)
• material grade: 316L stainless steel for welding
• socket weld elbow with SW socket
• application: high-pressure industrial installations, high-temperature installations, refineries, marine industry, food industry, steel industry, demanding industrial installations, ships, hydraulic systems
• socket weld fittings manufactured according to ANSI B16.11
• 3.1 certificate available on request (free of charge)
• origin: European Union

Alternative Name: Elbow 1/2" Socket Weld 316L Class 3000 45°, socket elbow, socket fitting, SW elbow, socket weld elbow, angle fitting, socket weld fitting

Elbow 1/2" Socket Weld 316L Class 3000 45°

Information

Socket Weld (SW) fittings belong to the group of high-pressure fittings, where the pipe is welded into the socket. The welded socket creates a leak-tight piping system. The Socket Weld (SW) system ensures safety, durability, and permanent installation integrity. SW fittings make it easy to select the correct pressure class. Each fitting is marked with its size, material grade, heat number, and pressure class. All SW fittings are available with a 3.1 certificate.

Advantages: the pipe does not require beveling before welding. Socket Weld fittings require no special preparation and are an alternative to threaded fittings.

Limitations: not recommended for radioactive installations.

Available sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 3 1/2", 4".

Material Information

316 / 316L stainless steel is a very popular corrosion-resistant stainless steel with excellent welding and forming properties. It offers higher quality and better corrosion resistance than grade 304.

Alternative names for 316: DIN 1.4401, 1.4404, SS316, AISI316, AISI316L, SS316L

Applications: socket weld fittings, socket weld elbows, tees, reducers, flanges, pipes, bars, plates, flat bars, valves, heads, heat exchangers, pharmaceutical equipment, dairy equipment, brewing industry, marine fittings, coastal architecture, food industry.
