Socket Weld Union 1 1/2'' A105 Class 3000

Śrubunek socket weld do spawania A105.jpg

Availability: on sale

Dispatched within: 24 hours

Gross price: €38.72

incl. 23% TAX, excl. shipping costs

Regular price:

38.72

Net price: €31.48

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 13298A

Description

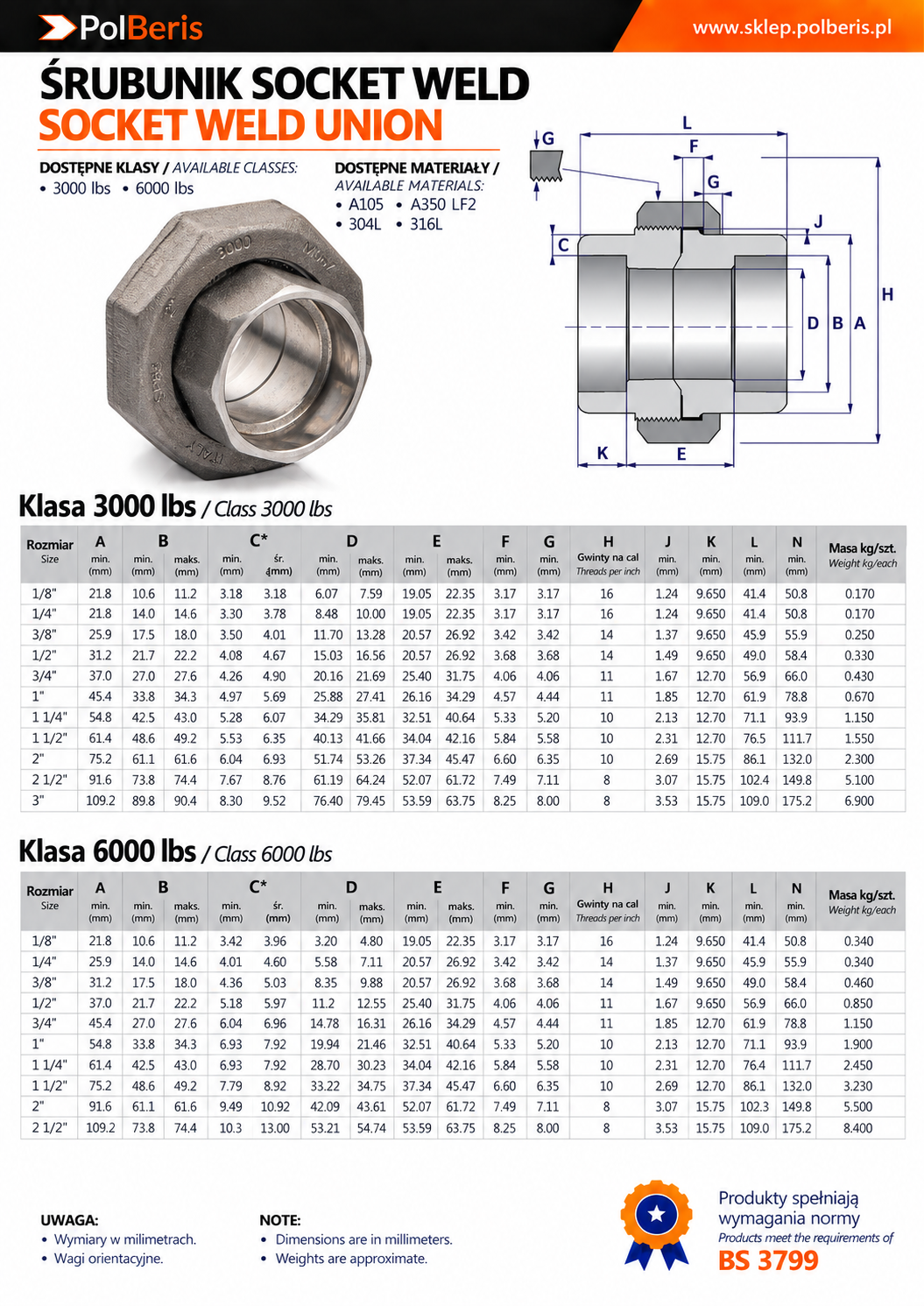

Socket Weld Union 1 1/2'' A105 Class 3000

Size: 1 1/2'' (fits 48.3 mm pipe)
Length (L): 76.5 mm
Dimension (B): 48.6–49.2 mm
Material: ASTM A105 forged carbon steel (equivalent to P245GH, P285GH)
Pressure class: Class 3000 (206 bar)
Manufactured according to: MSS SP-83
Seal type: Metal-to-metal (cone seat)
Socket Weld (SW) union
Excellent weldability
Applications: industry, steel plants, refineries, boilers, pressure vessels
Suitable for high-pressure and high-temperature service
3.1 material certificate available on request (free of charge)
Origin: European Union

Alternative Name: Socket Weld Union 1 1/2'' A105 Class 3000, SW union, forged socket weld union, high-pressure union, MSS SP-83 union, female × female SW fitting.

Information

Socket Weld Union 1 1/2'' A105 Class 3000 is a two-piece Socket Weld union designed for quick assembly and disassembly of high-pressure piping systems. The metal-to-metal cone seat provides a reliable leak-tight seal, while the Socket Weld design ensures a strong and permanent welded connection.

Socket Weld (SW) System

Socket Weld fittings belong to the high-pressure forged fitting category. The pipe is inserted into the socket before welding, ensuring precise alignment and excellent weld quality. This connection method provides maximum strength and reliability in pressure systems.

Each fitting is permanently marked with its size, material grade, heat number, and pressure class. A 3.1 material certificate is available on request.

ASTM A105 Carbon Steel

ASTM A105 is a forged carbon steel widely used for piping components, flanges, valves, and forged fittings operating at ambient and elevated temperatures. It offers excellent weldability, machinability, and mechanical strength for demanding pressure applications.

Equivalent grades: 1.0460, C22.8, P245GH, P265GH.

Applications

Industrial piping
Steel industry
Oil refineries
Boilers
Pressure vessels
Hydraulic systems
High-pressure installations
High-temperature installations

We also offer Socket Weld unions in other sizes and pressure classes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Socket Weld Union 1 1/2'' A105 Class 3000 is also available in other sizes from our product range.

Learn more about Socket Weld unions here >>

Technical data

Shape	Straight
Size	1 1/2''
Material	Carbon Steel
Connection Type 1	Weld End
Connection Type 2	Weld End
