Tee 1 1/2" Socket Weld A105 Class 6000

Trójnik 11/2'' 6000 SW A105 kielichowy na rurę DN40 stal kotłowa do spawania P245GH P285GH socket weld 48.3mm

Availability: on sale

Dispatched within: 2-3 weeks

Gross price: €31.36

incl. 23% TAX, excl. shipping costs

Regular price:

31.36

Net price: €25.49

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 11315C

Description

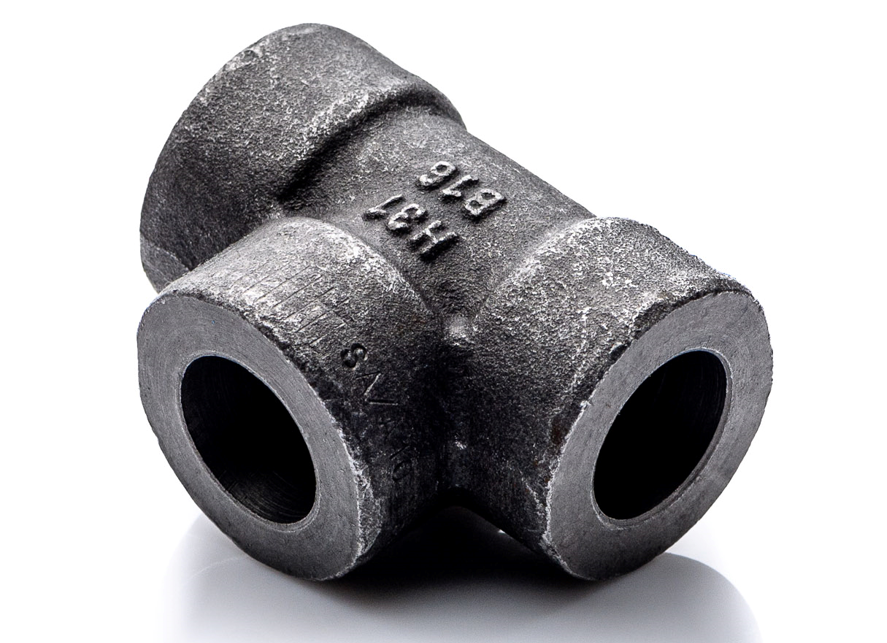

Tee 1 1/2" Socket Weld A105 Class 6000

size: 1 1/2" (fits 48.3mm pipe)
socket weld tee for welding
pressure class: 6000 PSI (413 bar)
high-pressure tee
Socket Weld fittings manufactured according to ANSI B16.11
material grade: A105 (boiler steel equivalent to P245GH, P285GH)
application: boilers, high-pressure installations, high-temperature installations, refineries, marine industry
3.1 certificate available on request (free of charge)
origin: European Union

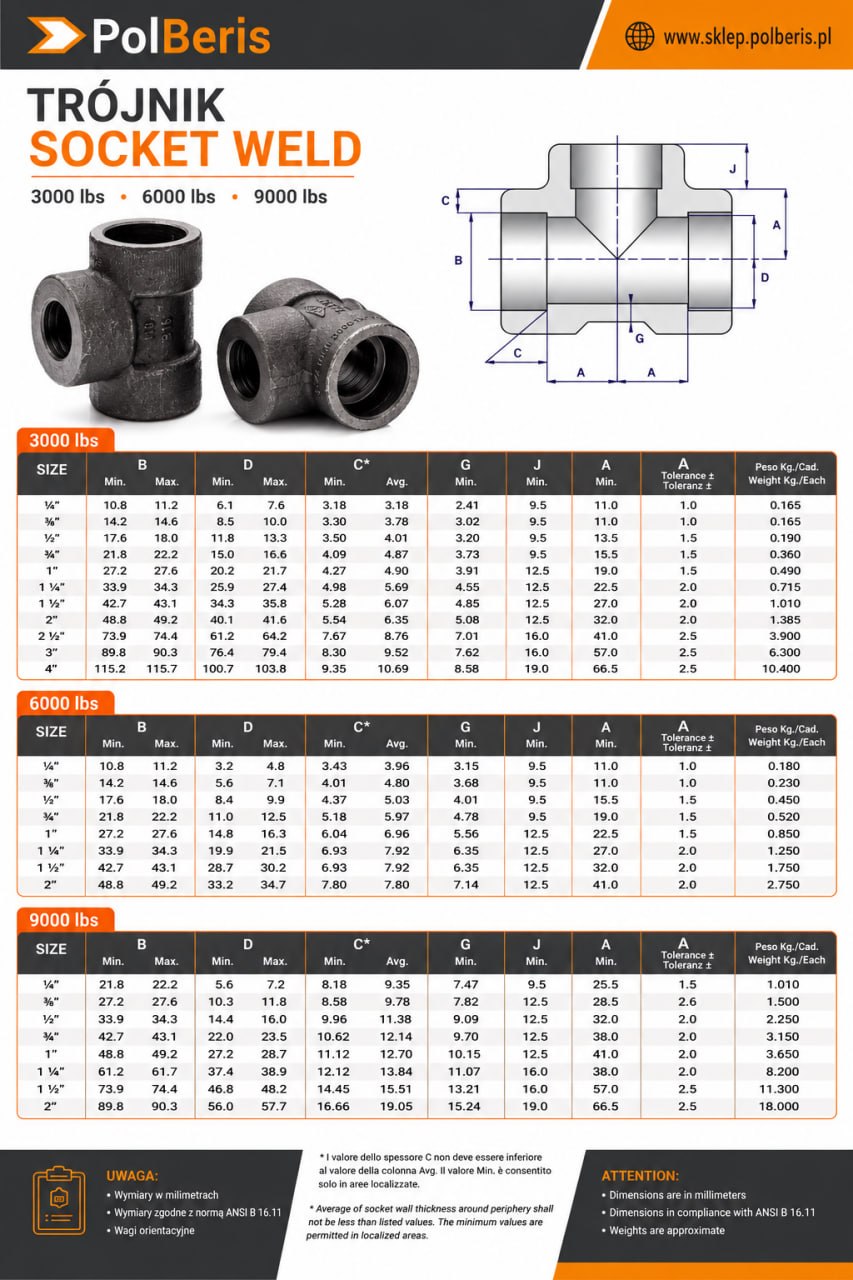

dimension D: 48.8–49.2mm

Socket Weld fittings manufactured according to ANSI B16.11

Alternative Name: Equal Tee 1 1/2" Socket Weld A105 Class 6000 Socket Weld Equal Tee Carbon Steel Welding Fitting Boiler Steel P245GH P285GH ANSI B16.11

Tee 1 1/2" Socket Weld A105 Class 6000

Information

Socket Weld (SW) fittings belong to the group of high-pressure fittings in which the pipe is welded into a socket. The welded socket creates a leak-tight piping system. The Socket Weld (SW) system ensures safety, durability and permanent joint integrity. Socket Weld fittings make it easy to select the correct pressure class. Every fitting is marked with the size, material grade, heat number and pressure class. All SW fittings are available with a 3.1 certificate.

A105 is a carbon steel commonly used for piping components, flanges and fittings. This carbon steel grade is intended for pressure systems operating at ambient and elevated temperatures. It offers good machinability, as with other low-alloy steels, and excellent weldability.

There are limitations on the use of A105. Forgings manufactured from A105 should not exceed 4540 kg. Heavier forgings are manufactured according to ASTM A266.

This material is commonly used for Socket Weld fittings, elbows, tees, couplings, unions, flanges and other piping components.

Applications: oil and gas transmission, petrochemical plants, power stations and similar industrial installations.

Similar material grades: 1.0460, C22.8, P245GH, P265GH

More information you will find here >>

Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
