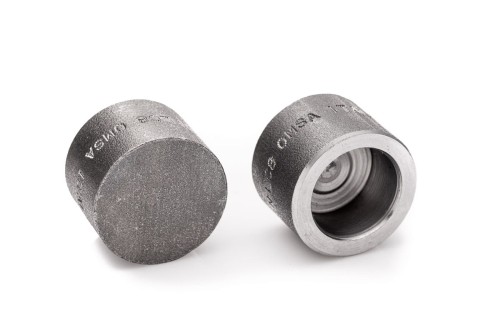

• Socket Weld Cap 1 1/2'' SW A350 LF2 Class 3000

  • Size: 1 1/2'' (DN40)
  • Fits pipe with an outside diameter of approximately 48.3 mm
  • Connection: Socket Weld (SW)
  • Material: ASTM A350 LF2 carbon steel
  • Suitable for low-temperature service
  • Pressure class: Class 3000 (206 bar)
  • Operating temperature: -46°C to +343°C
  • Charpy impact tested at -46°C
  • Suitable for welding
  • 3.1 material certificate available on request (free of charge)
  • Origin: European Union


Alternative Name: Socket Weld Cap 1 1/2'' SW A350 LF2 Class 3000, weld cap, SW pipe cap, socket weld end cap, forged socket weld cap, pressure cap, welding cap, low-temperature socket weld cap.

Information

Socket Weld Cap 1 1/2'' SW A350 LF2 Class 3000 is a forged high-pressure fitting designed to permanently seal the end of a pipe in Socket Weld (SW) piping systems. The pipe is inserted into the socket and welded, creating a strong, leak-tight, and permanent joint suitable for demanding pressure applications.

Socket Weld fittings are widely used in high-pressure piping systems where safety, durability, and reliability are essential. Each fitting is permanently marked with its size, material grade, heat number, and pressure class for full traceability.

Material

• Material: ASTM A350 LF2 carbon steel
• Suitable for low-temperature service
• Operating temperature: -46°C to +343°C
• Charpy impact tested at -46°C
• Excellent weldability
• 3.1 material certificate available on request (free of charge)
• Origin: European Union

Comparable material grades: P355NL1, P355NH, P355QH, L360NB, 1.0566, 1.0562, ASTM A420 WPL6, ASTM A333 Grade 6.

Advantages

• Suitable for low-temperature service
• High mechanical strength
• Leak-tight welded connection
• Excellent pressure resistance
• Long service life
• Full material traceability
• Manufactured for Class 3000 pressure systems

Applications

• Pressure piping systems
• Boilers
• Refineries
• Petrochemical plants
• Oil and gas industry
• Steel mills
• Marine industry
• Pressure vessels
• Hydraulic systems
• Outdoor installations

We also offer Socket Weld fittings in many other sizes and materials. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Learn more about Socket Weld fittings here >>
