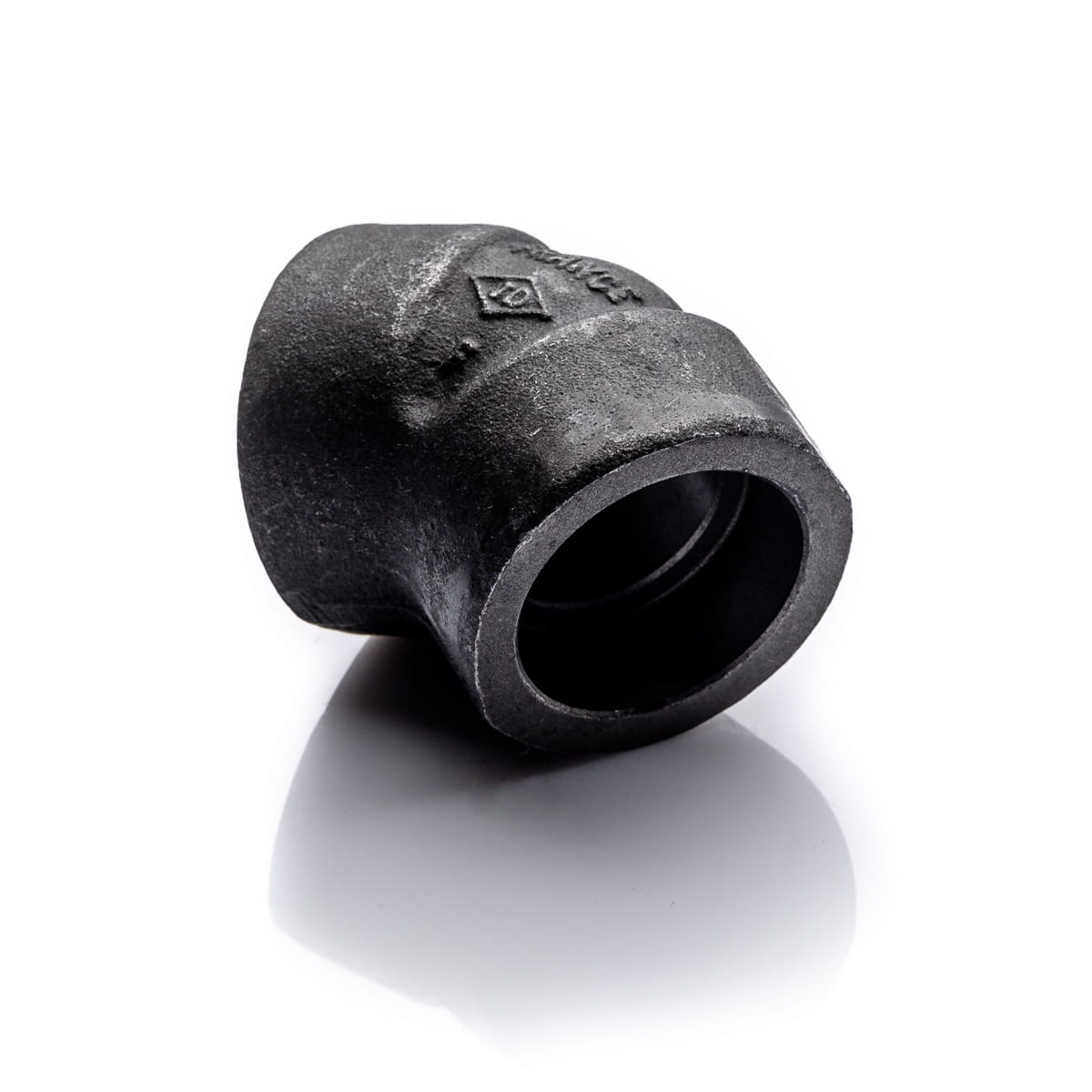

Elbow 1/4'' 45° Socket Weld SW A105 Class 3000

Kolano 1 " 3000 SW A105 45st DN25 33,7 mm stalowe do spawania łącznik do rur 1 1kształtka kielichowa

Availability: on sale

Dispatched within: 14 days

Gross price: €5.84

incl. 23% TAX, excl. shipping costs

Regular price:

5.84

Net price: €4.75

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 9102B

Description

Elbow 1/4'' 45° Socket Weld SW A105 Class 3000

Size: 1/4''
Fits DN8 pipe (outside diameter approximately 13.5 mm)
Connection: Socket Weld (SW)
Angle: 45°
Pressure class: Class 3000 (206 bar)
Material: ASTM A105 carbon steel
Forged Socket Weld fitting
Suitable for welding

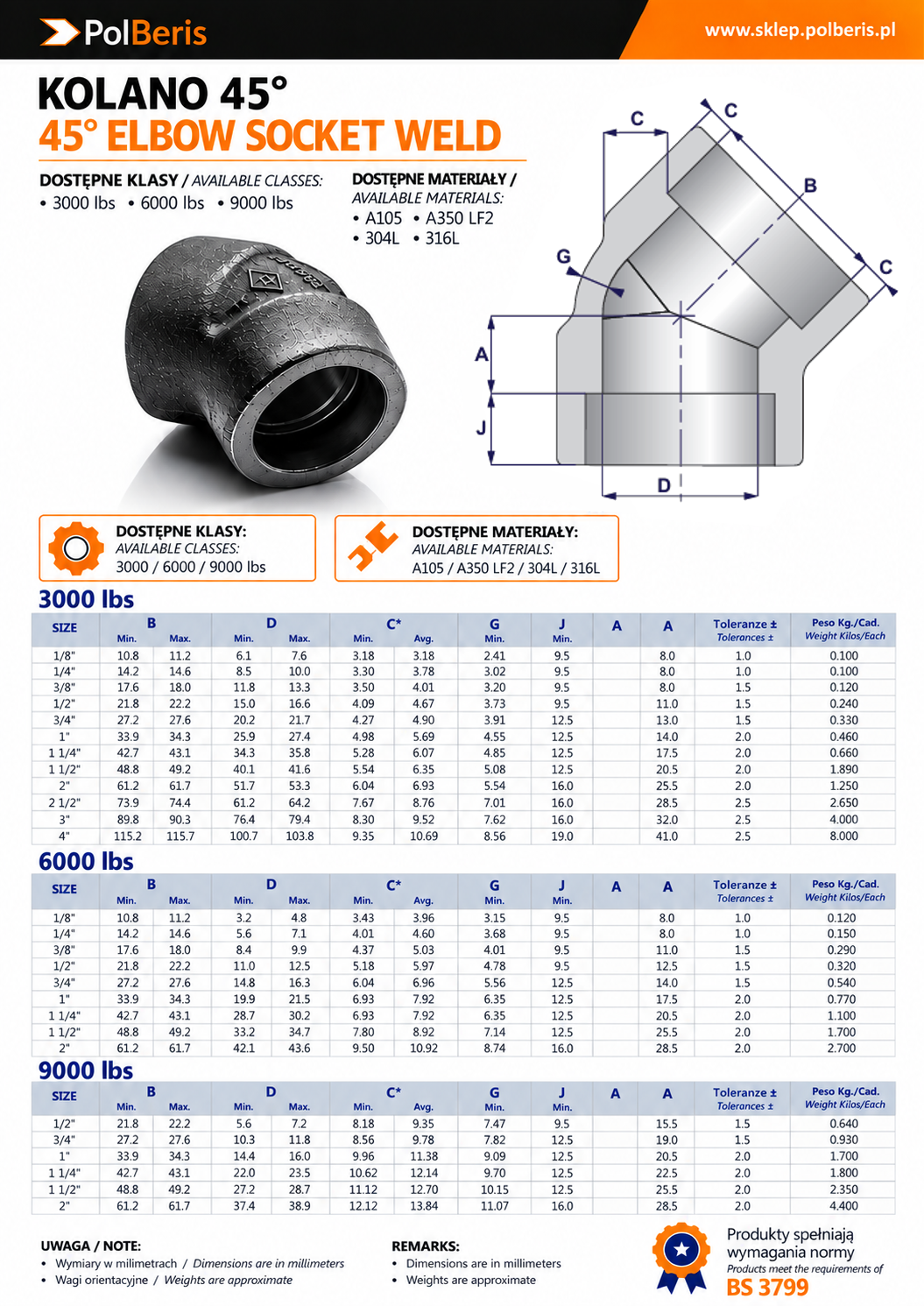

Dimension B: 1/4'' (14.2–14.6 mm)
Suitable for high-pressure and high-temperature service
3.1 material certificate available on request (free of charge)
Origin: European Union

Elbow 1/4'' 45° Socket Weld SW A105 Class 3000 is a forged high-pressure fitting designed for Socket Weld (SW) piping systems. The pipe is inserted into the socket before welding, creating a permanent, leak-tight joint with excellent mechanical strength.

Socket Weld fittings are widely used in high-pressure piping systems because they provide outstanding reliability, durability, and ease of installation. During welding, the pipe is supported by the socket, preventing movement and making alignment easier while producing a stronger welded joint.

Each fitting is permanently marked with its size, material grade, heat number, and pressure class. All Socket Weld fittings are available with a 3.1 material certificate upon request.

Material

Material: ASTM A105 carbon steel
Suitable for welding
High mechanical strength
Suitable for high-pressure piping
Suitable for high-temperature service
3.1 material certificate available on request (free of charge)
Origin: European Union

Comparable grades: 1.0460, C22.8, P245GH, P265GH.

Advantages

Leak-tight welded connection
Excellent weldability
High pressure resistance
High mechanical strength
Easy pipe alignment during welding
Long service life
Manufactured for Class 3000 (206 bar) systems

Applications

Pressure piping systems, high-temperature installations, boilers, marine industry, heavy industry, oil and gas industry, petrochemical plants, power generation, and central heating systems.

We also offer Socket Weld elbows in many other sizes and materials. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Learn more about Socket Weld fittings here >>

Technical data

Bend Angle	45 Degrees
Radius	Other
Steel Grade	A105
Material	Carbon Steel

Safety
