Union 1/4" Socket Weld A105 Class 3000
Regular price:
Regular price:
product unavailable
add to wish list
![Pin It](http://pinterest.com/pin/create/button/?url=https://sklep.polberis.pl/en_US/p/Union-14-Socket-Weld-A105-Class-3000/13889&media=//sklep.polberis.pl/userdata/public/gfx/27452/Srubunek-2-socket-weld-A105-kl.3000.jpg&description=Union 1/4" Socket Weld A105 Class 3000 "Pin It")
Description

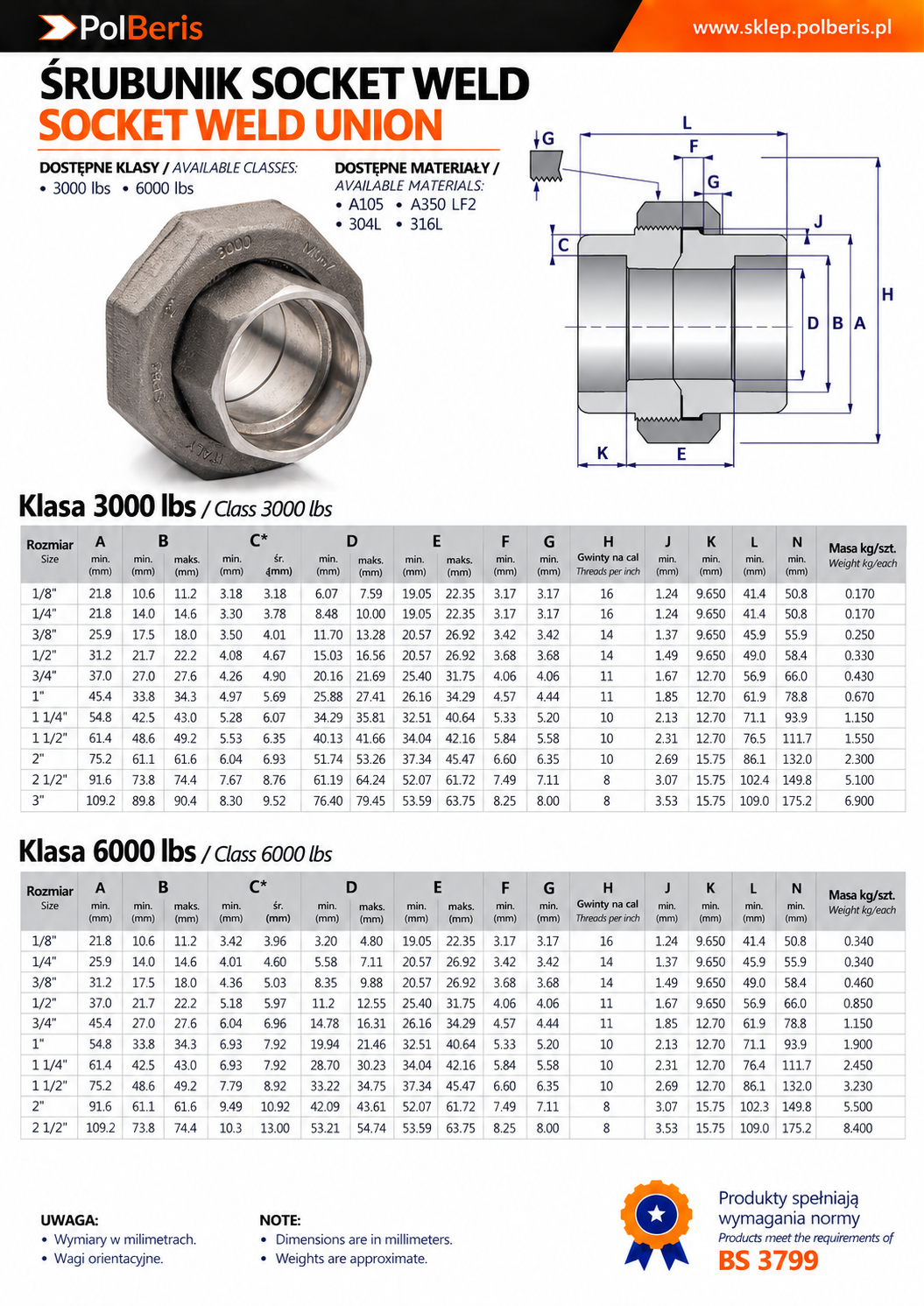

Union 1/4" Socket Weld A105 Class 3000
- size: 1/4" (fits pipe Ø13.5–14mm)
- length L = 45.0mm
- dimension B = 14.5mm
- material: A105 boiler steel
- pressure class: 3000 PSI (206 bar)
- dimensions according to MSS SP-83
- seal: metal-to-metal (cone)
- Socket Weld union
- application: industry, steel industry, refineries, boilers, pressure vessels
- properties: suitable for high-pressure and high-temperature applications
- 3.1 certificate available on request (free of charge)
- origin: European Union
Alternative Name: Union 1/4" Socket Weld A105 Class 3000 Socket Weld Union MSS SP-83 Boiler Union High Pressure Union Female Thread Union F-F P245GH P285GH Carbon Steel Socket Weld
Information about the Socket Weld Union
Union 1/4" Socket Weld A105 Class 3000 is a two-piece fitting designed for quick connection and disconnection of hydraulic piping systems.
Socket Weld (SW) fittings belong to the family of high-pressure fittings where the pipe is welded into a socket. The welded socket creates a leak-tight piping system. The Socket Weld (SW) system provides safety, durability and permanent joint integrity. Socket Weld fittings make it easy to select the correct pressure class. Every fitting is marked with the size, material grade, heat number and pressure class. All SW fittings are available with a 3.1 certificate.
A105 is a carbon steel commonly used for piping components, flanges and fittings. This carbon steel grade is intended primarily for pressure systems operating at ambient and elevated temperatures. It offers good machinability and excellent weldability.
Similar material grades: 1.0460, C22.8, P245GH, P265GH
More information about unions you may find here>>
Our offer includes also fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
Technical data
| Shape | Straight |
| Size | 1/4'' |
| Material | Carbon Steel |
| Connection Type 1 | Weld End |
| Connection Type 2 | Weld End |
