Elbow 1'' 90° Galvanized Malleable Iron
Regular price:
Regular price:
product unavailable
add to wish list
Description

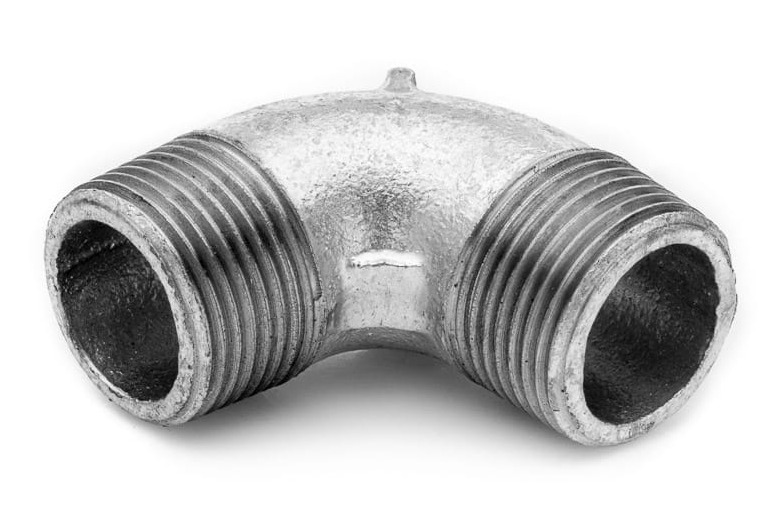

Elbow 1'' 90° Galvanized Malleable Iron
- Size: 1'' (thread diameter: 30.3–30.8 mm)
- Material: Hot-dip galvanized malleable iron
- Angle: 90°
- Male threads
- Applications: plumbing systems, industrial installations, central heating, water supply systems
Alternative Name: Elbow 1'' 90° Galvanized Malleable Iron, galvanized iron elbow, 90° threaded elbow, pipe elbow, threaded adapter, male × male elbow, galvanized threaded fitting.
Information
Elbow 1'' 90° Galvanized Malleable Iron is designed for changing the direction of flow in threaded piping systems. It is widely used in water installations, central heating systems, and general industrial applications where durable threaded connections are required.
The fitting is manufactured from malleable iron and protected with a hot-dip galvanized coating, providing excellent resistance to corrosion and atmospheric conditions.
Technical Specifications
- Maximum working pressure: 25 bar at temperatures from -20°C to +120°C
- Maximum working pressure: 20–25 bar at temperatures from -20°C to +300°C
- Manufactured according to: EN 10242
- Threads: External tapered R and internal parallel Rp, compliant with ISO 7-1
- Size permanently marked on the fitting
Applications
- Cold and hot water systems
- Central heating installations
- Industrial piping
- General plumbing systems
Available Sizes
1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', 2 1/2'', 3'', 4''.
The galvanized malleable iron fitting range also includes:
- Elbows
- Reducing elbows
- Tees
- Reducing tees
- Reducers
- Short and long bends
- Couplings
- Reducing couplings
- Caps
- Plugs
- Unions
- Straight and reducing nipples
We also offer black malleable iron fittings (without galvanized coating).
If you have any questions, please contact us. Call +48 63 261 42 02 or send your enquiry to biuro@polberis.pl.
Elbow 1'' 90° Galvanized Malleable Iron is also available in other sizes from our product range.
Learn more about elbows and fittings here >>
