Extension 1/2''x3/8'' galvanized cast iron reduction

Przedłużka 1:2'' x 3:8'' GW-GZ żeliwo ocynk redukcja.png

Availability: on sale

Dispatched within: 24 hours

Gross price: €2.36

incl. 23% TAX, excl. shipping costs

Regular price:

2.36

Net price: €1.92

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor: Ji'nan Meide Casting

Product code: 11205D

Description

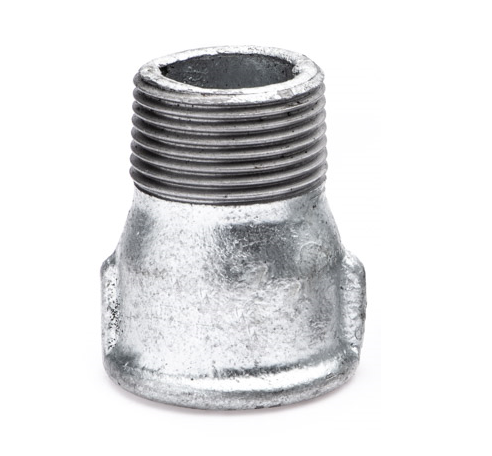

Extension 1/2''x3/8'' galvanized cast iron reduction

internal thread: 1/2'' (thread diameter is 18.6 ÷ 19mm)
external thread: 3/8'' (thread diameter is 16.3 ÷ 16.6mm)
material: cast iron
coating: zinc
other symbol: 246 / M4
application: water installations, industry, central heating

Other name: Extension 1/2''x3/8'' galvanized cast iron reduction adapter reduction socket internal and external threads standard EN10242 extension reduction

Information

Galvanized iron fittings are generally used in all industries and in central heating installations. Their main advantage is their price and general availability. They are used in installations with small requirements, for cold water and hot water.

Fittings are made of malleable cast iron. Their surface is protected by hot-dip galvanizing.

Maximum operating pressure: 25 bar at operating temperatures from -20°C to 120°C
Maximum working pressure: 20-25 bar at operating temperatures from -20°C to 300°C

Extension 1/2''x3/8'' galvanized cast iron reduction is made in accordance with EN10242

The surface is coated with hot-dip galvanizing which protects against corrosion and weathering.

The galvanized cast iron fittings have R conical external threads, and Rp cylindrical internal threads, according to ISO 7/1.

Rating: the connectors have a bumped up size.

Avaliable sizes: 1/8'' - 1/4'' - 3/8'' - 1/2'' - 3/4'' - 1'' - 1 1/4'' - 1 1/2'' - 2'' - 2 1/2'' - 3'' - 4''
Galvanized iron fittings do not come in metric sizes.

The group of galvanized cast iron fittings includes: elbows, reduction elbows, tees, reduction tees, reductions, short bends, long bends, couplers, reduction couplers, plugs, plugs with rim, plugs without rim, T9 plugs, screw fittings with female threads, nipple screw fittings, screw fittings with gasket, conical screw fittings, straight nipples, reduction nipples.

We also offer cast iron fittings without zinc plating (uncovered)
