Nipple 3/8'' - M22x1,5 connector

Availability: on sale
Dispatched within: 24 hours
Gross price: €2.20
incl. 23% TAX, excl. shipping costs

Regular price:

2.20
Net price: €1.79
excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list
Pin It

Description

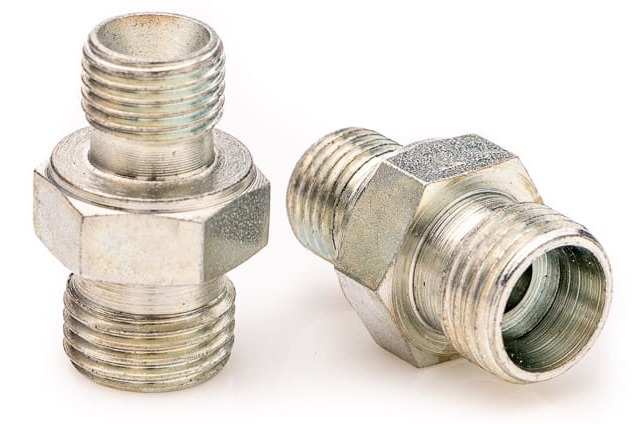

Nipple 3/8''- M22x1,5 connector

  • external threads: 3/8'' - M22x1.5
  • thread diameter of 3/8'' is 16.3 ÷ 16.6mm (thread type: BSP, otherwise known as, inch, straight cylindrical, G, Rp)
  • thread diameter of M22x1.5 is 21.6 ÷ 21.9mm (thread type: metric)
  • gasket on the side: 3/8''
  • material: steel
  • coating: galvanized steel
  • high pressure hydraulic connector
  • precise workmanship
  • application: industry, agricultural, construction machinery, lifting and transportation equipment



Other name: Nipple 3/8'' - M22x1,5 connector GZ reduction nipple, adapter straight screw high pressure reduction nipple

Information


Nipple 3/8'' - M22x1,5 connector - belongs to the threaded fittings "high-pressure fittings". Nipples are available in all inch and metric sizes. They withstand high pressures. They guarantee safety and durability of the installation. The nipple has a 60-degree cone in the center. The connection of two fittings with such a cone further seals the installation.

Other dimensions are also available, and we offer nipples/spigots:

  • straight; reducing
  • double-threaded; single-threaded
  • material: carbon steel, stainless steel
  • coating: uncoated; galvanized, hot-dip galvanized, weldable
  • thread type: metric "M" - inch "G" - BSP - BSPP - BSPT - NPT - UN - UNF - JIC - Rc - Rp - straight - tapered
  • shape: hexagonal; round
  • with certificate 3.1, with PZH certificate
  • non-standard - according to customer's drawing

More information about fittings and nipples you may find here>>

Our offer includes also nipples in other sizes. If you have any questions contact usCall 63/2614202 or send an inquiry to email: biuro@polberis.pl

If you want to know how much you will pay for transport to your country. Write us an email: biuro@polberis.pl. We will send you an offer. You have a European VAT number and don't want to pay TAX. Write to us for an offer. Please free feel to contact us for any information.

Technical data

Material Carbon steel
Connection 1 3/8"
Thread type – Connection 1 BSP / G / Rp / Rc thread
Connection 2 M22
Thread type – Connection 2 Metric thread
