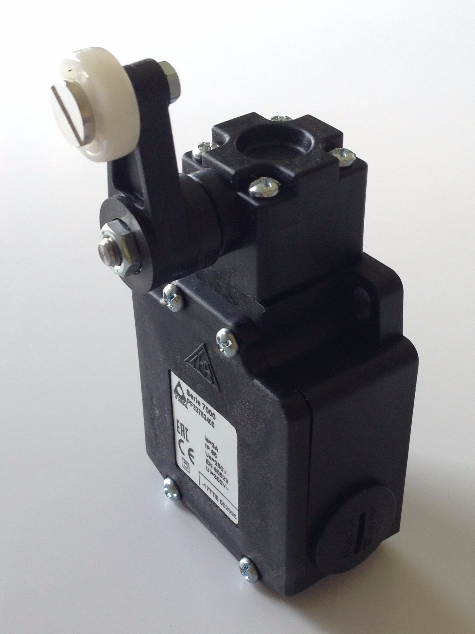

Limit Switch PF33782400 Series 7000 IP65 TER
Regular price:
Regular price:
product unavailable
add to wish list
Description
Limit Switch PF33782400 TER
- Series 7000
- Ie = 3A
- IP65
- Ue = 250V~
- EN 60529
- Ui = 300V~
- The limit switch is equipped with a PRSL0036XX contact
Information
Standard Limit Switches (Series 7000) are designed for controlling overhead cranes, hoists and machine tools. They operate as auxiliary controllers for electric motors through power interfaces such as contactors or PLC controllers.
Both the housing and the head of the limit switches are made of thermoplastic material (glass-fibre reinforced nylon). The materials and components provide high resistance and durability as well as protection against water and dust.
The limit switches are equipped with snap-action switches 1NO + 1NC or slow-action switches 1NC. All switches are of the positive opening type, making them suitable for safety functions.
Available Options
- Plunger, plunger with ball and roller, plunger with lever and roller
- Flexible twisted lever
- Rotary shaft with adjustable rod
- Rotary shaft with adjustable roller lever
- Rotary shaft with single or double roller lever
- Rotary shaft with rigid or spring rod
Compliance
- Compliance with Community Directives: 2006/95/EC, 2006/42/EC
- Compliance with Standards: EN 60204-1, EN 60947-1, EN 60947-5-1, EN 60529
- Storage temperature: -40°C / +70°C
- Operating temperature: -25°C / +70°C
- Protection rating: IP65
- Insulation class: Class II
- Cable entry: M20 cable gland
- Operating frequency: 3600 operations/hour max.
- Operating position: any
- Certification: CE
Contact Elements
- Type: PRSL0036XX – single snap-action switch 1NC + 1NO
- Type: PRSL0037XX – single slow-action switch 1NC
- Utilization category: AC15
- Rated operational current: 3A
- Rated operational voltage: 250V AC
- Rated thermal current: 10A
- Rated insulation voltage: 300V AC
- Mechanical life: 1,000,000 operations
- Connections: terminal block, EN 50013
- Conductors: 1 × 2.5 mm², 2 × 1.5 mm²
- Tightening torque: 0.8 Nm
- Certification: CE
More information about buttons and pendant control stations you may find here>>
We offer a wide range of limit switches, control stations, remote controls and spare parts for them. If you can't find the product you are looking for - send us an inquiry by e-mail: biuro@polberis.pl. We will be happy to prepare an offer for you. If you have any questions contact us.
If you want to know how much you will pay for transport to your country. Write us an email: biuro@polberis.pl. We will send you an offer. You have a European VAT number and don't want to pay TAX. Write to us for an offer. Please free feel to contact us for any information.
