Pendant control station PF27740001 PCP TER

Kaseta Sterownicza PF27740001 PCP TER.jpg

Availability: on sale

Dispatched within: 2-3 tygodnie

Gross price: €244.26

incl. 23% TAX, excl. shipping costs

Regular price:

244.26

Net price: €198.58

excl. 23% TAX, excl. shipping costs

Regular price:

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 9863

Description

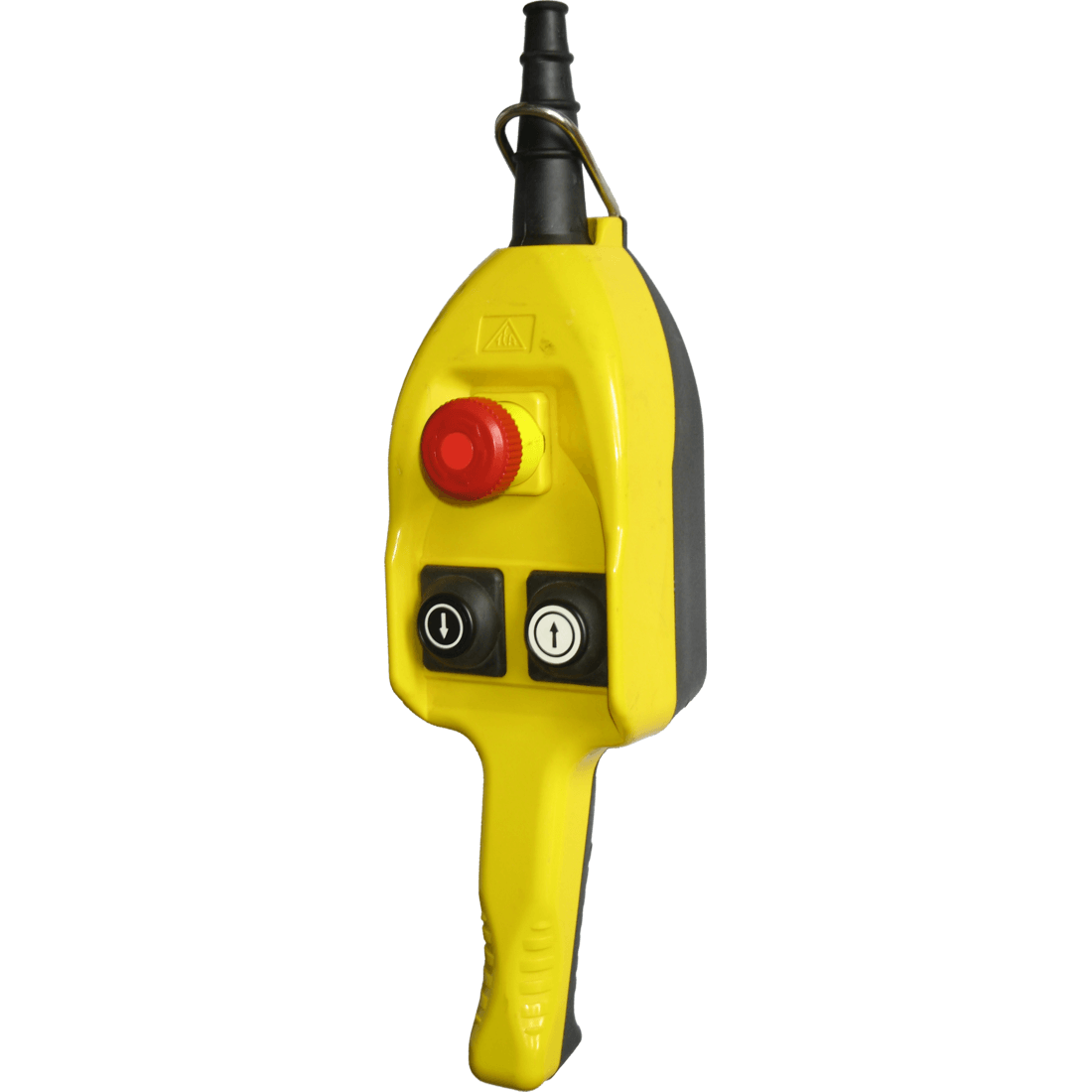

Pendant control station PF27740001 PCP TER

symbol: PF 27740001
series: PCP
built-in contacts: 1x PRSL0461PI (2x (2NO+BK>>1NC+1NO); PRSL0508PI (3NC)
working temperature: -25°C/+70°C
storage temperature: -40°C/+70°C
EN 60204-1, EN 60947-1, EN 60947-5-1, (EN 60947-3 pro PCP), EN 60529, EN 418, EN 50013, IEC 536
producer: TER

Information:

Still available but currently withdrawn from sale.

Hanging control pendant used in a wide range of industrial machines and devices.

The PCA control pendant is used as an auxiliary controller, while the PCP control pendant can be used for direct control.

Benefits:

durable and solid structure;
designed for harsh operating conditions, with an emphasis on the industrial area;
rubber buttons protect the device against the ingress of water and dust, and prevent the buttons from being blocked;
buttons resistant to aging, abrasion and wear.
compact size and ease of use
possibility to choose any symbols on the buttons (according to the catalog card)

The PCA / PCP remote control can be equipped with two dustproof rubber buttons and a safety button (mushroom). The buttons have disks with symbols.

The STOP button (mushroom) complies with the EN 418 standard and is equipped with an NC (normally closed) contact.

Usage not recommended:

The PCA / PCP cartridge is not suitable for use in potentially explosive environments.
Oils, acids, or solvents can damage the equipment. Do not use them for cleaning.
Do not lubricate contacts and switches.

Technical information:

working temperature: -25°C/+70°C
storage temperature: -40°C/+70°C
EN 60204-1, EN 60947-1, EN 60947-5-1, (EN 60947-3 pro PCP),EN 60529, EN 418, EN 50013, IEC 536
isolation: IP 65
included: rubber cable cover Ø 6,5 ÷ 19 mm
size: 350mm x 90mm x 95mm
brass connection terminals
stainless steel return springs
lifetime of buttons: 1,000,000 operations
sign: CE
producer: TER
origin: Italy

Pendant control station PF27740001 PCP TER

other name: remote control pendant control station pendant control station ter auxiliary control

The construction and all spare parts for TER control units are presented in the catalog cards. Datasheets are available on our website.

We have spare parts for TER control boxes in stock, with the possibility of shipping within 24 hours.

More information about pendant control stations you may find here
