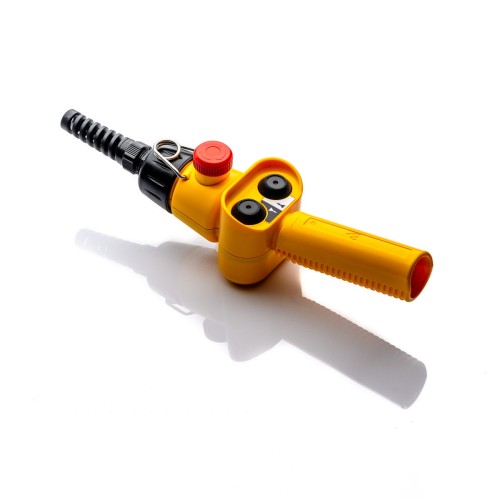

Pendant control station PF39030003 CHARLIE TER
Regular price:
Regular price:
product unavailable
add to wish list
Description
Pendant control station PF39030003 CHARLIE TER
- series: CHARLIE
- symbol: PF39030003
- storage temperature: -40oC/+70oC
- working temperature: -25oC/+70oC
- level of security: IP 65
- cable input: cable gland PG20
- working position: any
- rated voltage (Ue): 250V
- rated current (Ie): 3A
- IThe= 10A
- AC 15
- rated insulation voltage (Ui): 500V
- built-in contacts PRSL1002PI, PRSL1001PI

other name: remote control cassette control station pedant control station ter auxiliary control
Pendant control station PF39030003 CHARLIE TER
Information:
Hanging control panel for auxiliary control with compact dimensions. Modern and intuitive design, developed by an industrial design studio based on technical specifications, futurism and ergonomics.
Easy to operate and designed to reduce the time and cost of installation downtime and maintenance.
Properties:
- Reduced installation and wiring time and costs: switches mounted inside the control panel without screws, all connectors facing the cable entry and screws in the opposite direction to facilitate wiring.
- Closing the housing and cover with a threaded nut for easy access to internal components without the need for tools.
- Mushroom emergency button for emergency stop according to EN 418.
- Mechanical operating time of switches: 1 million operations.
- Protection degree: IP65.
- Resistant to extreme temperatures: from -25 ° C to + 70 ° C
- The materials and components used are resistant to weather conditions and guarantee protection of the device against water and dust penetration
- Application: automatic car washes, automatic strapping and palletizing machines, aviation platyps, trucks (e.g. waste disposal)
More information about pendant control stations you may find here
We offer a wide range of limit switches, control stations, remote controls and spare parts for them. If you can't find the product you are looking for - send us an inquiry by e-mail: biuro@polberis.pl. We will be happy to prepare an offer for you. If you have any questions contact us.
If you want to know how much you will pay for transport to your country. Write us an email: biuro@polberis.pl. We will send you an offer. You have a European VAT number and don't want to pay TAX. Write to us for an offer. Please free feel to contact us for any information.
