Short bend 1 1/2'' cast iron 90deg
Regular price:
Regular price:
product unavailable
add to wish list
Description

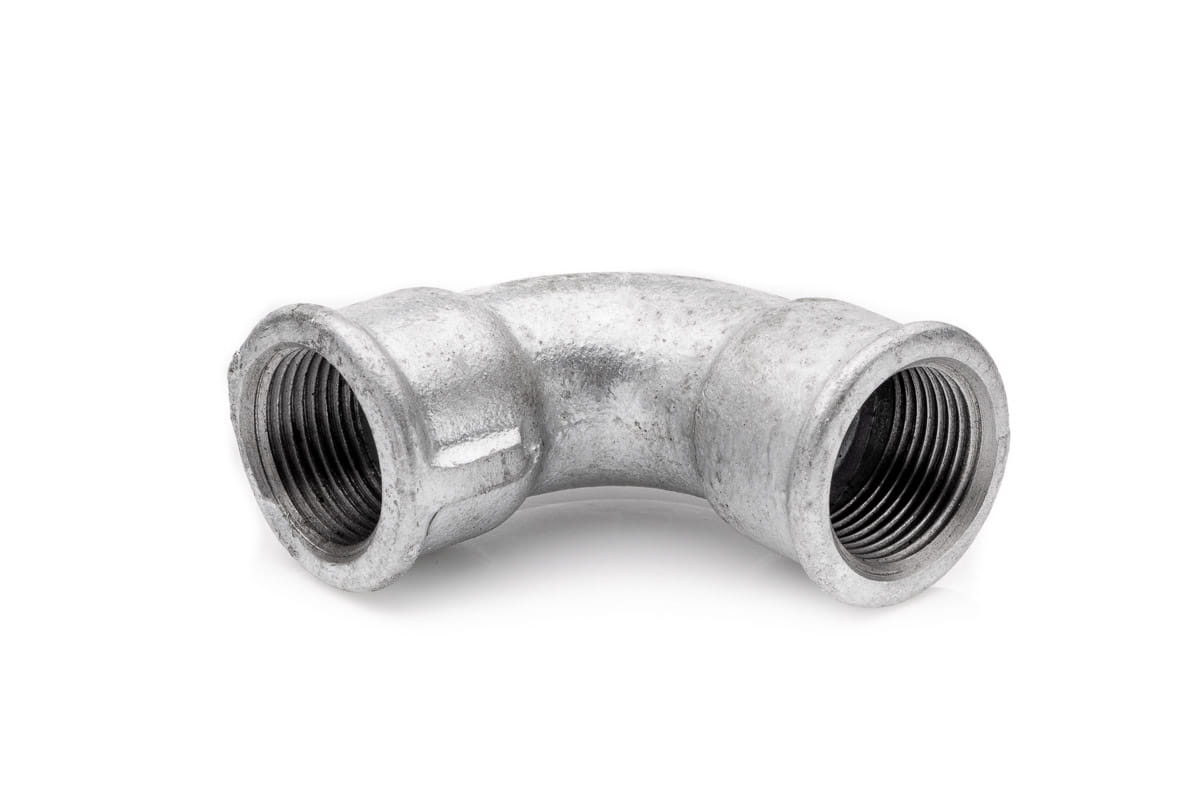

Short bend 1 1/2'' cast iron 90deg.
- size: 1 1/2'' (thread diameter 44,8 ÷ 45,3mm)
- material: cast iron
- angle: 90 degrees
- female threads
- other name: nr 2a
- number PN / ISO: D1
- length: short
- application: plumbing, industry, central heating, water systems
Other name: Short bend 1 1/2'' cast iron 90deg cast iron elbow galvanized elbow bend 90 degree connector equal screw adapter cast iron connector galvanized FT
Information about short bend cast iron
Short bend 1 1/2'' cast iron 90deg – is used in all industries, in central heating systems and for quick connection and disconnection of hydraulic systems. Fittings are used to connect fittings, pumps, industrial equipment, pipes, fittings, etc. The main advantage of galvanized cast iron fittings is the price and general availability. They are used in installations with small requirements, for cold water and hot water.
Fttings are made of galvanized cast iron. Their surface is protected by hot-dip galvanizing.
What is the Construction of a Short Bend?
The 1 1/2'' Short Bend Cast Iron Galvanized 90 Degrees GW is manufactured in accordance with the EN10242 standard.
The surface is covered with hot-dip zinc, which protects against corrosion and weather conditions.
Galvanized cast iron fittings have external tapered threads (R) and internal cylindrical threads (Rp), compliant with ISO 7/1 standards.
Applications bend cast iron:
- In Water Supply Networks: Short galvanized cast iron bends are used to connect pipes in water supply systems, allowing for easy changes in the direction of water flow.
- Sewage Systems: Bends are used in sewer installations to direct the flow of sewage.
Galvanized cast iron fittings are made in accordance with EN10242.
The surface is coated with hot-dip galvanizing which protects against corrosion and weather conditions.
The galvanized cast iron fittings have R tapered external thread, and Rp cylindrical internal threads, in accordance with ISO 7/1.
Rating: fittings have a stamped size.
- Available sizes: 1/8'' - 1/4'' - 3/8'' - 1/2'' - 3/4'' - 1'' - 1 1/4'' - 1 1/2'' - 2'' - 2 1/2'' - 3'' - 4''
- Galvanized iron fittings do not come in metric sizes.
The group of galvanized cast iron fittings includes: elbows, reduction elbows, tees, reduction tees, reductions, short bends, long bends, couplers, reduction couplers, plugs, plugs with rim, plugs without rim, T9 plugs, union fittings with female threads, nipple unionfittings, union fittings with gasket, conical union fittings, straight nipples, reduction nipples.
More information about bends you may find here >>
Our offer includes also bends and elbows cast iron in other sizes. If you have any questions contact us. Call 0048 632614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
