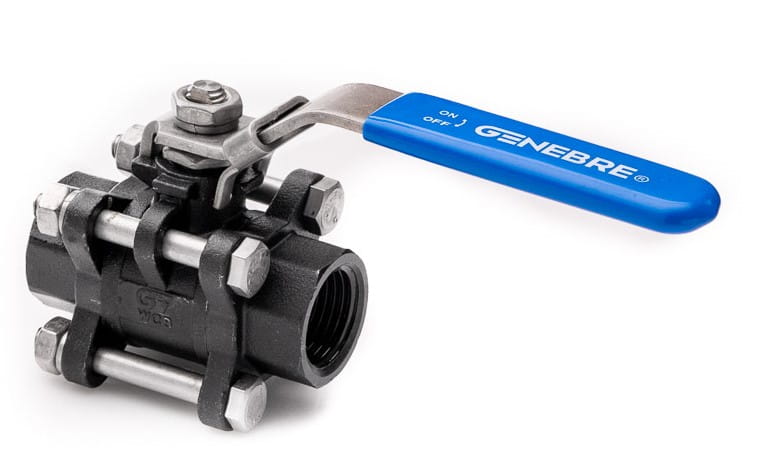

Ball valve 1/2'' NPT 1000WOG carbon steel

Ball valve 1/2'' NPT 1000WOG carbon steel

• size: 1''
• material: carbon steel
• medium: WOG i.e. water oil gas
• thread: NPT
• pressure: 63 bar
• max. working pressure: 1000 p.s.i.
• operation: lever
• handle color: blue
• operating temperature –25 ºC + 180 ºC.
• seat/seal: PTFE
• ball/pin: 316 stainless steel
• lever with locking system
• solid workmanship
• quality control carried out strictly in accordance with applicable standards
• application: in industry, agriculture, household
•

Other name: F-F Threaded Equal Port Ball Valve Blue Handle Ball Valve 1/2" NPT 1000WOG Carbon Steel Threaded 1000 WOG CS DN15 NPT 63bar

The operating pressure of a ball valve depends on the valve's operating temperature. They should be read from the chart below, i.e.:

At an operating temperature of -20ºC, the valve will withstand a pressure of 1000 p.s.i. i.e. 69bar
At an operating temperature of +40ºC, the valve will withstand a pressure of 1000 p.s.i. i.e. 69 bar
At an operating temperature of +100ºC, the valve will withstand a pressure of 600 p.s.i. i.e. 41.4 bar
At an operating temperature of +150ºC, the valve will withstand a pressure of 350 p.s.i. i.e. 24.13 bar

This ball valve model is suitable for installations with high requirements. Withstands a wide range of temperatures. The PTFE Teflon seal allows safe flow of most media.
