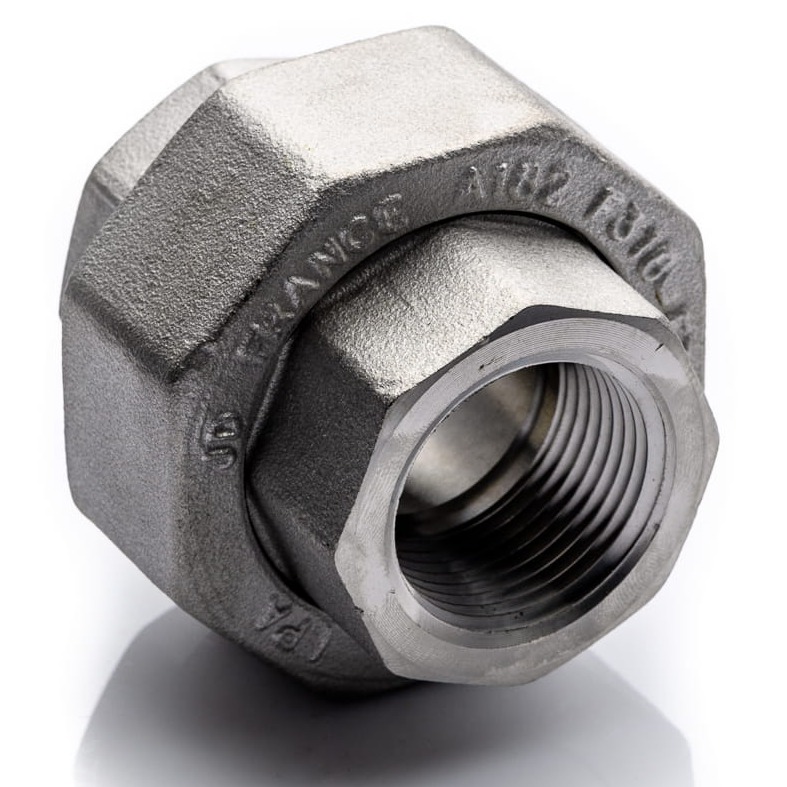

Union 1/2'' NPT 304L cl.3000

Śrubunek 1/2'' NPT 304L kl.3000 holender stożkowy wysokociśnieniowy gwinty wewnętrzne UNION PED FF.jpg

Availability: on sale

Dispatched within: 24 hours

Gross price: €49.62

incl. 23% TAX, excl. shipping costs

Regular price:

49.62

Net price: €40.34

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 9666B

Description

Union 1/2'' NPT 304L cl.3000

size: 1/2'' (thread diameter 'D" is 18,3 ÷ 18,7mm)
thread: NPT (conical)
material: acid-resistant 304L stainless steel
pressure class: 3000Psi (206bar)
application: industry, metallurgy, refineries, boilers, tanks
use: for high pressure, for high temperature
3.1 certificate on request (free of charge)
origin: European Union

A [mm] = 27,69

C [mm] = 3,73

D [mm] = od 17,06 do 17,86

G [mm] = 3,68

H [mm] = 14,00

L [mm] = 49,02

Other name: Union 1/2'' NPT 304L cl.3000 conical tapered union for high pressure high temperature internal female threads acid-resistant stainless steel 304L UNION PED FF

Information

Union 1/2'' NPT 304L cl.3000 – is a two-part fitting used for quick connection and disconnection of hydraulic systems. It has a conical seal in the middle, praised by plumbers because it does not require additional seals.

Steel 304 / 304L – a standard corrosion-resistant stainless steel (SS 304L). The most versatile and widely used stainless steel, available in a wide range of products. It has excellent forming and welding properties.

Advantages of 304 / 304L: Non-magnetic steel, excellent ductility, excellent impact strength, excellent weldability, good strength, wide operating temperature range.

Application: in corrosive conditions, chemical industry, food industry, architecture, automotive

Other name: 1.4301 1.4306 1.4307 AISI304L 0H18N9 X5CrNi18-10 A2 acc. to norm PN-54/H-86020 (replaced by PN-EN 10088)

More information about unions can be found here>>

Our offer includes a wide range of high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Shape	Straight
Size	1/2''
Material	Stainless Steel
Connection Type 1	NPT Thread
Connection Type 2	NPT Thread
