Sockolet SW 2''x8''-10'' 304L cl. 3000

Availability: last items

Dispatched within: 24 hours

Gross price: €108.58

incl. 23% TAX, excl. shipping costs

Regular price:

108.58

Net price: €88.28

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor: Ganpat

Product code: 10581V

Description

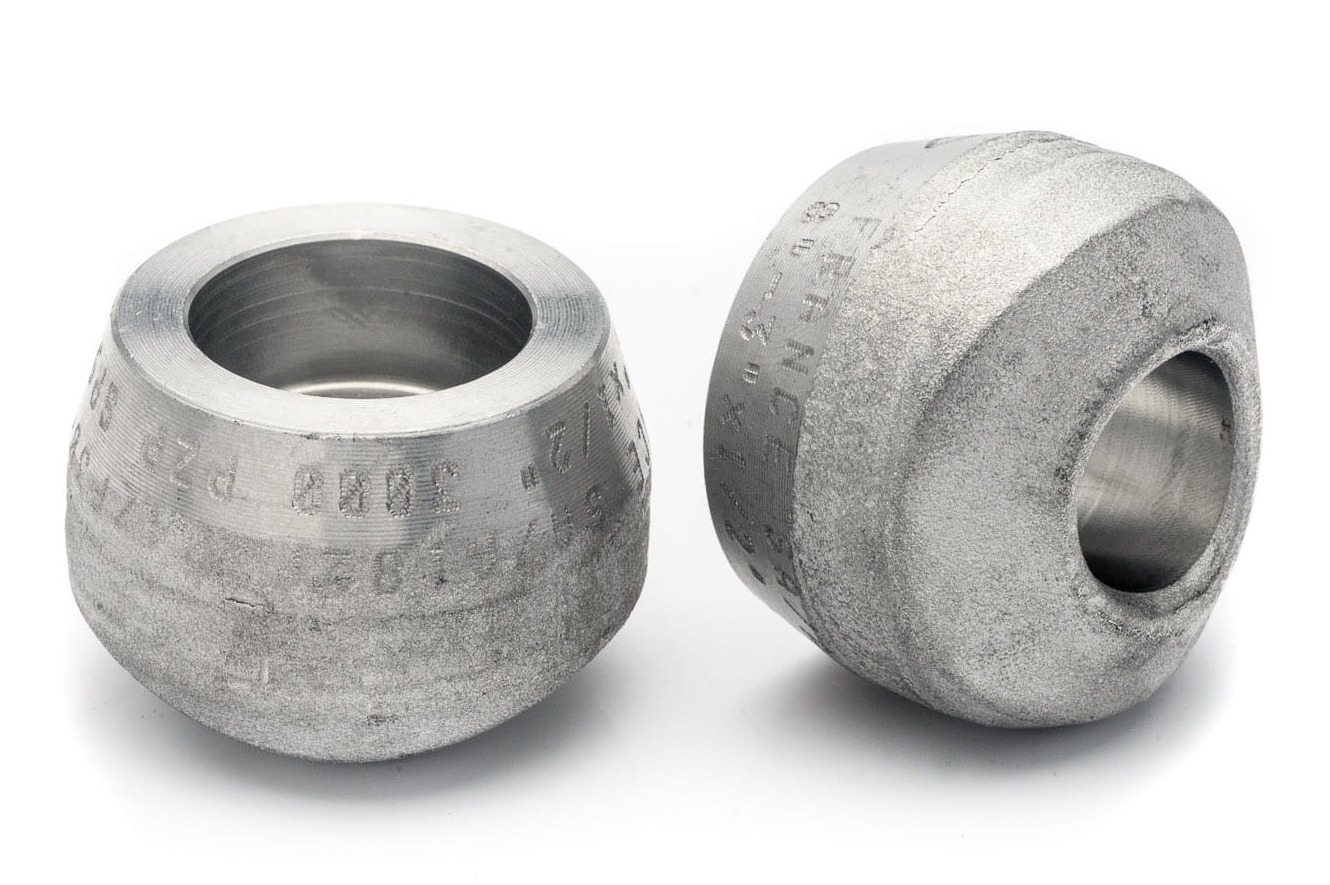

Sockolet SW 2''x8''-10'' 304L cl. 3000

size: 2''x8''-10''
sockolet allows to join pipe 2'' (60,3mm) with pipe 8''-10'' (219,10mm-273,00mm)
grade: 304L stainless steel
weldable steel
tube socket weld: SW socket weld
pressure class: 3000lbs (i.e. 206bar)
dimensions according to MSS SP 97
sockets application: high-pressure, high-temperature industrial installations
3.1 certificate on request (free of charge)

B = pipe entry 2'' (60,3mm)

A = pipe entry 8''-10'' (219,10mm-273,00mm)

Other name: Sockolet SW 2''x8''-10'' 304L cl. 3000 SW stainless steel 1.4404 socket weld SW branch for welding and joining pipes inox acid resistant acid resistant acid resistant steel

Information

Sockolet SW 2''x8''-10'' 304L cl. 3000 - steel tapping SW-OUTLET belongs to the group of "high-pressure fittings", where the pipe is welded in a groove (pocket). The pocket is welded to the pipe to form an airtight installation structure. The Socket Weld (SW) system guarantees the safety, durability and inseparability of the installation. With SW fittings, we can easily select the installation pressure. Each fitting is stamped with size, grade, melt and pressure class. All SW fittings are certified 3.1.

Available options:

material: carbon steel SA 105 / carbon steel for low temperatures (up to -50 stop). A350 LF2 CL.1
material: stainless steel 304 / SA A182 / F304/L / TP304 / TP304L / A312 / 316 / SA A182 / F316L / F321 / F347
threaded, socket weld (SW)
3.1 certified goods
Available sizes: 1/8'' - ¼'' - 3/8'' - ½'' - ¾'' - 1'' - 1 ¼'' - 1 ½'' - 2'' - 2 ½'' - 3'' - 4''

Application: refineries, metallurgy, marine industry, high pressure installations, high requirements installations, for high temperature A105, for low temperature LF2, boilers, pressure vessels, hydraulic installations, outdoor installations, oil and gas industry.

Marking: sockolet has stamped size, pressure class, grade, melt number and not always thread type. Markings are made in accordance with applicable standards.

More information about Sockolet and olets you may find here >>

Our offer includes also weldolets in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Branch Fitting Type	Sockolet
Material	Stainless Steel
Size	2''
Connection Type	Weld End
