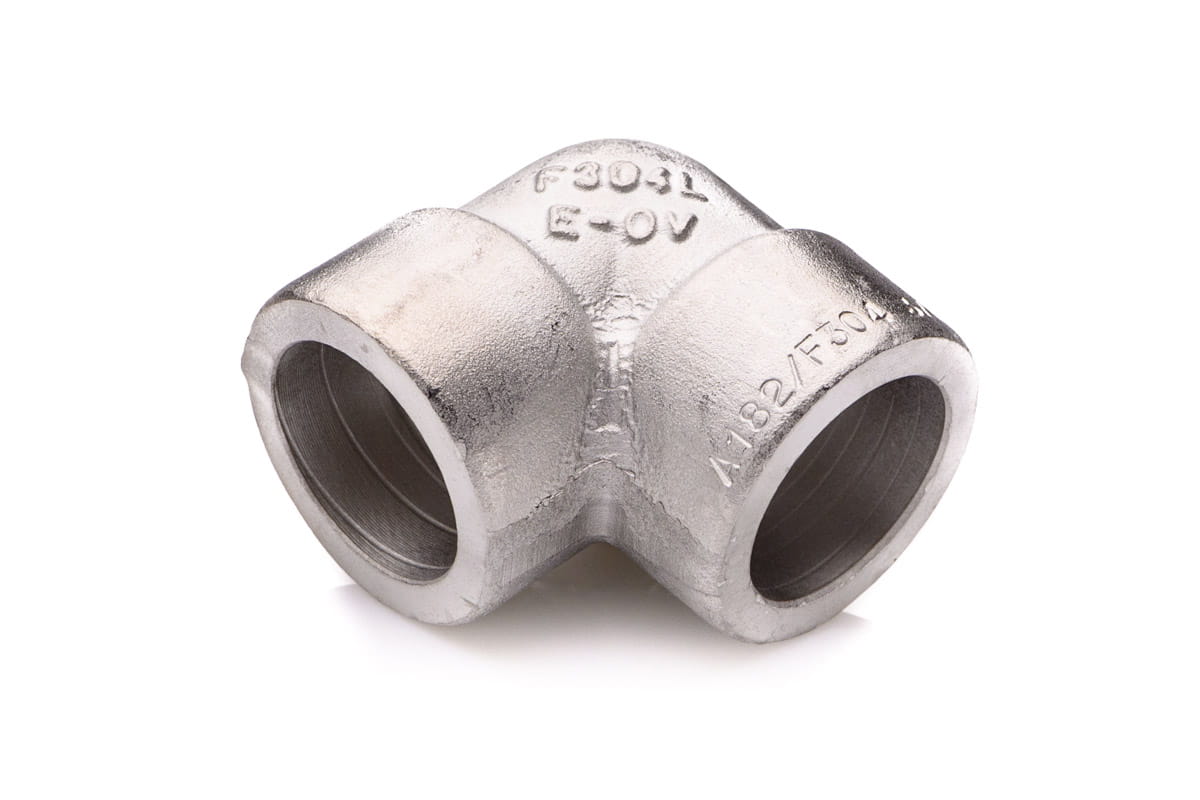

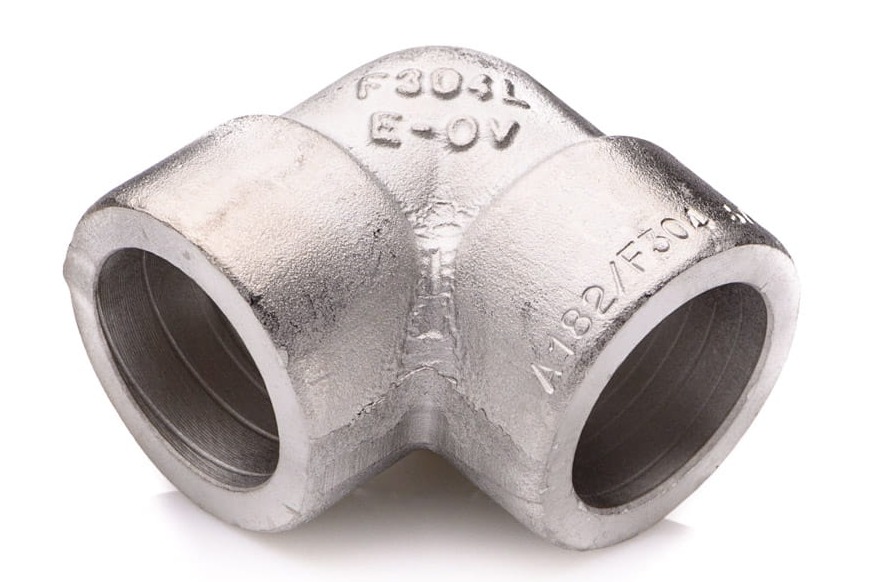

Elbow 2" Socket Weld 304L Class 3000 90°

Elbow 2" Socket Weld 304L Class 3000 90°

• size: 2"
• angle: 90°
• type: Socket Weld (SW)
• pressure class: 3000 lbs (206 bar)
• material grade: 304L stainless steel suitable for welding
• Socket Weld elbow with socket connection
• application: high-pressure industrial installations, high-temperature installations, refineries, marine industry, food industry, steel industry, demanding industrial installations, ships, hydraulic systems
• Socket Weld fittings manufactured according to ANSI B16.11
• 3.1 certificate available on request (free of charge)
• origin: European Union

Alternative Name: Socket Weld Elbow 2" 304L Class 3000 90° Socket Elbow Welding Elbow Socket Fitting Inox Stainless Steel Elbow

Information about the Socket Weld Elbow

Elbow 2" Socket Weld 304L Class 3000 90° is a high-pressure welding fitting.

Socket Weld (SW) fittings belong to the group of high-pressure fittings where the pipe is welded into a socket. The welded socket creates a leak-tight piping system. The Socket Weld (SW) system provides safety, durability and permanent joint integrity. Socket Weld fittings make it easy to select the correct pressure class. Every fitting is marked with the size, material grade, heat number and pressure class. All SW fittings are available with a 3.1 certificate.

Advantages: the pipe does not require beveling before welding. Socket Weld fittings require no special preparation and are an excellent alternative to threaded fittings.

Limitations: not recommended for radioactive installations.

Available sizes: 1/4" – 3/8" – 1/2" – 3/4" – 1" – 1 1/4" – 1 1/2" – 2" – 2 1/2" – 3" – 3 1/2" – 4"

304L is the standard corrosion-resistant stainless steel (SS304L). It is the most versatile and widely used stainless steel grade and offers excellent forming and welding properties.

Applications: corrosive environments, chemical industry, food industry, architecture and automotive industry.

Alternative material designations: 1.4301, 1.4306, 1.4307, AISI304L, 0H18N9.

Advantages of 304L: non-magnetic stainless steel, excellent ductility, outstanding impact strength, excellent weldability, good mechanical strength and a wide operating temperature range.

More information about socket weld fittings you will find here>>

Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
