Socket Weld Elbow 2'' 45° A105 Class 6000

Kolano 2" socket weld A105 kl.6000 45st.

Availability: on sale

Dispatched within: 14 days

Gross price: €32.00

incl. 23% TAX, excl. shipping costs

Regular price:

32.00

Net price: €26.02

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 13377A

Description

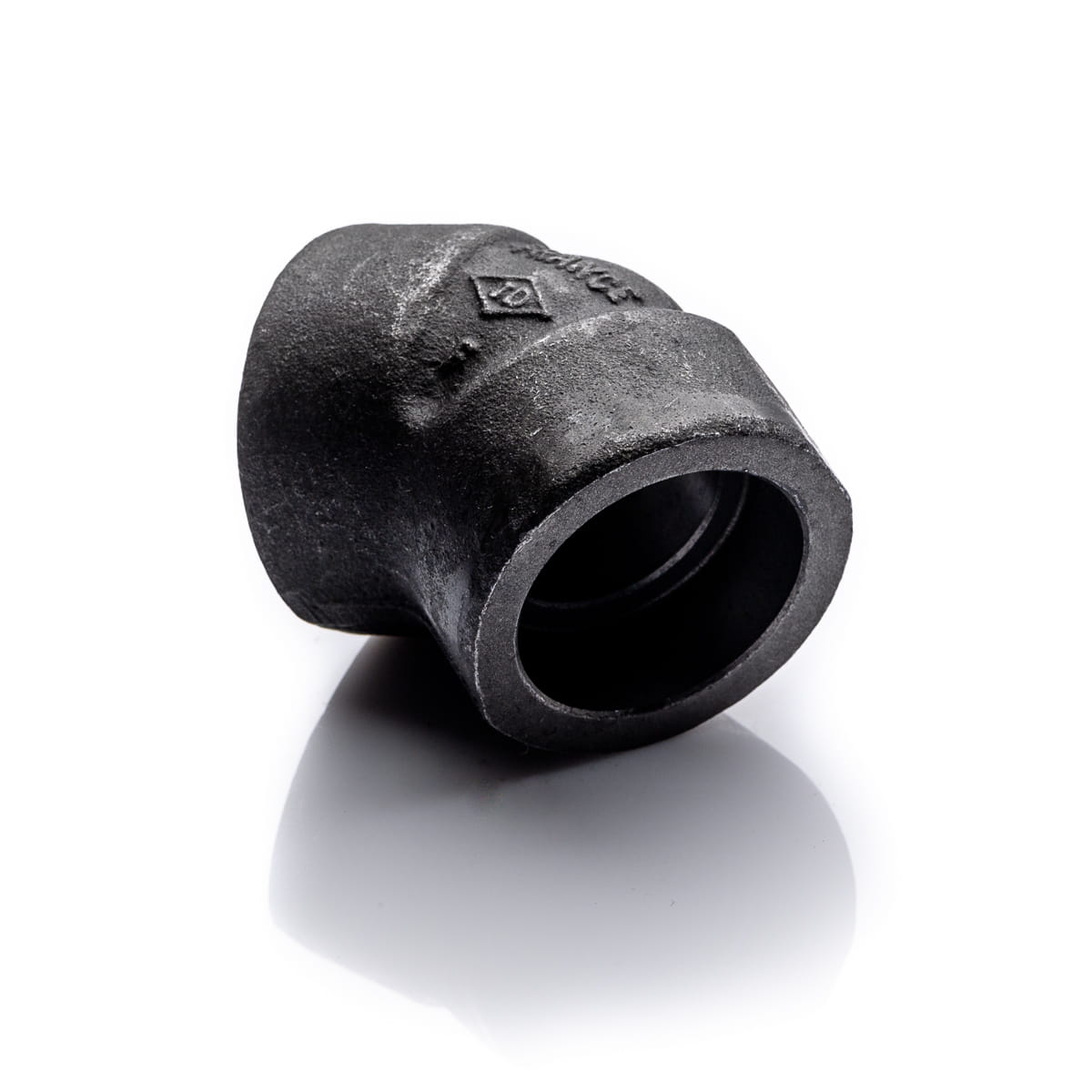

Socket Weld Elbow 2'' 45° A105 Class 6000

Size: 2''
Fits DN50 pipe (60.3 mm OD)
Connection: Socket Weld (SW)
Angle: 45°
Pressure class: Class 6000 (413 bar)
Material: A105 carbon steel (equivalent to P245GH, P265GH, P285GH)
Socket weld fitting
Excellent weldability
Applications: pressure systems, high-temperature installations, boilers, ships, heavy industry, marine industry, central heating systems
3.1 material certificate available on request (free of charge)
Origin: European Union

Socket diameter (B): 2'' (61.2–61.7 mm)

Alternative Name: Socket Weld Elbow 2'' 45° A105 Class 6000, socket elbow, SW elbow, socket weld fitting, forged carbon steel elbow, weld socket elbow.

Information

Socket Weld Elbow 2'' 45° A105 Class 6000 belongs to the family of high-pressure forged Socket Weld fittings. The pipe is inserted into the socket before welding, creating a strong, leak-tight joint. The Socket Weld design simplifies alignment during welding and provides excellent mechanical strength for high-pressure service.

Each fitting is permanently marked with its size, material grade, heat number, and pressure class. All Socket Weld fittings are available with a 3.1 material certificate.

A105 Carbon Steel

ASTM A105 is a forged carbon steel widely used for piping components, flanges, and forged fittings operating at ambient and elevated temperatures. It offers excellent machinability, weldability, and mechanical strength for pressure applications.

Equivalent material grades: 1.0460, C22.8, P245GH, P265GH.

Applications

Oil and gas pipelines
Petrochemical plants
Power plants
Marine industry
Boilers
Central heating systems
High-pressure industrial piping
Pressure vessels

We also offer Socket Weld elbows in other sizes and pressure classes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Socket Weld Elbow 2'' 45° A105 Class 6000 is also available in other sizes from our product range.

Learn more about Socket Weld fittings here >>

Technical data

Bend Angle	90 Degrees
Radius	Other
Steel Grade	A105
Material	Carbon Steel
Size	DN50 ~ 2'' ~ 57mm ~ 60,3mm

Safety
