SOCKOLET 3/4'' x 2''-80'' SW A105 Class 3000 OUTLET

SOCKOLET 3/4'' x 2''-80'' SW A105 Class 3000 OUTLET

• Size: 3/4'' x 2''-80''
• Allows connection of 3/4'' pipe to pipes from 2'' to 80''
• Material: A105 carbon steel (boiler grade)
• 'Pressure class: 3000 lbs
• Weldable steel

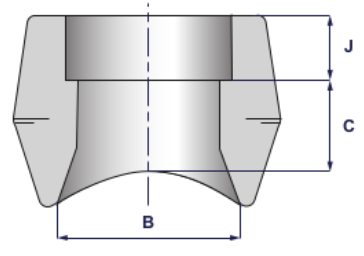

• Dimensions according to MSS SP 97
• Application: high-pressure industrial installations, high-temperature systems
• 3.1 certificate available on customer request (free)
• Origin: European Union

Also known as: SOCKOLET 3/4'' x 2''-80'' SW A105 Class 3000 OUTLET, steel branch, boiler grade A105 fitting, pressure 3000, SW socket weld

Information

SOCKOLET 3/4'' x 2''-80'' SW A105 Class 3000 OUTLET - a steel SW-OUTLET branch fitting belonging to “high-pressure fittings,” where the pipe is welded into the socket (pocket). The welded pocket creates a leak-proof installation. The Socket Weld (SW) system guarantees safety, durability, and reliability. SW fittings make it easy to select the installation’s pressure rating. Each fitting is marked with size, material grade, melt number, and pressure class. All SW fittings come with 3.1 certificates.

Available Options:

• Material: carbon steel SA 105 / low-temperature carbon steel (down to -50°C) A350 LF2 CL.1
• Material: stainless steel 304 / SA A182 / F304/L / TP304 / TP304L / A312 / 316 / SA A182 / F316L / F321 / F347
• Threaded
• Socket weld (SW)
• SW threaded
• Available sizes: 1/8’’ – 1/4’’ – 3/8’’ – 1/2’’ – 3/4’’ – 1’’ – 1 1/4’’ – 1 1/2’’ – 2’’ – 2 1/2’’ – 3’’ – 4''

Applications:

Refineries, steel mills, marine industry, high-pressure industrial installations, high-demand systems, high-temperature A105 applications, low-temperature LF2 applications, boilers, pressure vessels, hydraulic installations, outdoor installations, oil and gas industry.

Marking:

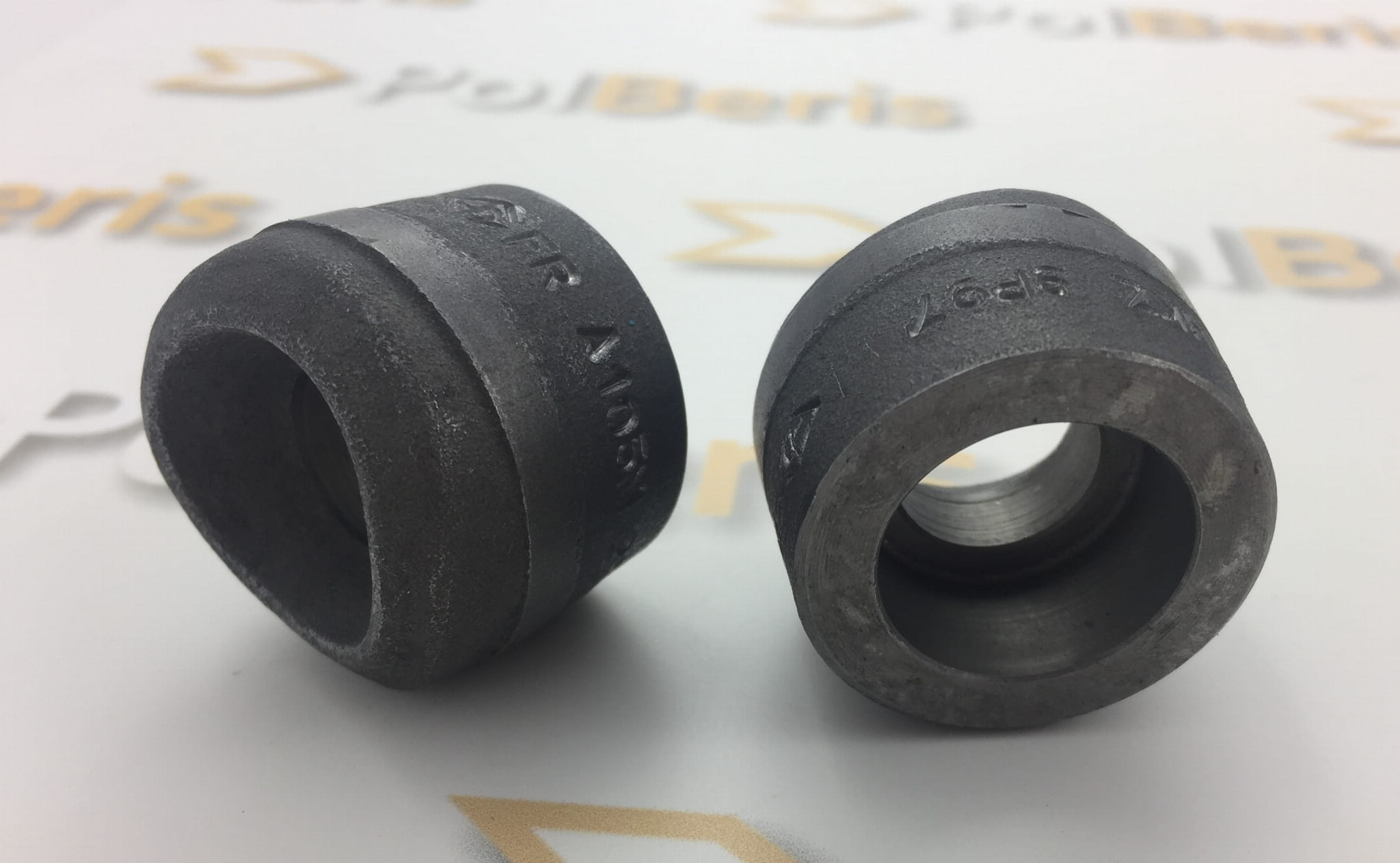

Each sockolet is marked with size, pressure class, material grade, melt number, and sometimes thread type. Marking complies with relevant standards.

Material Info:

A105 steel grade – a widely used carbon steel for pipelines, flanges, and fittings. Designed for ambient and higher temperatures and pressure installations. Good machinability, like any low-alloy steel. Weldable and reliable.

Properties similar to grades: 1.0460, C22.8, P245GH, P265GH, P285GH, S235JR

More information about Sockolet and olets you may find here >>
