Lap Joint Flange 4'' Class 150 316L ASME B16.5

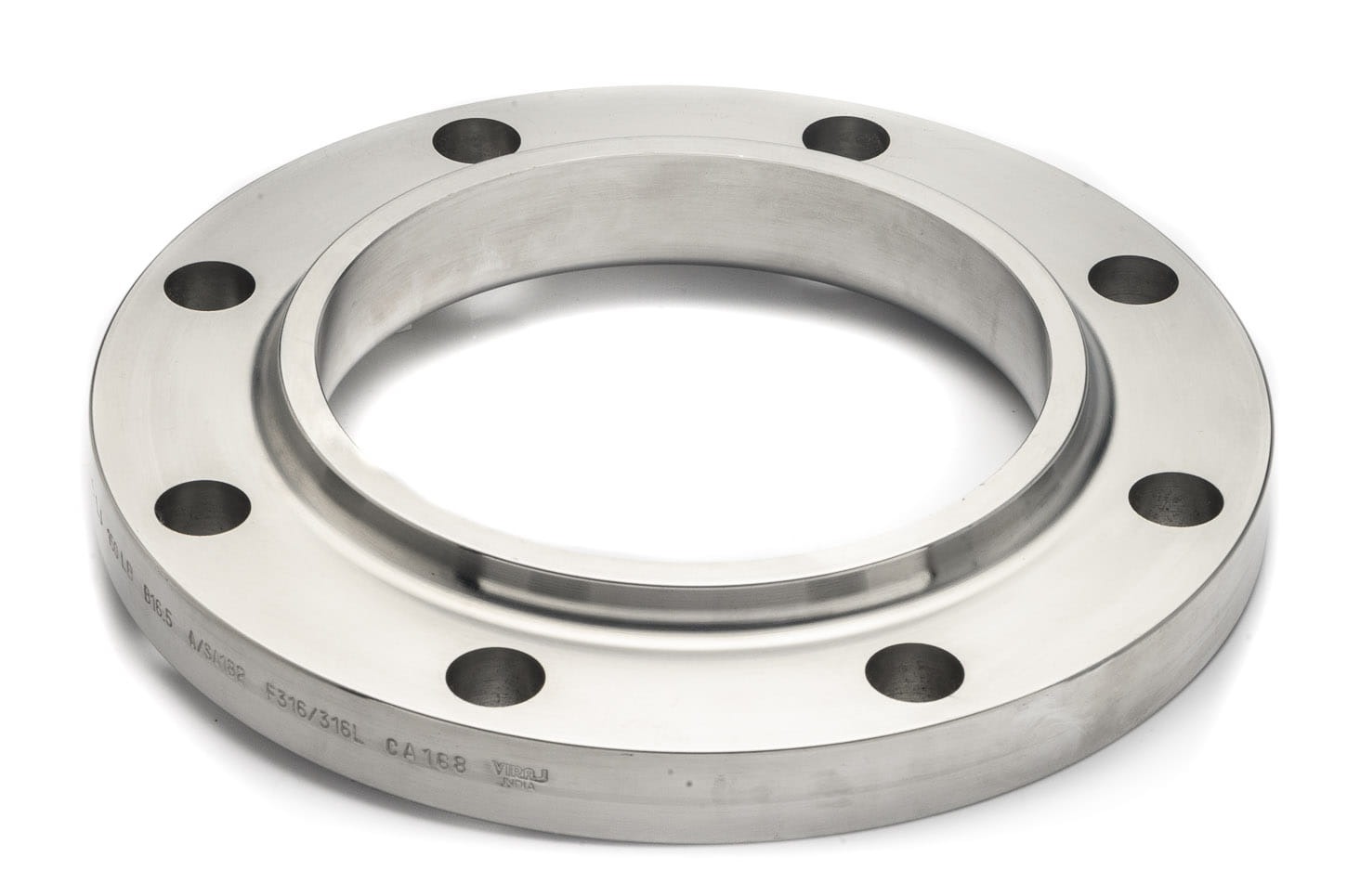

Kołnierz 4'' Lap Joint 150lbs 316L B16.5 przód

Availability: last items

Dispatched within: 24 hours

Gross price: €142.37

incl. 23% TAX, excl. shipping costs

Regular price:

142.37

Net price: €115.75

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12845B

Description

Lap Joint Flange 4'' Class 150 316L ASME B16.5

Size: 4''
Flange type: Lap Joint
Loose flange
Material: 316L stainless steel
Manufactured according to: ASME B16.5
Number of bolt holes: 8
Pressure class: Class 150

Kołnierz 6'' Lap Joint 150lbs 316L B16.5 tył

Alternative Name: Lap Joint Flange 4'' Class 150 316L ASME B16.5, loose flange, 1.4404 stainless steel lap joint flange, DN100 backing flange, stainless steel flange.

Information

Lap Joint Flange 4'' Class 150 316L ASME B16.5 is designed for use with stub ends (lap joint ends) in piping systems requiring frequent dismantling, inspection, or cleaning. The loose flange rotates freely around the pipe, making bolt hole alignment quick and easy during installation.

Advantages of Lap Joint Flanges

Easy alignment of bolt holes due to free rotation
The flange is not in direct contact with the process medium
Can be reused when replacing the stub end or piping
Ideal for systems requiring frequent maintenance

316 / 316L Stainless Steel

316 / 316L stainless steel is a highly corrosion-resistant austenitic stainless steel offering excellent weldability and formability. Compared with 304 stainless steel, it provides superior resistance to aggressive chemicals and marine environments.

Equivalent grades: DIN 1.4401, 1.4404, SS316, SS316L, AISI 316, AISI 316L.

Advantages of 316 / 316L Stainless Steel

Non-magnetic
Excellent ductility
Excellent impact toughness
Outstanding weldability
Good mechanical strength
Wide operating temperature range

We also offer lap joint flanges and stub ends in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Lap Joint Flange 4'' Class 150 316L ASME B16.5 is also available in other sizes from our product range.

Learn more about flanges here >>

Technical data

Manufacturing Standard	ASME Standards
Flange Type	Lap Joint
Steel Grade	316L ~ 1.4404
Material	Stainless Steel
Size	DN100 ~ 4'' ~ 108mm ~ 114,3mm
